Quick Details
-
Mounting Type:
-
easy
-
Description:
-
Photoelectric sensor switch
-
Model Number:
-
G139
-
Type:
-
Photoelectric sensor switch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Theory:
-
Optical sensor, Optical sensor
-
Output:
-
Switching Transducer, Switching Transducer
-
Usage:
-
Position Sensor
-
Sensor distance:
-
1m 5m 10m
Quick Details
-
Use:
-
Position Sensor
-
Series:
-
G139
-
Features:
-
Photoelectric sensor switch
-
Mounting Type:
-
easy
-
Description:
-
Photoelectric sensor switch
-
Model Number:
-
G139
-
Type:
-
Photoelectric sensor switch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Theory:
-
Optical sensor, Optical sensor
-
Output:
-
Switching Transducer, Switching Transducer
-
Usage:
-
Position Sensor
-
Sensor distance:
-
1m 5m 10m

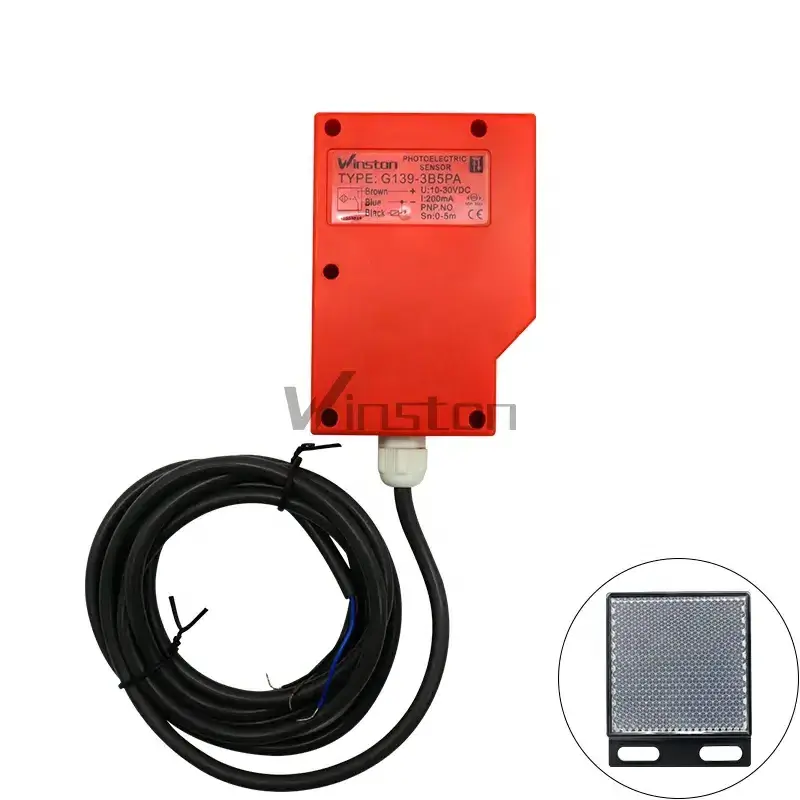

G139 Photoelectric sensor switch
Technical parameters
| Model | G139 | |||
| Diffuse Type | Dectection Distance | 1m | ||
| DC 10~30VDC | NPN | NO | G139-3A1NA | |
| NC | G139-3A1NB | |||
| NO+NC | G139-3A1NC | |||
| PNP | NO | G139-3A1PA | ||
| NC | G139-3A1PB | |||
| NO+NC | G139-3A1PC | |||
| AC 90~250VAC | SCR Controllable Silicon | NO | G139-2A1LA | |
| NC | ||||
| Relay Output | G139-2A1JC | |||
| Retroreflictive Type | Dectection Distance | 5M | ||
| DC 10~30VDC | NPN | NO | G139-3B5NA | |
| NC | G139-3B5NB | |||
| NO+NC | G139-3B5NC | |||
| PNP | NO | G139-3B5PA | ||
| NC | G139-3B5PB | |||
| NO+NC | G139-3B5PC | |||
| AC 90~250VAC | SCR Controllable Silicon | NO | G139-2B5LA | |
| NC | ||||
| Relay Output | G139-2B5JC | |||
| Through beam Type | Dectection Distance | 10M | ||
| DC 10~30VDC | NPN | NO | G139-3C10NA | |
| NC | G139-3C10NB | |||
| NO+NC | G139-3C10NC | |||
| PNP | NO | G139-3C10PA | ||
| NC | G139-3C10PB | |||
| NO+NC | G139-3C10PC | |||
| AC 90~250VAC | SCR Controllable Silicon | NO | G139-2C10LA | |
| NC | ||||
| Relay Output | G139-2C10JC | |||
| Output Current | DC | 200MA | ||
| AC | 300MA | |||
| Consumption Current | lower than 15MA | |||
| DC/AC Response time | lower than 2MS | |||
| Directional Angle | 3°~10° | |||
| Standard Detected Object | Transparent or Opaque body | |||
| Working Temperature | “-25 deg C~+55 deg C | |||
| Intensity of illumination | Sunlight under 10000LX, Incandescent lamp under 3000LX | |||
| Shell Material | Metal | |||
| Protection Grade | IP54 | |||
