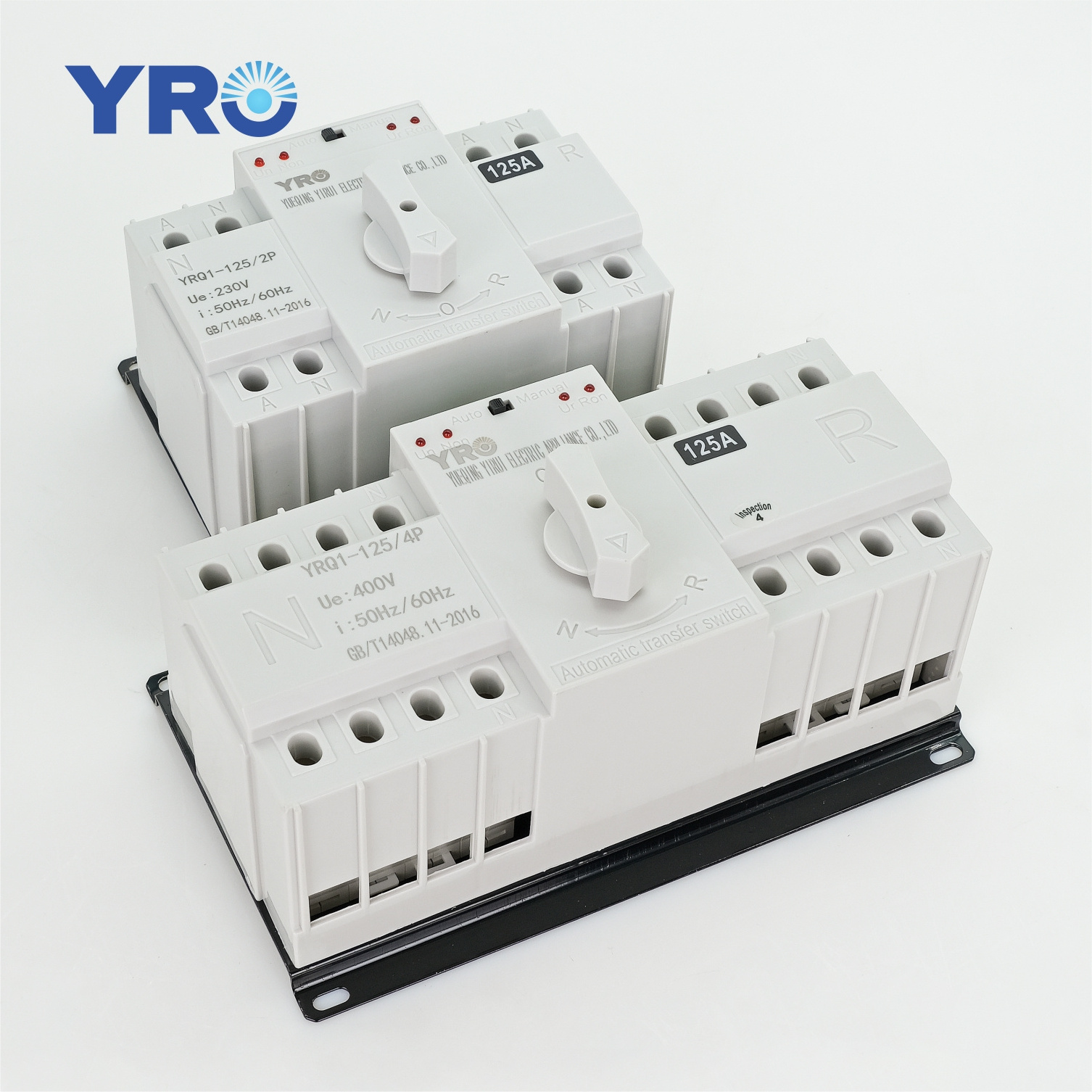

YRQ1CB-125 series automatic transfer switch is designed and developed by our company according to universal customers' requirements.
This switch uses DZ47(NC) miniature circuit breaker(improved type) as the actating element, is equipped with the new type
control mechanism.
With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it
is specially usded in the important power supply locations where the power failure is not allowed.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YRQ1CB
-
Rated Current:
-
100A 125A
-
Product Name:
-
automatic transfer switches
-
Pole:
-
2p/3p/4p
-
Frequency:
-
50/60Hz
-
Rated current:
-
16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
-
Warranty:
-
1 Year
-
Insulation Voltage:
-
690V
-
Rated Voltage:
-
400V
-
Max. Current:
-
125A
-
Operation type:
-
Automatic Operation
-
Feature:
-
Low Voltage
Quick Details
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YRO
-
Model Number:
-
YRQ1CB
-
Rated Current:
-
100A 125A
-
Product Name:
-
automatic transfer switches
-
Pole:
-
2p/3p/4p
-
Frequency:
-
50/60Hz
-
Rated current:
-
16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
-
Warranty:
-
1 Year
-
Insulation Voltage:
-
690V
-
Rated Voltage:
-
400V
-
Max. Current:
-
125A
-
Operation type:
-
Automatic Operation
-
Feature:
-
Low Voltage
Product Description
Specification
|
Type
|
YRQ1CB-125
|
|
Specification current Ie(A)
|
80/100/125A
|
|
Rated operating voltage, Ue (V)
|
AC230V/AC400V
|
|
Rated insulating voltage Ui (V)
|
AC 690V
|
|
Rated impulse withstand voltage (KV)
|
4KV
|
|
Rated short circuit making capacity Icm
|
6KA
|
|
Rated short circuit breaking capacity Icn
|
4.5KA
|
|
Service life
|
5000 times
|
|
Electric equipment grade
|
CB Class
|
|
Controller
|
Type A(basic type)
|
|
Rated control supply voltage,Us(V)
|
230V 50Hz
|
|
Operating transfer time (no time delay)
|
≤3s
|
