For new energy battery aluminum to aluminum structurer bonding
- Product Details
- {{item.text}}
Quick Details
-
EINECS No.:
-
210-898-8
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SEPNA
-
Model Number:
-
SP282
-
Type:
-
Two component, Two component
-
Color:
-
Black
-
Material:
-
Polyurethane
-
Mix rate:
-
100:100
-
Application:
-
New energy vehicle batteries
-
Advantage:
-
Elastic, weather resistant
-
OEM & ODM:
-
Free OEM & ODM service
-
Samples:
-
Free samples
-
Packing:
-
600ML
-
Product Keywords:
-
Fast curing at room temperature
Quick Details
-
CAS No.:
-
9009-54-5
-
Other Names:
-
Two component polyurethane adhesive
-
MF:
-
CH3H8N2O
-
EINECS No.:
-
210-898-8
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SEPNA
-
Model Number:
-
SP282
-
Type:
-
Two component, Two component
-
Color:
-
Black
-
Material:
-
Polyurethane
-
Mix rate:
-
100:100
-
Application:
-
New energy vehicle batteries
-
Advantage:
-
Elastic, weather resistant
-
OEM & ODM:
-
Free OEM & ODM service
-
Samples:
-
Free samples
-
Packing:
-
600ML
-
Product Keywords:
-
Fast curing at room temperature

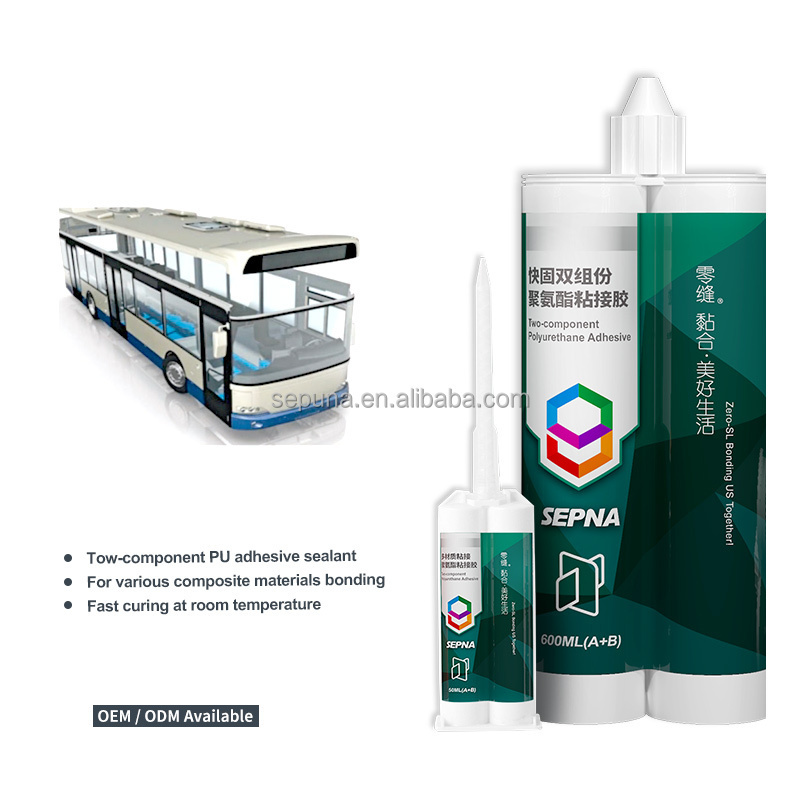

SP282 double component Polyurethane Structural Adhesive Sealant for Composite Bonding SMC/FRP/Metals
SP282 is a two component room temperature fast curing structural adhesive. Good adhesion and strong
adhesion after curing, for plastic substrates such as glass fiber Dimension, ABS, aluminum composite panel, etc., with good
adhesion properties.
Product Description
SP282
is
two component room temperature fast curing structural adhesive.
Good adhesion
and strong adhesion after curing, for plastic substrates such as glass fiber Dimension, ABS, aluminum composite panel, etc., with good adhesion properties
Good adhesion to most materials
Low VOC
ROHS/REACH compliance
Product Advantages
High toughness and elasticity
Excellent aging and chemical resistance
Fast curing at room temperature in 30 minutes
It can be used for various kind of vehicles
Such as the Car door panel, Tailgate, Spoiler, Truck roof Cap, etc
Multi-material bonding
polyurethane adhesive
Can be dispensed by machine or mixed manually
Applicable materials are PC, ABS aluminum plastic film, etc.
For aluminum to aluminum structure bonding of new energy battery
Excellent adhesive and waterproof properties
Two-component polyurethane structural adhesive
For electronic wire harness fixing
Can replace silicone sealant.
Fast bonding and fixing within 1 hour
Typical Applications
Technical Data Sheet
|
PROPERTY
|
STANDARD/UNITS
|
VALUE-SP282
|
|
|||
|
Component
|
--
|
Part A
|
Part B
|
|||
|
Appearance
|
Visual
|
Black
|
Beige
|
|||
|
The color after mixing
|
--
|
Black
|
|
|||
|
Viscosity
|
mPa.s
|
40000±10000
|
20000±10000
|
|||
|
Density
|
g/cm^3
|
1.2±0.05
|
1.2±0.05
|
|||
|
Data details after mixing
|
|
|
|
|||
|
Mixture ratio
|
Mass ratio
|
AB=100:100
|
|
|||
|
After Mixing density
|
g/cm^3
|
1.25±0.05
|
|
|||
|
Operation time
|
Min
|
8-12
|
|
|||
|
Time of initial setting
|
Min
|
15-20
|
|
|||
|
Initial curing time
|
Min
|
30-40
|
|
|||
|
Hardness
|
Shore D
|
50
|
|
|||
|
Elongation at break
|
%
|
≥60
|
|
|||
|
Tensile strength
|
MPa
|
≥10
|
|
|||
|
Shear strength ( AI-AI)
|
MPa
|
≥10
|
|
|||
|
Shear strength (PET-PET)
|
MPa
|
≥5
|
|
|||
|
Thermal conductivity
|
W/m.k
|
0.3
|
|
|||
|
Volume resistivity
|
Ω.cm
|
≥10
14
|
|
|||
|
Dielectric strength
|
kV/mm
|
26
|
|
|||
|
Application temperature
|
℃
|
-40-125（-40-257℉）
|
|
|||
|
The above data are tested in the standard state.
|
|
|
|
|||
Application Process
Before use,
please be sure to read the material safety data sheet to understand the corresponding preventive measures and safety suggestions.In addition, for chemical products that are exempt from mandatory labeling, relevant precautions should always be observed. Pleasealso refer to the local safety instructions and contact SEPNA for analytical support.Substrate pretreatment
The surface of the substrate shall be clean, dry and free from dust, grease or other pollutants. Using a suitable primer can improve the adhesion / long-term bonding stability of the metal surface. The adhesion of the surface of plastic materials can be improved by grinding or sandblasting, it helps to remove the release agent on the surface of the substrate.
The surface of the substrate shall be clean, dry and free from dust, grease or other pollutants. Using a suitable primer can improve the adhesion / long-term bonding stability of the metal surface. The adhesion of the surface of plastic materials can be improved by grinding or sandblasting, it helps to remove the release agent on the surface of the substrate.
Construction
PART A should be mixed properly and slowly before use to prevent the filler from settling after long-term storage. Mixing device or mechanical equipment with two parts application equipment can be used to fully mix PART A and B, and air must be prevented from being mixed in the mixture. The mixture can only be used for a limited time (operable time). After this time, the mixture becomes gel and is not suitable for use. The operation time is determined by the quality and temperature of the mixture. With the increase of mass and temperature, the operable timedecreases. Low temperature can prolong the operation time.
Curing
The mixture can be cured between 15 ℃ -60 ℃. The curing time is greatly shortened with the increase of temperature, and the addition of catalyst (accelerator) can also accelerate the curing (such as operable time, opening time).
Cleaning agents can be used to remove wet glue, uncured materials (cleaning application equipment,
substrate contamination, etc.), and cured adhesives can only be removed mechanically
