Quick Details
Quick Details
-
Model Number:
-
AST-HD3T1
-
Brand Name:
-
AOST, OEM
-
Place of Origin:
-
Guangdong, China

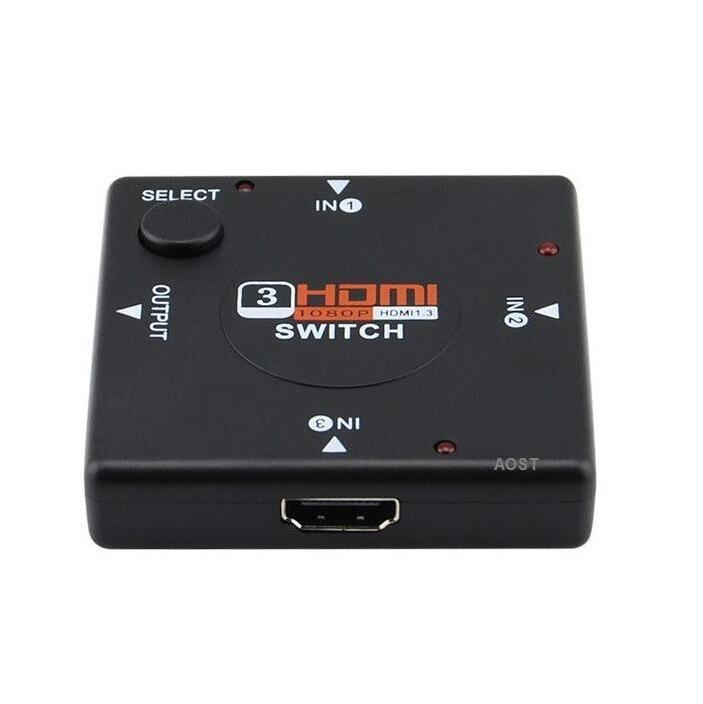

3 in 1 Audio Split Cable 3 Port HDMl Multi Display Auto Switch switcher splitter for PC PS4
| 1. 3 HDMI 1.3 input signals switch to a single HDMI 1.3 sink devices. |
| 2. HDCP 1.2 protocol compliant. |
| 3. Support up to 1080p/60HZ deep color 30bit, 36bit. |
| 4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC. |
| 5. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD. |
| 6.Support signal retiming. |
| 7. Support input up to 15meters AWG26 HDMI 1.3 standard cable length, output up to 25meters AWG26 cable length. |
| 8. Inputs can be switched with the key or button. |
| 9. It can smartly jump over those input sources which are not connected. |
| 10. With the smart function of memory, it can come back to the latest status when restarted or reconnected. |
SPECIFICATIONS:
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI1.3b+HDCP1.0/1.1 |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Digital Signal I/O |
|
|
HDMI Compliance |
HDMI 1.3b |
|
Operating Frequency |
|
|
Frequency |
Up to250MHz |
|
Vertical Frequency Range |
60Hz |
|
Video Amplifier Bandwidth |
2.5Gpbs/250MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
50.5X51.1X13.5 |
|
Weight(Net) |
28G |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0 °C to +70°C |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10°C to +80°C |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
No power needed |
|
Accessories Adapter |
|
|
User Manual |
English Version |
