Quick Details
-
Type:
-
GPS Ticket Card Bus Validator
-
Certification:
-
CE/FCC/RoHS
-
CPU:
-
32-bit MCU ARM Cortex-M4 168 MHz, 32-bit ARM Cortex-A7 528GHz
-
OS:
-
Linux (Optional)
-
Application:
-
Transportation/Bus Validator/Parking
-
Cards Suppoting:
-
ISO14443 Type A & B
-
Display:
-
160*80 dot-matrix LCD display with backlight
-
Built-in Peripherals:
-
Speaker+Buzzer+LED Status Indicators
-
Other Features:
-
Real Time Clock+6-axis Motion Tracking device
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Warranty:
-
1 Year
-
Touch Screen Type:
-
Capacitive Screen
-
Operation System:
-
Linux 4.9
-
Hard Disk Capacity:
-
RAM:512 MB;EMMC:8 GB
Quick Details
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
Interface:
-
5 x ISO7816 SAM Sockets; 2 x RS232 Interface
-
Type:
-
GPS Ticket Card Bus Validator
-
Certification:
-
CE/FCC/RoHS
-
CPU:
-
32-bit MCU ARM Cortex-M4 168 MHz, 32-bit ARM Cortex-A7 528GHz
-
OS:
-
Linux (Optional)
-
Application:
-
Transportation/Bus Validator/Parking
-
Cards Suppoting:
-
ISO14443 Type A & B
-
Display:
-
160*80 dot-matrix LCD display with backlight
-
Built-in Peripherals:
-
Speaker+Buzzer+LED Status Indicators
-
Other Features:
-
Real Time Clock+6-axis Motion Tracking device
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Warranty:
-
1 Year
-
Touch Screen Type:
-
Capacitive Screen
-
Operation System:
-
Linux 4.9
-
Hard Disk Capacity:
-
RAM:512 MB;EMMC:8 GB
Product Description

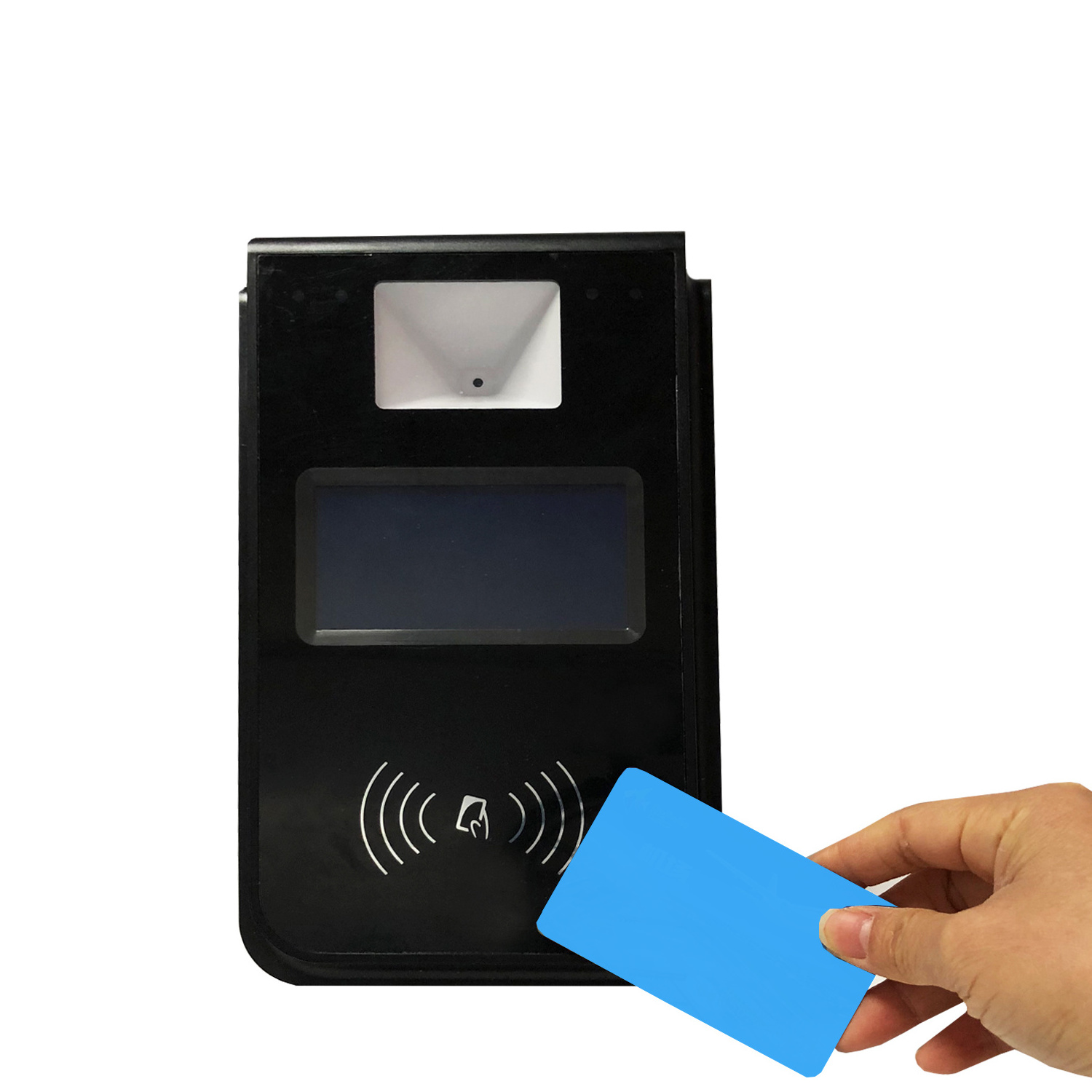

The
P18-L2C
Bus Validator supports all smart cards compliant to ISO14443 Type A & B, built-in the embedded powerful
32-bit ARM Cortex-A7 528 MHz
processor. There are 4 SAM sockets for holding Purchase SAM to ensure the security and integrity of the transactions.
With the integrated smart card readers, graphical LCD, audio and LED indicators, P18-L2 Bus Validator is perfectly suitable for various types of automatic fare collection systems, e.g. for buses, trams and other transportation means. With GPS features, the P18 enables you to locate the vehicle and set fare flexibly with reference to distance.
|
OS
|
Linux 4.9
|
RS232
|
3 lines R*D, T*D and GND without flow control
|
|
|
Processor
|
32-bit ARM Cortex-A7 528GHz
|
RS485
|
3 lines A, B and GND
|
|
|
Memory
|
|
Ethernet
|
Built-in 10/100-base-T with RJ45 connector
|
|
|
DDR (RAM)
|
512 MB
|
USB
|
USB 2.0 Host Full Speed
|
|
|
EMMC (Flash)
|
8 GB
|
GSM/GPRS/EDGE
|
900 MHz/1800 MHz
|
|
|
SPI Flash
|
64 MB
|
Supply Voltage
|
9 – 48 V DC
|
|
|
FRAM
|
8 KB
|
Supply Current
|
Max. 2A
|
|
|
RS232
|
3 lines R*D, T*D and GND without flow control
|
1D Barcode Scanning
|
Supported
|
|
RS485
|
3 lines A, B and GND
|
2D Barcode Scanning
|
Supported
|
|
Ethernet
|
Built-in 10/100-base-T with RJ45 connector
|
QR Code Scanning
|
Supported
|
|
USB
|
USB 2.0 Host Full Speed
|
Smart Card Read /Write Speed
|
Up to 424 kbps
|
|
GSM/GPRS/EDGE
|
900 MHz/1800 MHz
|
Operating Distance
|
Up to 50 mm
|
|
Standard
|
ISO/IEC 7816 Class A, B (5V, 3V)
|
Operating Frequency
|
13.56 MHz
|
