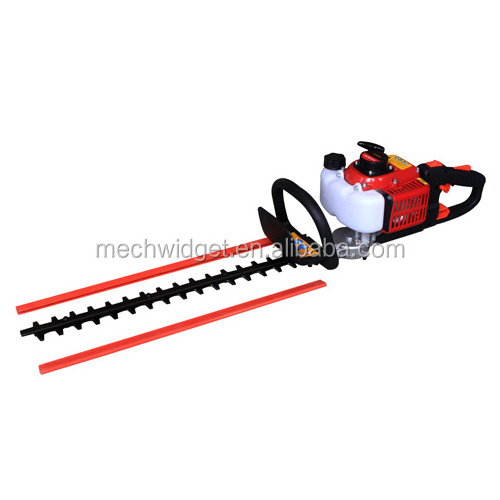

Tools Gas Hedge Trimmers 1E32F 2 Stroke Electric Cutters

Engine Model: 1E32F
Engine Type:   Air-cooled two-stroke (single-cylinder gasoline engine)
Engine power: 0.65kw/6500-7000r/min
Engine displacement: 22.5cc
Mixed oil ratio: 25:1
Vaporized product type: diaphragm type
Engine Idle: 2800-3000r/min
Fuel tank volume: 600ml
Cutting width: 600mm
Scissors Type: Double Bladed
Net weight of the engine:  2.8kg
Net weight of the whole machine:  6.0kg
Carrying method: portable

Maintenance knowledge:

1. The gasoline engine is prohibited from overspeeding and should be shut down at low speed.
2. The oil should be used with the correct model, is the factory product, clean, and the gasoline should be clean and fresh.
3, non-professionals may not adjust the carburetor.
4. The air filter element should be inspected regularly and replaced regularly. Dirty filter cartridges are washed with soapy water and dried.
5. After the gasoline engine runs for 100-300 hours, it should remove the carbon deposit once. When removing, remove the cylinder head and remove carbon deposits such as cylinders, cylinder heads, pistons, and valves. Carbon deposits must not enter the cylinder bore and valve seat.
6. Keep the gasoline engine, especially the cylinder fins, clean.
7, when refueling, inspection, maintenance, and warranty, you must remove the spark plug cap, do not smoke, and stay away from the open flame.
8, do not operate indoors.
9. Check the tightness of the bolts in the working part and other parts before and after each use of the machine.
10. With a clutch, the gasoline engine must not be started before the clutch is exposed, ie the machine is not installed.
11, the other parts of the machine lubrication, according to the need to follow the instructions regularly add oil or grease
