- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TRIUMPH
-
Weight:
-
100
-
Product name:
-
LPG Storage cryogenic natural gas tanks for sale
-
Brand:
-
TRIUMPH
-
Product Type:
-
Storing Liquefied Industrial Gases
-
Working Pressure:
-
Customizable
-
Type:
-
Vertical
-
Lead Time:
-
80 Days
-
Certification:
-
ASME GB150
-
Insulation:
-
Vacuum and powder
-
Material:
-
Stainless steel/ Carbon steel
-
Medium:
-
LOX, LIN, LAr, LCO2, LNG,LC2H4
Quick Details
-
Capacity:
-
10m3-100m3
-
Max Working Pressure(MPa):
-
1.6 MPa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TRIUMPH
-
Weight:
-
100
-
Product name:
-
LPG Storage cryogenic natural gas tanks for sale
-
Brand:
-
TRIUMPH
-
Product Type:
-
Storing Liquefied Industrial Gases
-
Working Pressure:
-
Customizable
-
Type:
-
Vertical
-
Lead Time:
-
80 Days
-
Certification:
-
ASME GB150
-
Insulation:
-
Vacuum and powder
-
Material:
-
Stainless steel/ Carbon steel
-
Medium:
-
LOX, LIN, LAr, LCO2, LNG,LC2H4
Product Description
Medium:Liquid gas(LO2,LN2,LAR)

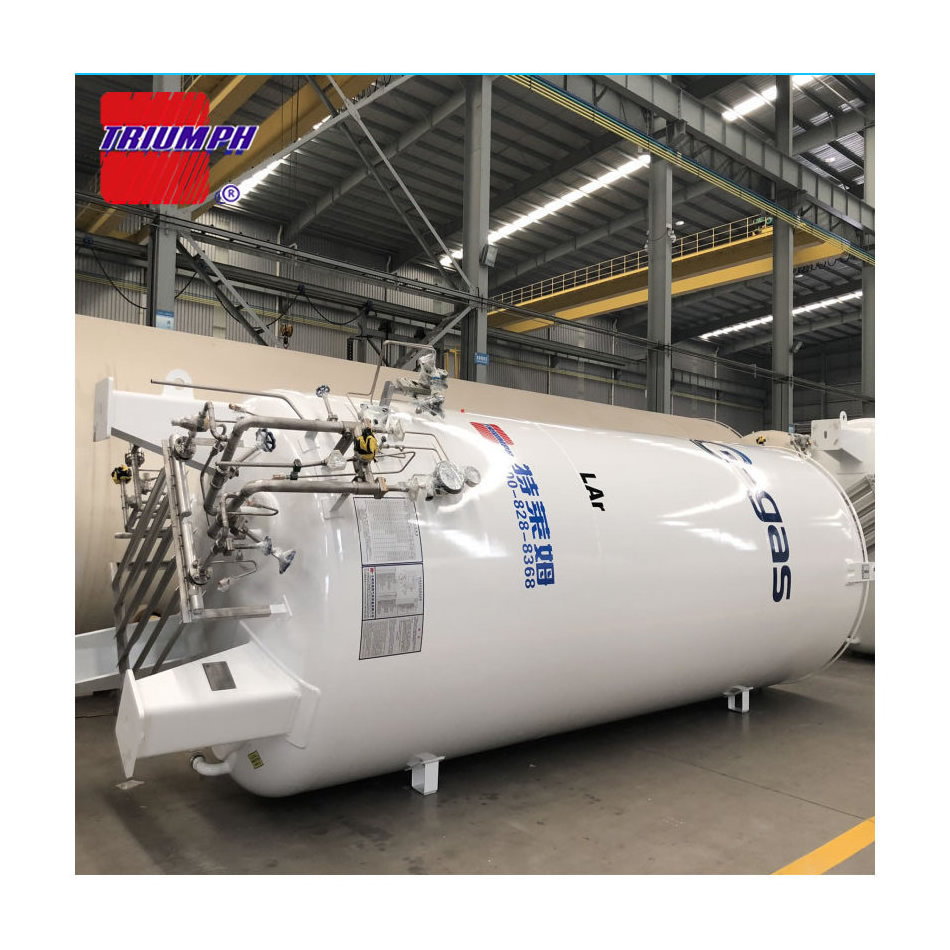

Cryogenic Liquid Storage Tank
Thermal-insulating Mode: Vacuum Powder Insulation and multi-layer entwining thermal insulation
Valid Capacity:2M3--350M3
Working pressure:>=0.2Mpa;
Medium:LOX;LIN; LAr; LNG; LCO; LC;H;
Type:Vertical; Horizonal;
| Model |
Nominal
Volume |
Effcctive
Volume |
Maximum Flling Volume |
Daly
Evaporalion Rale(N) |
Maximum
working presssure |
Ouler
Diameter |
Total
Height |
Empty
Weight |
| L | L | kg | dally | Mpa | mm | mm | kg | |
| VT18/B | 10,523 | 10,000 | 8,100 11,410 13,930 | 0.495 | 0.8 | 2,300 | 5,850 | 6.28 |
| VT18/16 | 10,523 | 10,000 | 8,100 11,410 13,930 | 0.495 | 1.6 | 2,300 | 5,850 | 7,250 |
| VT21/B | 21,000 | 20,000 | 16,200 22,820 27,B60 | 0.45 | 0.8 | 2,600 | 7,880 | 9,850 |
| VT21/16 | 21,000 | 20,000 | 16,200 22,820 27,B60 | 0.45 | 1.6 | 2,600 | 7,880 | 12,335 |
| VT32/B | 31,600 | 30,000 | 24,316 34,255 41,820 | 0.396 | 0.8 | 2,600 | 10,820 | 14,625 |
| VT32/16 | 31,600 | 30,000 | 24,316 34,255 41,820 | 0.396 | 1.6 | 2,600 | 10,820 | 18,345 |
| VT53/8 | 52,600 | 50,000 | 40,500 57,050 69,650 | 0.315 | 0.8 | 3,000 | 12,590 | 21,550 |
| VT53/16 | 52,600 | 50,000 | 40,500 57,050 69,650 | 0.315 | 1.6 | 3,000 | 12,590 | 26,000 |
| VT106/8 | 106,200 | 100,000 | 81,000 114,100 139,300 | 0.245 | 0.8 | 3,400 | 19,500 | 45,000 |
| VT106/16 | 106,200 | 100,000 | 81,000 114,100 139,300 | 0.245 | 1.6 | 3,400 | 19,500 | 54,000 |
