Solo-Double-Multi Swing Arm Orchard Vineyard Flail Mower around under tree vine mowing Orchard King X

Solo-Double-Multi Swing Arm Orchard Vineyard Flail Mower around under tree vine mowing Orchard King X

FOB Reference Price: Get Latest Price

≥1 Sets

US $1150

≥50 Sets

US $1050

≥100 Sets

US $900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hebei, China

Brand Name:: Orchard King

Product Name:: Orchard King X swing arm mower

Capacity:: Cutting width 1200 00 to 2200 mm

Used for:: 2 to 3 meters row spacing

MOQ:: 1

Linkage:: Extended delta drive shaft

Working width:: 1700mm

Advantage:: Simple structure, high cost performance

PACKAGE:: Iron Case

Color:: Red + Black or Customer Required

Quick Details

Weight (KG):: 320

Type:: Orchard / Vineyard mower machine, Swing arm mower

Use:: Orchard and Vineyard under tree mowing

Place of Origin:: Hebei, China

Brand Name:: Orchard King

Product Name:: Orchard King X swing arm mower

Capacity:: Cutting width 1200 00 to 2200 mm

Used for:: 2 to 3 meters row spacing

MOQ:: 1

Linkage:: Extended delta drive shaft

Working width:: 1700mm

Advantage:: Simple structure, high cost performance

PACKAGE:: Iron Case

Color:: Red + Black or Customer Required

Product Overview

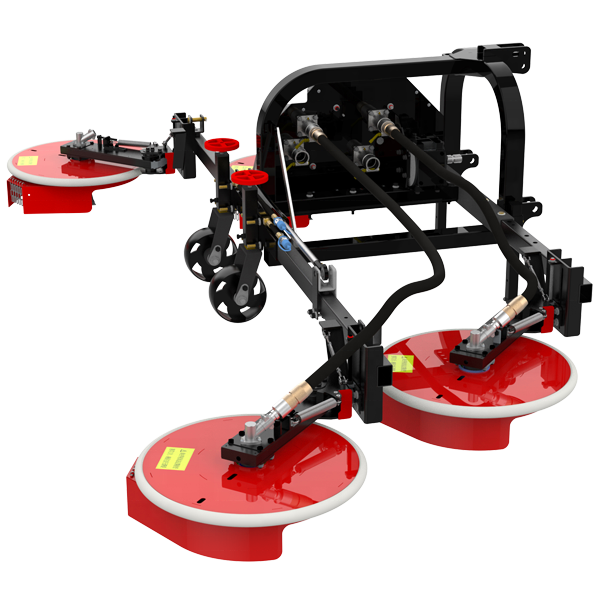

Orchard King X 1 / 2 / 4

Orchard King X can be configured with different number of swing arm discs as required.

Orchard King X is driven by the flexible shaft used in construction machinery, which has good mowing effect, high component durability and low maintenance cost.

The height and Angle of each swing arm disc can be adjusted individually. The lateral movement distance of each swing arm can be adjusted individually and can be set to hydraulic control as required.

Type	Orchard King X
Number of swing arm cutter can be selected	1 ~ 4
4 swing arm cutter cutting width (mm)	1970
Cutting depth (cm)	3 ~ 30*
Rotation angle of each Swing arm cutter	-30° ~ 30°
Left side distance from tractor center (mm)	1600
Right side distance from tractor center (mm)	1600 ~ 2100
Working speed (Km/h)	3 ~ 5
Hydraulic connection	G1/2=4, G3/8=1
Number of blade (swing arm cutter)	2
Number of side arm	4
Number of hydraulic cylinders for side arm	1
Swing arm cutter side movement control	Manual & Hydraulic

*Each is independently adjustable and the total height includes wheel height adjustment.

As of June 2023, our company has applied for and obtained more than 70 invention patents in the field of orchard machinery and intelligent agricultural machinery.

The market share of the products involved in China is also in a leading position.

The main national exhibitions of our company include China International Forestry Machinery Exhibition, China International Agricultural Machinery Exhibition and China Yangling Agricultural Hi-Tech Fair.

In addition to some industry exhibitions in major provinces of fruit industry.

These pictures rotary mower “Path Breaker” was designed and produced by our factory, Path Breaker Nanpi machinery manufacturing Co., Ltd. Because the transmission structure of this kind of mower is relatively complex, the ability to adapt to complex terrain is not good enough, so it has been eliminated by our factory. Some counterfeiters are still using our photos and videos, so be aware.

Orchard King 300 main body is a single horizontal shaft driven by multiple toothed belts, with crushing hammers. Each hammer weighs half a kilogram, has large inertia, and can crush branches of 2 centimeters. Compared with multi-cutter rotary mowers, Orchard King 300's structure is more simplified and more resistant to terrain impact also can adapt to the complex terrain of orchards and vineyards.

Due to the simplified design of the transmission structure, the potential failure points are reduced, the failure rate is significantly reduced, and it is easier to use the orchard for a long time. The swing arm cutter is lightweight, and it's height and angle can be adjusted independently.

Orchard King is available as a basic model and an upgraded version with a pair of movable side arms. The main engine of the basic model is directly connected to the suspension bracket, and the front and rear distance of the machine is more compact. The upgraded model can hydraulically control the side shift and flip of the main engine, which is not only suitable for a variety of row spacing, but also easy to turn around, but also more suitable for a variety of terrain, including ridge slopes under trees, gutters between rows or hilly orchards.

Orchard King 300 series has a number of models with different cutting sizes, suitable for a variety of row spacing, and the power demand for the tractor is not the same. Generally equipped with 30 ~ 50 hp compact tractor.

A : Why choose Orchard King?

Orchard King's Flail mower + swing arm mower structure form is the future trend. Good operation effect, high durability. Moreover, the structural design of Orchard King is more concise and easy to maintain, and has applied for a number of patents.

In China, Orchard King has been deeply contacting orchards around the country with good products for many years, and iteratively upgrading according to the feedback of field operations.

In China, Orchard King is one of the few really good, applicable, advanced obstacle avoidance grass crusher, reputation is better, and the user scale is likely to be the larger.

B : How about our quality control?
Orchard King's each production step follows strict established standards, and operational tests are carried out before shipment, and only after passing the tests are allowed to leave the factory.

C : Is there any spare parts included with the machine？
Yes. We will give a variety of accessories according to the needs of users, so as to avoid delay in use once there is a problem.

D : What's the minimum order quantity?
MOQ: 1 unit.If you have OEM or ODM customization needs, MOQ will change according to your needs.

E : Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

F : Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.

G : What's your warranty policy?
Normally our warranty is one year.Once quality issue happen, no damage to human factors, we will send you the replacements by air for free.
