Step1: 20-inch pp filter (removal of sand, rust, algae, etc.)
Step2:20-inch UDF filter (removal of residual chlorine, peculiar smell, etc.)
Step3:20-nch CTO filter (removal of residual chlorine, peculiar smell, etc.)
Step4: RO membrane (produce pure water)
Step5: Post-activated carbon filter (improves taste)
Step6: Infrared mineralization filter (release trace elements)
Step7: UV lamp sterilization (to prevent bacterial regeneration)
Step8:Ozone sterilization (sterilizes containers and canning rooms to prevent secondary pollution)
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
livingh2o
-
Power:
-
130w
-

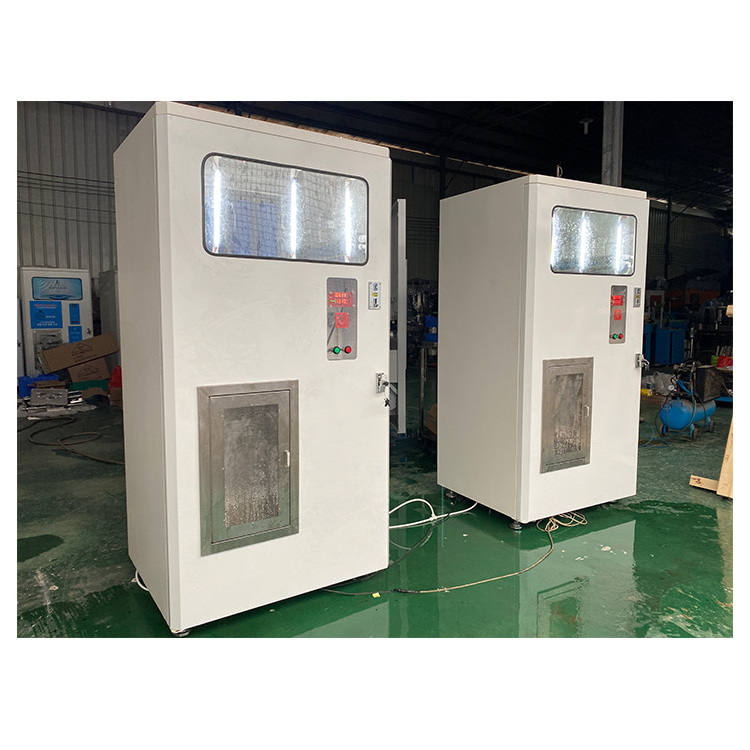

Product name:
-
small water bottle vending machine
-
style:
-
water vending machine
-
Payment System:
-
Coin Bill Credit Card
-
Function:
-
Auto Vending Machine
Quick Details
-
Type:
-
Vending Machines
-
Dimension:
-
L800mmW680mmH2000mm
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
livingh2o
-
Power:
-
130w
-
Product name:
-
small water bottle vending machine
-
style:
-
water vending machine
-
Payment System:
-
Coin Bill Credit Card
-
Function:
-
Auto Vending Machine
Product Description
Applications:
Production capacity:
200GPD/300GPD/400 GPD/600 GPD/800 GPD/1300 GPD/1600 GPD/3000 GPD etc.
Filtration steps:
Booster pump - Quartz sand filter - Activated carbon filter - 10uPP - 5uPP - RO booster pump - RO membrane - Post activated carbon filter - Post mineralization filter - UV - Ozone
Payment method (optional): IC card, coin, bill, credit card, change etc.
Features:
1. Waterproof carbon steel cabinets, the front door open design, safety and health, durable and easy installation
2. Advanced RO purification techniques, seven effective water treatment levels, and two UV and ozone sterilization.
3. Payment system with coin operation and IC card operation.
4. Airtight filling + High concentrations of ozone sterilization, eliminate the secondary pollution completely
5 .24-hour uninterrupted UV sterilization, guarantees the water quality.
6. The photosensitive can control the lightbox and filling room to save electricity costs.
7.The machine can be installed shops, supermarkets, residence areas, streets, communities, schools, factories, etc.
Production capacity:
200GPD/300GPD/400 GPD/600 GPD/800 GPD/1300 GPD/1600 GPD/3000 GPD etc.
Filtration steps:
Booster pump - Quartz sand filter - Activated carbon filter - 10uPP - 5uPP - RO booster pump - RO membrane - Post activated carbon filter - Post mineralization filter - UV - Ozone
Payment method (optional): IC card, coin, bill, credit card, change etc.
Features:
1. Waterproof carbon steel cabinets, the front door open design, safety and health, durable and easy installation
2. Advanced RO purification techniques, seven effective water treatment levels, and two UV and ozone sterilization.
3. Payment system with coin operation and IC card operation.
4. Airtight filling + High concentrations of ozone sterilization, eliminate the secondary pollution completely
5 .24-hour uninterrupted UV sterilization, guarantees the water quality.
6. The photosensitive can control the lightbox and filling room to save electricity costs.
7.The machine can be installed shops, supermarkets, residence areas, streets, communities, schools, factories, etc.
Water production process:
Product Paramenters
|
Model
|
RO-300J
( 400GPD) |
RO-300J
(600GPD) |
RO-300J
(800GPD) |
RO-300J
(1000GPD) |
RO-300J
(1300GPD) |
||||
|
Item
|
|
|
|
|
|
||||
|
Electricity
|
AC 220V/50Hz
(110V-60hz)
|
AC
220V/50Hz
|
AC 220V/50Hz
|
AC 220V/50Hz
|
AC 220V/50Hz
|
||||
|
Power
|
200W
|
250W
|
350W
|
600W
|
600W
|
||||
|
Current
|
1A
|
1.2A
|
1.6A
|
3A
|
3A
|
||||
|
UV lamp
|
15W(2pcs)
|
15W(2pcs)
|
15W(2pcs)
|
15W(2pcs)
|
15W(2pcs)
|
||||
|
Ozone
|
1000mg
|
1000mg
|
1000mg
|
1000mg
|
1000mg
|
||||
|
Source water
|
Tap water
|
Tap water
|
Tap water
|
Tap water
|
Tap water
|
||||
|
Water pressure
|
0.3Mpa
(3Kg/cm)
|
0.3Mpa
(3Kg/cm)
|
0.3Mpa
(3Kg/cm)
|
0.3Mpa
(3Kg/cm)
|
0.3Mpa
(3Kg/cm)
|
||||
|
Production capacity
|
400 gallons per day
( 24 hours)
|
600 gallons per day
( 24 hours)
|
800 gallons per day
( 24 hours)
|
1000 gallons per day
( 24 hours)
|
1300 gallons per day( 24 hours)
|
||||
|
Recovery
|
40%-45%
|
40%-45%
|
40%-45%
|
40%-45%
|
40%-45%
|
||||
|
Desalinization ratio
|
98%
|
98%
|
98%
|
98%
|
98%
|
||||
|
Working pressure
|
0.5-0.6MPa
|
0.5-0.6MPa
|
0.5-0.6MPa
|
0.5-0.6MPa
|
0.5-0.6MPa
|
||||
|
Filling capacity
|
7L/Min
|
7L/Min
|
7L/Min
|
7L/Min
|
7L/Min
|
||||
|
Filling bottle size
|
5 gallon bottle or small than
|
3 or 5 gallons bottle
|
3 or 5 gallons bottle
|
3 or 5 gallons bottle
|
3 or 5 gallons bottle
|
||||
