Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DENLAIER
-
Model Number:
-
S118
Product Description
Details Images
Feature

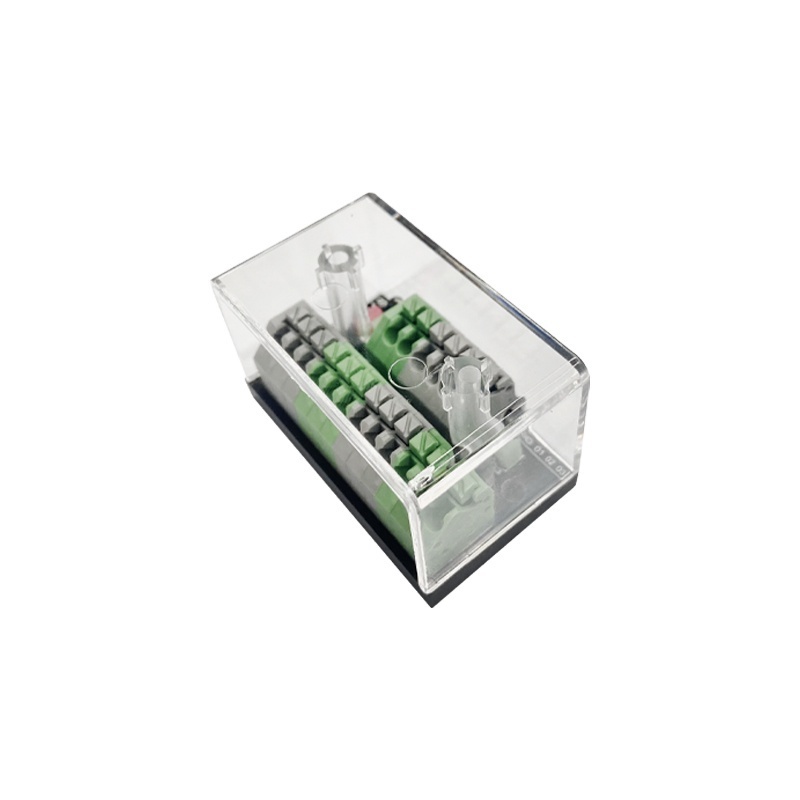

This product is a Mini type wiring module interface board that corresponds to various terminal input signal connections. It is equipped with 8 sets of 3P signal input ports and can be connected to 2-wire or 3-wire signals;
Use a 10P terminal block to connect to the controller end for easy remote control use; Using action LED display, the action status is clear at a glance;
Cooperate with other products in our company's series to fully achieve efficient and wiring efficient connection
|
MIL Jack Connector
|
Main material
|
PBTV-0 fire rating
|
Reference standards
|
UL
|
|
|
Terminal material
|
Copper platinum
|
Rated current
|
2.0A
|
|
|
Electroplated layer
|
Needle angle inlaid with all gold
|
Contact resistance
|
﹤20milliampere
|
|
MB Series
|
Main material
|
PA66V-0 fire rating
|
Authentication
|
CE
|
|
|
Terminal material
|
Phosphorous copper
|
Rated current
|
10A
|
|
|
Electrical search layer
|
Plating and uncovering
|
Torque
|
0.4NM(3.5Ib-in)
|
|
Terminal Body
|
Main material
|
PA66V-0 fire rating
|
Authentication
|
CE
|
|
|
End cover material
|
PC V-0 fire rating
|
Fixed screw material department
|
SUS304
|
|
|
Fastening
|
PC V-0 fire rating
|
PCB board material
|
FR-4
|
|
Input
|
Rated current
|
1A
|
|
|
|||
|
|
Rated voltage
|
DC24V
|
|
|
|||
|
Suitable for electric wires
|
|
1.5 mm2 Following/ AWG16
|
|
|
|||
