Quick Details
-
material of portable stage:
-
alu frame+black plywood
-
Main tube size:
-
50x3mm, 43x2mm.
-
standard size:
-
4x4ft, 4x8ft,/1.22x1.22m, 1.22x2.44m
-
height:
-
standard H:0.6-1.2M, Min 0.2m, Max 2.5m
-
frame Material:
-
aluminum 6082-T6/6061-T6
-
top board material:
-
18mm thick of plywood , Plexiglass, toughened
-
Quality:
-
high quality material and welding
-
Load capability:
-
standard 750kg/sqm, special 1000-2000kg/sqm
-
Guarantee:
-
2-5 years, depends on your using environment
-
application area:
-
concert tent, dance, event, performance
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XY
-
Model Number:
-
X-STAGE
-
material of portable stage:
-
alu frame+black plywood
-
Main tube size:
-
50x3mm, 43x2mm.
-
standard size:
-
4x4ft, 4x8ft,/1.22x1.22m, 1.22x2.44m
-
height:
-
standard H:0.6-1.2M, Min 0.2m, Max 2.5m
-
frame Material:
-
aluminum 6082-T6/6061-T6
-
top board material:
-
18mm thick of plywood , Plexiglass, toughened
-
Quality:
-
high quality material and welding
-
Load capability:
-
standard 750kg/sqm, special 1000-2000kg/sqm
-
Guarantee:
-
2-5 years, depends on your using environment
-
application area:
-
concert tent, dance, event, performance

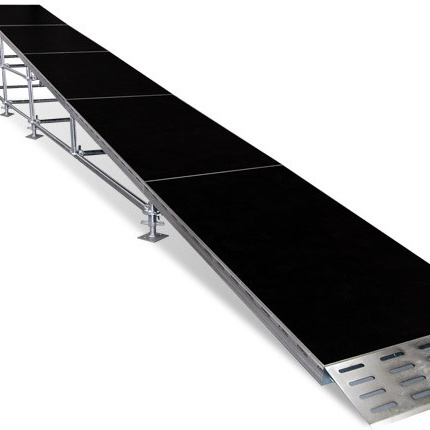

aluminum assembly stage
Easy Frame stage is a simple and effective support frame for indoor or outdoor use,to create a raised stage floor.The frame racks are available is serveral heights and lenghts and lengths,creating an interconnected framework that can act as ballase system for your roof construction.can absorb vertical as well as horizontal forces.
assembly stage install.
We design and manufacture several types of truss and stage, each of them meeting the demands of different markets and usage situations, whether they are outdoor or mobile advertising, indoor events or sports events.
We always do our best to satisfy all our customer's requests and wishes. We welcome challenging projects and any possibility to cooperate with our clients and help improve their business.
Stage Type.
X-EST-01
Folding stage
Size:1 x 2m / 1.22x2.44m
Plywood thick :18mm
Plywood color:black/red...
Max load:750kg / sq.m
X-BST-01.
Quick mobile stage
Size:1.22x1.22m/1x1m/1.22x2.44m
Plywood thick :18mm
Plywood color:black/red...
Max load:750kg / sq.m
X-DST-01.
scaffolding stage platform
Size:1.22x2.44m
Plywood thick :18mm
Plywood color:black/red...
Max load:750kg / sq.m
Stairs types.
X-FST-01.
Adjustable the height
X-FST-02.
Stairs
According stage height according the steps.
X-FST-03 .
Assembly stage pictures .
Assembly stage with handrail.
Different height---adjustable.
The assembly frame
One by one install the frame and pillar
Stage pillar corner
Different stage show.
We design and manufacture several types of truss and stage, each of them meeting the demands of different markets and usage situations, whether they are outdoor or mobile advertising, indoor events or sports events.
We always do our best to satisfy all our customer's requests and wishes. We welcome challenging projects and any possibility to cooperate with our clients and help improve their business.
Indoor red stage.
X-AST-02
size:1.22x1.22m / 4ft x 4ft
plywood thick:18mm
max.load 750kg/sq.m
Min height:0.2m
Max height:2.5m
Outdoor or indoor glass stage.
X-AST-05
size:1.22x1.22m / 4ft x 4ft
glass thick:18mm
max.load:750kg/sq.m
Min height:0.2m
Max height:2.5m
Concert black stage-With handrail
X-AST-01
size:1.22x1.22m / 4x4ft
plywood thick:18mm
max.load 750kg/sq.m
Min height:0.2m
Max height:2.5m
iN THE WORLD.
All use carton or bubble bag make package, Shipping to all the world.
Carton package.
Flight case or Bubble package.
Shipping.
FAQ.
Q1. Can I have a sample order for truss or stage?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for truss or stage order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. DHL, UPS, FedEx or TNT also optional. It usually takes 3-5 days by express.
Q5. How to proceed an order for truss or stage?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on truss or stage?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the defective product?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
Secondly, during the guarantee period, we will send new product with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
