Quick Details
-
Model Number:
-
FL3-KCD4-201N-3
-
Max. Current:
-
30A
-
Mechanical Life:
-
100000
-
Mounting hole size:
-
22*30
-
Rating:
-
30A/250VAC or 16A/250VAC
-
Body material:
-
nylon rocker switch
-
Actuator color:
-
Red,Green,Blue,Black,Amber,Black, White, Stainless steel, SIlver
-
Switch Function:
-
ON - OFF/ON-ON/ON-OFF-ON/(ON)-OFF/(ON)-ON/(ON)-OFF-ON
-
Approval:
-
CE RoHS ISO9001
-
LED color:
-
Red Yellow Green Blue White Amber
-
LED voltage:
-
3v, 6v, 12v, 24v, 26v, 110v,220v,380v
-
Electrical life time:
-
≥10000cycles
-
OEM:
-
Available
-
Certification:
-
ce ccc
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FL3-KCD4-201N-3
-
Max. Current:
-
30A
-
Mechanical Life:
-
100000
-
Mounting hole size:
-
22*30
-
Rating:
-
30A/250VAC or 16A/250VAC
-
Body material:
-
nylon rocker switch
-
Actuator color:
-
Red,Green,Blue,Black,Amber,Black, White, Stainless steel, SIlver
-
Switch Function:
-
ON - OFF/ON-ON/ON-OFF-ON/(ON)-OFF/(ON)-ON/(ON)-OFF-ON
-
Approval:
-
CE RoHS ISO9001
-
LED color:
-
Red Yellow Green Blue White Amber
-
LED voltage:
-
3v, 6v, 12v, 24v, 26v, 110v,220v,380v
-
Electrical life time:
-
≥10000cycles
-
OEM:
-
Available
-
Certification:
-
ce ccc
[NEW]

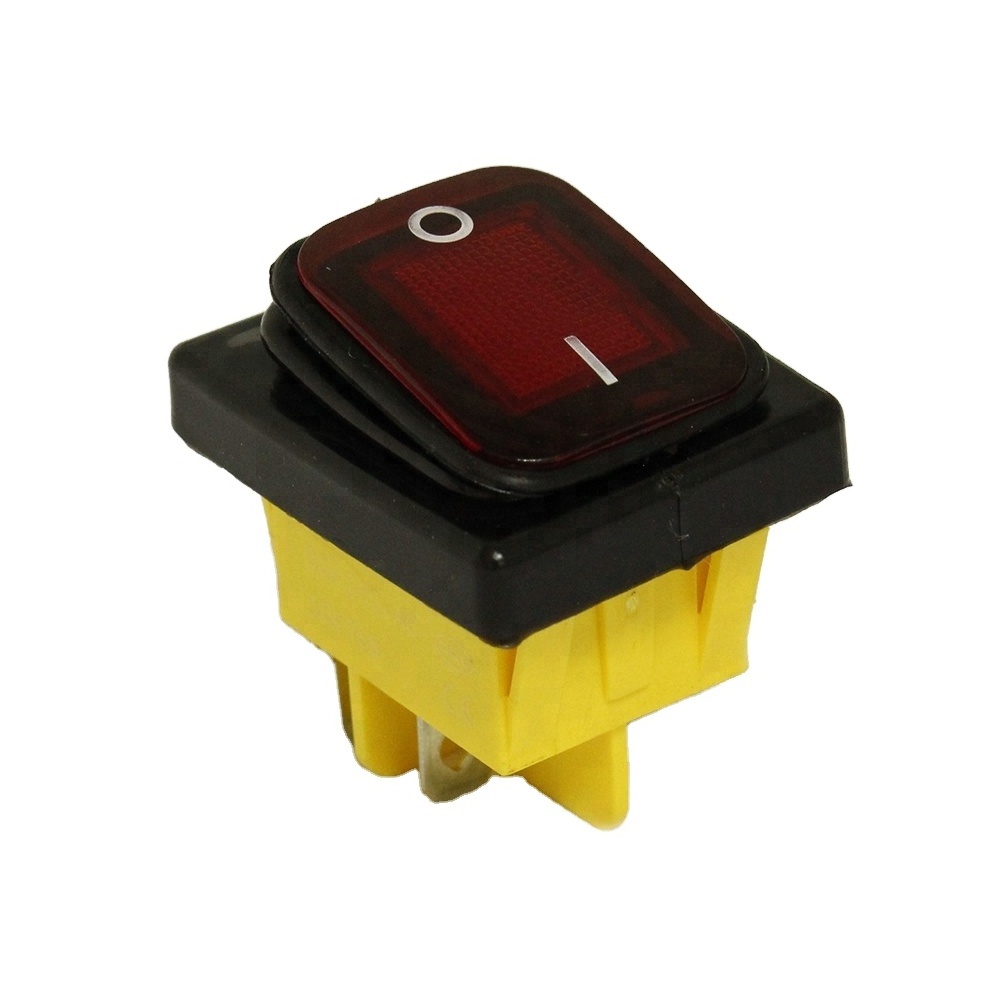

FILN Waterproof Rocker Switch are made in high quality, with CE, RoHS , ISO9001 certifications.
With development of technology, the new items looks more beautiful and firm.
Customization service in available.
And We control every aspect for you!
| Items | Parameter |
| Mounting Hole Size | 22*30 |
| Body Material | Imported PA66 |
| Actuator Color | red, green, blue, white, amber, silver, black, stainless steel |
| Rating | 30A/250VAC or 15A/250VAC |
| Switch Function | ON-OFF, ON-ON, ON-OFF-ON, (ON)-OFF, (ON)-ON, (ON)-OFF-ON, (ON)-OFF-(ON) |
| LED Color | red, green, blue, amber, white |
| LED Voltage | without led, 3v, 6v, 12v, 24v, 36v, 110v, 220v, 380v |
| Electrical Life time | ≥10000cycles |
| Insulated Resistance | ≥100MΩ |
| Contact Resistance | ≤50mΩ |
| Dielectric Strength | ≥1500V AC/5S |
| Operating Temperature | T85 |
| Contact point | Silver |
