Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yanling
-
Model Number:
-
IBOX-501 N16
-
Type:
-
Desktop
-
Screen Size:
-
No Monitor
-
Processor Brand:
-
Intel
-
Graphics Card Type:
-
Integrated Card
-
Widescreen:
-
no
-
Optical Drive Type:
-
No CD ROM
-
Display Chip:
-
Integrated Intel HD Graphics Card 620
-
Certification:
-
FCC, ce, RoHS
Quick Details
-
Use:
-
For Home and Student
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
GDDR4
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yanling
-
Model Number:
-
IBOX-501 N16
-
Type:
-
Desktop
-
Screen Size:
-
No Monitor
-
Processor Brand:
-
Intel
-
Graphics Card Type:
-
Integrated Card
-
Widescreen:
-
no
-
Optical Drive Type:
-
No CD ROM
-
Display Chip:
-
Integrated Intel HD Graphics Card 620
-
Certification:
-
FCC, ce, RoHS
Notice: This link's price is barebone system price, doesn't include CPU, ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.

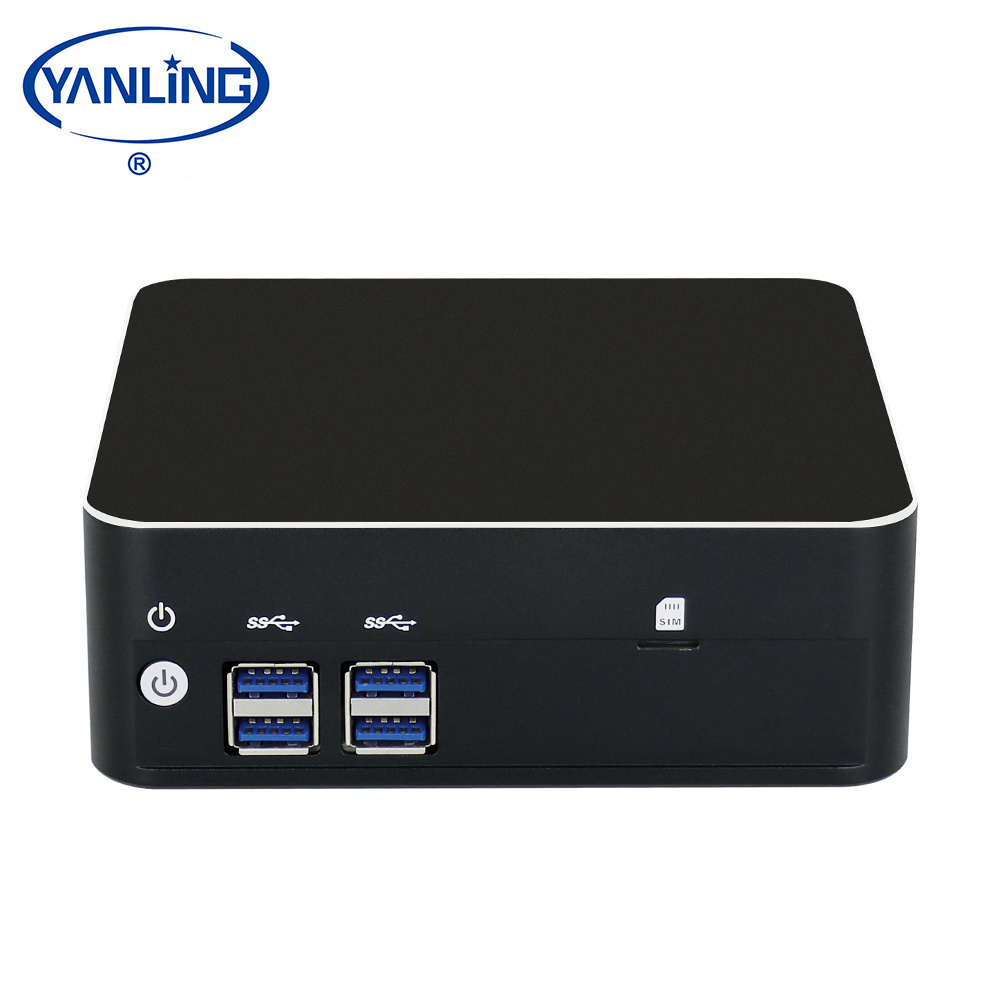

Intel Core i5 IBOX-501 N16 mini pc dual lan with 4*USB 3.0 quad core 1.8GHz to 4.0GHz
Click here, contact us to get the latest price list and more info
|
Specification |
|||
|
Model |
IBOX-501 N16 Mini PC |
||
|
Case Color |
Black (any color can be customized) |
||
|
Material |
High quality all aluminum alloy mini itx case
|
||
|
CPU |
Intel Kaby Lake Core i5 8250u quad core 3.4GHz Intel core i7 8550u quad core 4.0GHz Optional |
||
|
BIOS |
AMI EFI BIOS |
||
|
RAM
|
Support 1*DDR4 2133/2400MHz SODIMM ram slot, support max 16G
|
||
|
Storage |
Support 1*M.2 2280 Slot, 1*2.5'' SSD/HDD
|
||
|
Display Chip |
Integrated Intel HD Graphics Card 620
|
||
|
Display Interface |
1*DP, 1*HD, (Support synchronous and asynchronous dual display)
|
||
|
I/O |
4*USB3.0, 2*USB2.0 |
||
|
1*HD (support 4096x2304@24Hz), 1*DP (support 4096x2304@60Hz), 1*SIM Card Slot |
|||
|
2*1000M Lan |
|||
|
1*Audio (support audio and mic input) |
|||
|
1*Power Switch
|
|||
|
1*DC-IN 12V |
|||
|
Network Card |
2*Intel i211-AT 10/100/1000M lan
|
||
|
Expansion |
Support 1*M.2 2280 Slot (support SATA or PCIE X4 signal) Support 1*Mini-PCIE (support Wifi/BT/3G/4G), External SIM card slot |
||
|
Watch Dog Timer |
Support |
||
|
Power Supply |
Support DC-IN 12V
|
||
|
Operating System |
For Windows 7/8/10, Linux OS
|
||
|
Working Temperature |
-10° C - 5 0 ° C |
||
|
Working Humidity |
5% - 95% relative humidity, Non-condensing |
||
|
Size |
133*128*46 mm (L*W*H);
|
||
|
Latest Price List |
Click here , send us an enquiry to get the latest price list and more info |
||
|
Application |
Applied in Office, Home, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, Networking, etc . |
||
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
