Quick Details
-
Warranty:
-
1 year or 1000 running hours
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JIUAN
-
Model Number:
-
CDC200KVA
-
Speed:
-
1500/1800rpm
-
Generator Engine:
-
USA Engine
-
Generator Alternator:
-
Stamford;Leroy Somer; Marathon;Leadtech
-
Generator Controller:
-
Deepsea;Smartgen;Meter Panel
-
Generator Canopy:
-
Super silent type;Open type
-
Generator Fuel Tank:
-
Big fuel tank for 8 hours or more
-
Generator Certificate:
-
CE;BV;ISO;Soncap
-
Generator Spare Parts:
-
Avaible
-
Generator Optional:
-
ATS
-
Generator type:
-
4 Stroke
-
Generator Output Power:
-
200KVA
-
Certification:
-
CE
Quick Details
-
Rated Voltage:
-
220V/380V
-
Rated Current:
-
304A@380V
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
1 year or 1000 running hours
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JIUAN
-
Model Number:
-
CDC200KVA
-
Speed:
-
1500/1800rpm
-
Generator Engine:
-
USA Engine
-
Generator Alternator:
-
Stamford;Leroy Somer; Marathon;Leadtech
-
Generator Controller:
-
Deepsea;Smartgen;Meter Panel
-
Generator Canopy:
-
Super silent type;Open type
-
Generator Fuel Tank:
-
Big fuel tank for 8 hours or more
-
Generator Certificate:
-
CE;BV;ISO;Soncap
-
Generator Spare Parts:
-
Avaible
-
Generator Optional:
-
ATS
-
Generator type:
-
4 Stroke
-
Generator Output Power:
-
200KVA
-
Certification:
-
CE
200KVA Generator Detail Specifications
|
200KVA Generator MODEL |
CD-C160KW/200KVA Prime Power |
|
Powered by USA Engine |
|
|
Prime Power (50HZ) |
160KW/200KVA |
|
Standby Power (50HZ) |
180kw/225KVA |
|
Power Factor |
0.8 (Lagging) |
|
Phase Wires |
3-phases 4-Wires |
|
Start Model |
Electric |
|
Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current |
|
Engine Model |
DCEC 6CTA8.3-G2 4 Cycle |
|
Cylinders |
6 |
|
Cylinder Arrangement |
L |
|
Bore x Stroke(mm) |
114X 135 |
|
Compression Ratio |
16.8:1 |
|
Speed |
1500rpm |
|
Cooling Method |
Water – cooled |
|
Starting Method |
24V DC electrical start |
|
Full Load Diesel Consumption (L/H) |
42 |
|
Engine Displacement (L) |
8.3 |
|
Inspiration (L) |
Turbocharged Intercooler |
|
Lube Volume (L) |
36 |
|
Coolant Volume (L) |
62 |
|
Noise (Db) |
≤ 95 |
|
Governor Type |
Electrical Governing |
|
Alternator Model |
Newage Stamford UCI274H or Leadtech LTG274J |
|
Alternator Power |
160KW/200KVA Brushles with AVR |
|
Voltage |
380/220V,400/230V,415/240V,220/127V |
|
Protection |
IP23 |
|
Voltage Regulation |
±4% |
|
Insulation Class |
H |
|
Voltage Control |
AVR |
|
Net Weigh (KGS) |
2200 |
|
Dimensions (L x W x H) mm |
2800*1200*1800 |
|
40FT Container |
4 units |
|
Controller |
Smartgen 6110 or Deepsea 7320 |
|
Standard |
Muffler * 2PCS |
|
|
Battery 80A * 2 PCS |
|
Optional |
ATS (auto transfer switch) |
|
|
AMF(auto mains failure) |
|
|
Trailer |
JIUAN Other Models Generator:
15KVA Diesel Generator CDY15KVA
30KVA Diesel Generator CDY30KVA
60KVA Diesel Generator CDC60KVA
100KVA Diesel Generator CDC100KVA
150KVA Diesel Generator CDC150KVA
200KVA Diesel Generator CDC200KVA
250KVA Diesel Generator CDC250KVA
300KVA Diesel Generator CDC300KVA
500KVA Diesel Generator CDC500KVA
1000KVA Diesel Generator CDC1000KVA
CDC200KVA Diesel Generator with USA engine 6CTAA8.3-G2 200KVA Generator
Generator Photos:

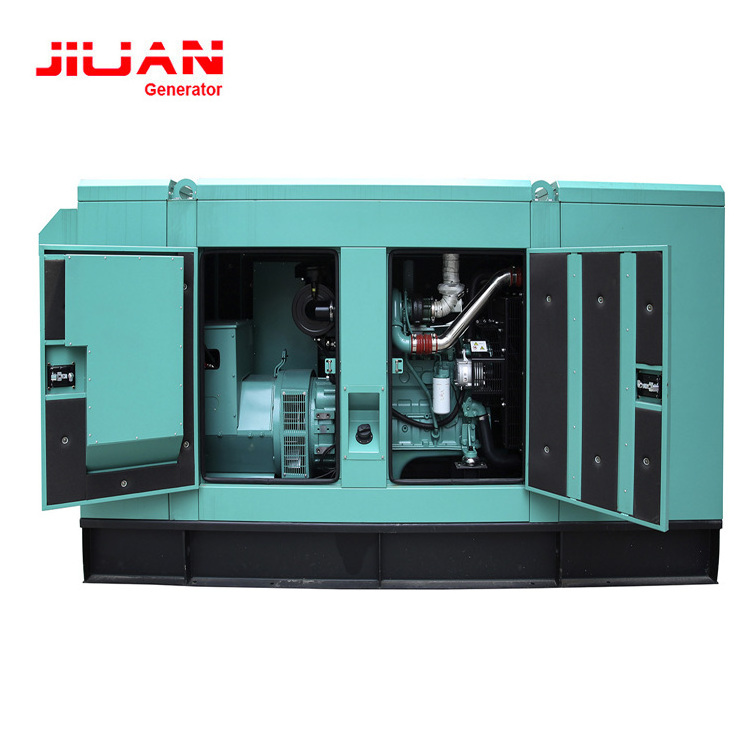

200 KVA Diesel Generator Super Silent Type
150KVA Diesel Generator Openframe Type
200KVA Diesel Generator Photo from Our Customers
Trade Terms of Products
|
Generator Warranty |
1800 hours or 1 year subject to the earlier one. |
|
Delivery Items |
FOB,CNF,CIF,EXW,Delivery Guangzhou |
|
Delivery Time |
15-20 days after receiving advanced payment. |
|
Generator MOQ |
1PCS |
|
Package |
PE Film+Pearl Wool+Iron Frame (standard export packing) |
|
Certificate |
SGS;DCEC Authorized Factory;TUV;Son cap |
|
Loading Port |
Guangzhou,Shenzhen,Shanghai |
|
Payment |
T/T Cash or Western Union |
|
Please give detail needs in your inquiry, so that we can make power solutions for you . |
|
After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number:
0086 15817087202
Terms of Payment
1. T/T
2. Western Union
3. Cash
4. L/C at sight
Introduction of Compa n y
Business Type: Manufacturer
Location: Guangzhou,China (Mainland)
Year Established: 2008
Registration No.: 91440101671832940W
Main Products:
Professional diesel generator OEM factory in Guangzhou.
Cummins Engine for Genset;
Perkins Engine for Genset;
China Engine for Genset;
ISUZU Engine for Genset;
Kubota Engine for Genset;
Lovol Engine for Genset;
Diesel Welding for Genset;
Diesel Water Pump;
Genset Spare parts
Production Line of Product
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA -
5
0KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leateck
