Quick Details
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYZG
-
Year:
-
2021
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1000*900*1800
-
Weight (T):
-
12 T
-
Model Number:
-
YQ
-
Motor Power (kw):
-
45 kw
-
Product name:
-
Automatic Pressing hydraulic press machine 400/500/600ton
-
Keyword:
-
hydraulic press,hydraulic press machine 400 ton
-
Function:
-
metal press machine, sheet metal deep drawing
-
Usage:
-
Metal Press,composite product making, powder briquette compressing
-
Application:
-
door skin, wheelbarrow making, metal stamping,pot, kitchen sink
-
Model:
-
YQ32-400T, YQ32-500T,YQ32-600T
-
Capacity:
-
50ton,63ton, 100ton,150ton,200ton
-
Machine type:
-
Four Column Hydraulic press machine
-
Structure:
-
Cast iron/weled structure
-
Advantage:
-
good quality, good after salt service
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
800
-
Ejector Force (kN):
-
630
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYZG
-
Year:
-
2021
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1000*900*1800
-
Weight (T):
-
12 T
-
Model Number:
-
YQ
-
Motor Power (kw):
-
45 kw
-
Product name:
-
Automatic Pressing hydraulic press machine 400/500/600ton
-
Keyword:
-
hydraulic press,hydraulic press machine 400 ton
-
Function:
-
metal press machine, sheet metal deep drawing
-
Usage:
-
Metal Press,composite product making, powder briquette compressing
-
Application:
-
door skin, wheelbarrow making, metal stamping,pot, kitchen sink
-
Model:
-
YQ32-400T, YQ32-500T,YQ32-600T
-
Capacity:
-
50ton,63ton, 100ton,150ton,200ton
-
Machine type:
-
Four Column Hydraulic press machine
-
Structure:
-
Cast iron/weled structure
-
Advantage:
-
good quality, good after salt service

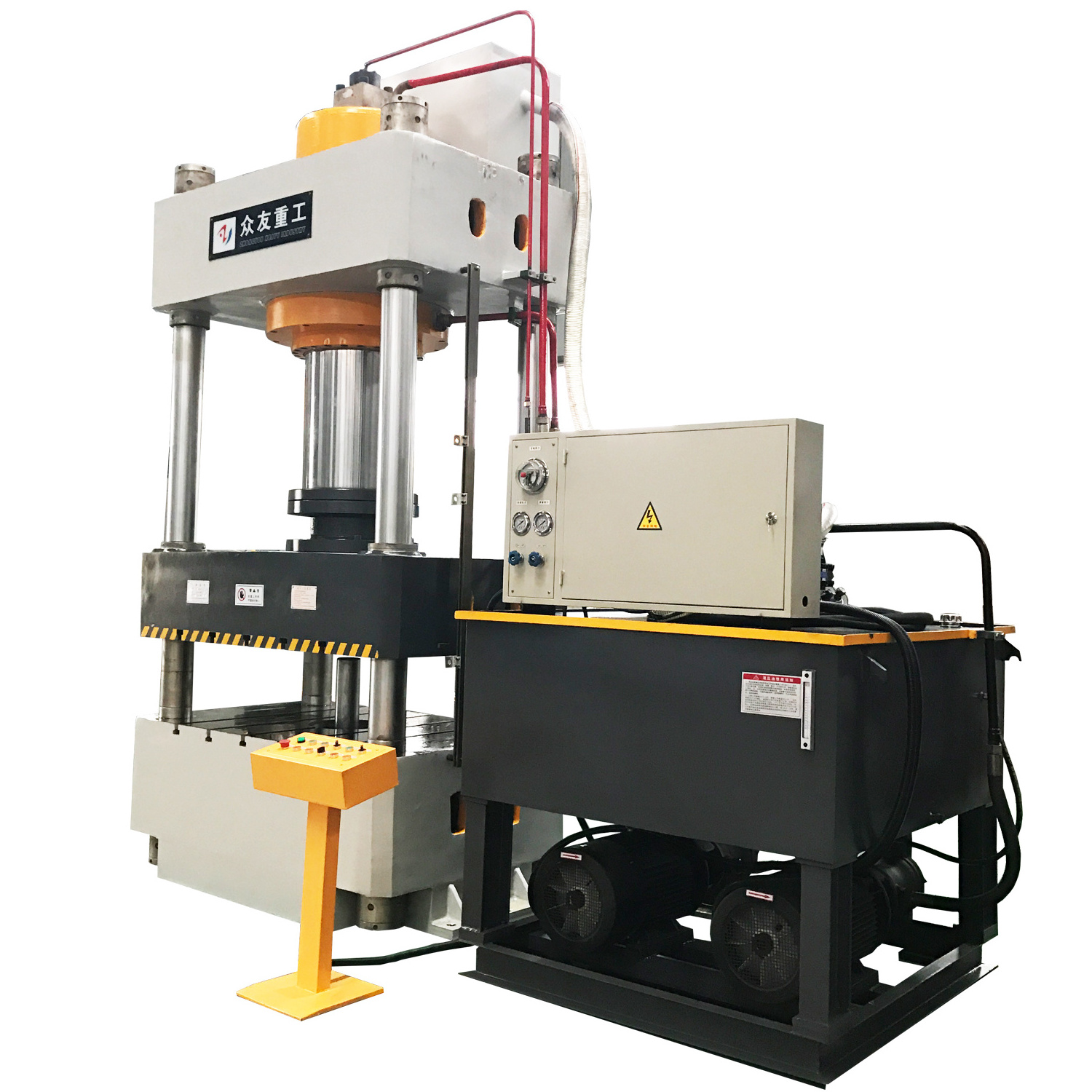

Automatic Pressing hydraulic press machine 400/500/600ton
Automatic Hydraulic press machine Features:
1).Hydraulic machine that used the hydrostatic pressure to process metal, plastic, rubber, wood, powder and other products .
2). It is commonly used in the pressing process and press forming process, such as: forging, stamping, cold extrusion, straightening, bending, flanging, sheet metal deep drawing, powder metallurgy, press-fit etc.
3).Significant technical and economic advantages in reducing weight, reducing the number of parts and the number of molds, improve the stiffness and strength, reduce production costs, etc.
Automatic Pressing Hydrautic Metal Press Machine
Automatic hydraulic press machine characteristics:
1. Three beam four-column structures, after the computer optimized design, economic, and apply.
2. Hydraulic control system uses an integrated cartridge valve systems and reliability, long life.
3. Hydraulic shock is small, reduces piping and leak-point links.
4. Stand-alone electrical control system which is reliable, intuitive motion, easy for maintenance.
5. Centralized control design, two kinds of mode of operation for choose.
6. Setting process can be realized easily.
7. Working pressure, stroke according to the technical needs within the limits prescribed adjustable.
We make our Hydraulic press machine according to our domestic standard and also customized.
Following are the parameter of standard press machine.
| Parameters | Unit | YQ32-315A | YQ32-315B | YQ32-400 | YQ32-630 |
| Nominal Force | KN | 3150 | 3150 | 4000 | 6300 |
| System Pressure | Mpa | 25 | 25 | 25 | 25 |
| Slider Max.opening height | mm | 1250 | 1000 | 1250 | 1500 |
| Slider effective stroke | mm | 800 | 600 | 800 | 900 |
| Effective worktable size(L.RxF.B) | mm | 1260*1160 | 800*800 | 1260*1160 | 1600*1600 |
| Nominal force of upper ejection clinder | KN | 630 | 630 | 630 | 1000 |
| strok of upper ejection cylinder | mm | 300 | 300 | 300 | 300 |
| Slider descending speed | mm/s | 120 | 120 | 120 | 150 |
| Slider pressing speed | mm/s | 8-15 | 8-15 | 8-15 | 10-22 |
| Slider return speed | mm/s | 90 | 90 | 90 | 120 |
All the Parameters of the Automatic Hydraulic metal stamping press machine can be customized according to the product you want to make.
Automatic Hydraulic Sheet Metal Forming Stamping Deep Drawing Press Machine Usage
1. Metal Sheet Deep Drawing
Water tank, wheelbarrow, kitchen sink, stainless steel pot, etc
2. Metal/Carton package Stamping
Metal roof tile,washer etc
3. Sheet metal /Aluminum Embossing
Car body, door skin etc
4. Sheet bending and cutting
Products samples made by Automatic Hydraulic Press Machine
Delivery for Hydraulic Metal stamping press machine:
Lead time : 35-40 days
Package for Hydraulic deep drawing press machine:
1. Plastic fllm wrapped the machine
2.Load into the container
3.Fasten the salt block press machine into the interior of the container with steel rope.
Zhongyou Heavy Industry Machinery Equipment Co;Ltd is a manufacture ONLY for hydraulic press machine , with more than 16 years experience, our main machine are four column hydraulic press machine, C type hydraulic press machine, H type hydraulic press machine and gantry frame hydraulic press machine.
Automatic Hydraulic Press Machine Workshop
After Years experience at this line, we got high praise from home and abroad, many clients visit us from all over the world.
Customers visit factory for purchase hydraulic press machine
