Quick Details
-
Warranty:
-
12 year product , 25 year power output
-
Brand Name:
-
LDK
-
Model Number:
-
M6 M10 M12
-
Place of Origin:
-
Jiangsu
-
Panel Dimensions:
-
2279x1134x35mm
-
Max. Power Output Pmax:
-
530W 535W 540W 545W 550W
-
Solar Panel Type:
-
Mono/Poly/Single glass/Double glass
-
Number of Cells:
-
144 cells/108 cells
-
Cell Specification:
-
Mono 182mm*182mm /Mono 210mm*210mm
-
Cell Type:
-
One sided/Two sided/Monocrystal silicon/Polycrystal silicon
-
Dimensions:
-
1962/2094/2279mm
-
Weight:
-
23kg/27.5kg
-
Application:
-
Residence, Commerce and Ground PV Plant
-
OEM Order:
-
Acceptable
-
Certificate:
-
ISO TUV CQC DEKRA CE Certificated
Quick Details
-

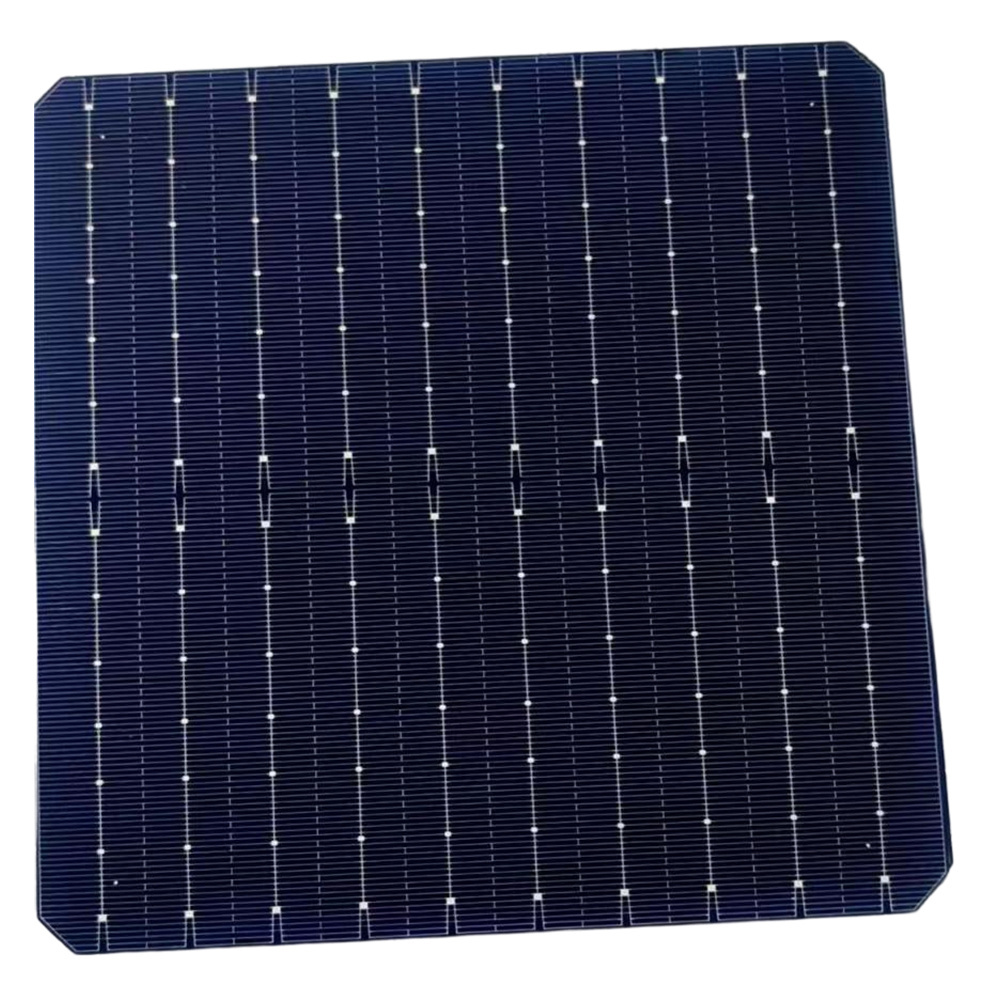

Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON, BIPV
-
Panel Efficiency:
-
22.8%
-
Warranty:
-
12 year product , 25 year power output
-
Brand Name:
-
LDK
-
Model Number:
-
M6 M10 M12
-
Place of Origin:
-
Jiangsu
-
Panel Dimensions:
-
2279x1134x35mm
-
Max. Power Output Pmax:
-
530W 535W 540W 545W 550W
-
Solar Panel Type:
-
Mono/Poly/Single glass/Double glass
-
Number of Cells:
-
144 cells/108 cells
-
Cell Specification:
-
Mono 182mm*182mm /Mono 210mm*210mm
-
Cell Type:
-
One sided/Two sided/Monocrystal silicon/Polycrystal silicon
-
Dimensions:
-
1962/2094/2279mm
-
Weight:
-
23kg/27.5kg
-
Application:
-
Residence, Commerce and Ground PV Plant
-
OEM Order:
-
Acceptable
-
Certificate:
-
ISO TUV CQC DEKRA CE Certificated
Every layer of material we adopt the first-class one to guarantee the quality and service life of the products. In addition, after
decades of manufacturing and serving experience, we have succeed to undergo the market test, and we have the moderate meanwhile
competitive price for our foreign customers.
decades of manufacturing and serving experience, we have succeed to undergo the market test, and we have the moderate meanwhile
competitive price for our foreign customers.
monocrystal.
If you need any other color, power or polycrystalline solar panel, just contact us , we accept OEM and customization mass
production.
|
Model
|
M6 Series
|
|
Junction Box
|
IP68
|
|
Cell Type
|
Mono 182*91mm
|
|
Cable, Length
|
4mm2/350mm
|
|
Number of Cells
|
144 pcs (2x(6x12))
|
|
Weight
|
27.5KG
|
|
Type
|
Half Cut
|
|
Dimensions(L*W*H)
|
2094x1038x35mm
|
|
Type
|
9BB
|
|
|
|
|
Grade
|
Class A
|
|
|
|
|
Color
|
Dark Blue
|
|
Packing
|
31pcs per pallet
|
|
Frame
|
Anodized Aluminum
|
|
40'HQ
|
682PCS
|
|
Max. Power Output Pmax (W)
|
430w
|
435w
|
440w
|
445w
|
450w
|
|
Power Tolerance(%)
|
0~+3
|
0~+3
|
0~+3
|
0~+3
|
0~+3
|
|
Max. Power Voltage Vmp (V)
|
41.27
|
41.47
|
41.67
|
41.87
|
42.06
|
|
Max. Power Current Imp (A)
|
10.42
|
10.49
|
10.56
|
10.63
|
10.70
|
|
Open Circuit Voltage Voc (V)
|
49.65
|
49.85
|
50.05
|
50.26
|
50.43
|
|
Short Circuit Current lsc (A)
|
11.08
|
11.15
|
11.22
|
11.29
|
11.36
|
|
Module Effiffifficiency (%)
|
19.78
|
20.01
|
20.24
|
20.47
|
20.70
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Model
|
M10 Series
|
|
Junction Box
|
IP68
|
|
Cell Type
|
Mono 182x91mm
|
|
Cable, Length
|
4mm2/350mm
|
|
Number of Cells
|
144 pcs (2x(6x12))
|
|
Weight
|
27.5kg
|
|
Type
|
Half Cut
|
|
Dimensions(L*W*H)
|
2279x1134x35mm
|
|
Type
|
10BB
|
|
|
|
|
Grade
|
Class A
|
|
|
|
|
Color
|
Dark Blue
|
|
Packing
|
31pcs per pallet
|
|
Frame
|
Anodized Aluminum
|
|
40'HQ
|
620PCS
|
|
Max. Power Output Pmax (W)
|
530w
|
535w
|
540w
|
545w
|
550w
|
|
Power Tolerance(%)
|
0~+3
|
0~+3
|
0~+3
|
0~+3
|
0~+3
|
|
Max. Power Voltage Vmp (V)
|
40.74
|
40.88
|
41.01
|
41.15
|
41.28
|
|
Max. Power Current Imp (A)
|
13.01
|
13.09
|
13.17
|
13.25
|
13.33
|
|
Open Circuit Voltage Voc (V)
|
49.26
|
49.40
|
49.53
|
49.67
|
49.80
|
|
Short Circuit Current lsc (A)
|
13.69
|
13.77
|
13.85
|
13.93
|
14.01
|
|
Module Efficiency (%)
|
20.51
|
20.70
|
20.89
|
21.09
|
21.28
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Model
|
M12 Series
|
|
Junction Box
|
IP68
|
|
Cell Type
|
Mono 210x105mm
|
|
Cable, Length
|
4mm2/350mm
|
|
Number of Cells
|
108 pcs (2x(6x9))
|
|
|
|
|
Type
|
Half Cut
|
|
Dimensions(L*W*H)
|
1962x1303x35mm
|
|
Type
|
12BB
|
|
Packing
|
31pcs per pallet
|
|
Grade
|
Class A
|
|
40'HQ
|
744PCS
|
|
Weight
|
27.5kg
|
|
|
|
|
Frame
|
Anodized Aluminum
|
|
|
|
|
Max. Power Output Pmax (W)
|
525w
|
530w
|
535w
|
540w
|
545w
|
|
Power Tolerance(%)
|
0~+3
|
0~+3
|
0~+3
|
0~+3
|
0~+3
|
|
Max. Power Voltage Vmp (V)
|
30.61
|
30.81
|
31.01
|
31.21
|
31.41
|
|
Max. Power Current Imp (A)
|
17.15
|
17.20
|
17.25
|
17.30
|
17.35
|
|
Open Circuit Voltage Voc (V)
|
36.79
|
37.01
|
37.23
|
37.44
|
37.65
|
|
Short Circuit Current lsc (A)
|
18.16
|
18.21
|
18.26
|
18.32
|
18.37
|
|
Module Effiffifficiency (%)
|
20.54
|
20.73
|
21.12
|
21.32
|
21.71
|
Our back sheet is normally white, if you want the black type, it needs to be customized , please contact our sales.
Dear buyers, we supply not only mono crystal solar panel, but also polycrystal solar panel, mono type's power range from 430w to 670w, but the poly type's power range from 420w to 450w, welcome consult us.
LDK
Brand Introduction
Xinyu LDK Power Supply Technology Co., Ltd founded in 2005, whose holding company now is Jiangxi Haiyuan Composites Technology Co Ltd. (stock code:002529, listed in NYSE).
Now its current market value reaches 4.9 billion Yuan, equals 700 million US dollars.
If you want to know more about our brand’s story and history you could click and browse the website of our domestic website (it's Chinese, if you are using Google Chrome, you can automatically translated into your
mother tongue
):
(Baike of Baidu)
https://baike.baidu.com/item/%E8%B5%9B%E7%BB%B4%E9%9B%86%E5%9B%A2/8445305?fr=aladdin
Our Certificates
We have already acquired a complete set of certificate such like ISO TUV CQC DEKRA CE.
Our Partner
We supply and manufacture about 1000Mw annually in collaboration with many partners at home and abroad.
Our domestic partners: JA solar, Trina solar etc. Our international partners: EPC, Enfinity, ESPE, EA Solar, SPI etc.
Our domestic partners: JA solar, Trina solar etc. Our international partners: EPC, Enfinity, ESPE, EA Solar, SPI etc.
Market Distribution
Sell
to Europe(28.00%),Africa(7.00%), Mid East(6.00%),Domestic Market(23.00%),Oceania(8.00%), Asia(21.00%),North America(4.00%),
South America(2.00%), Other(1.00%)
1. who are we?
We are based in Jiangsu, China, start from 2019, sell to Europe(28.00%),Africa(7.00%), Mid East(6.00%),Domestic Market(23.00%),Oceania(8.00%), Asia(21.00%),North America(4.00%), South America(2.00%), Other(1.00%) There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panel, Solar Cell, Storage Battery, Solar Inverter, Solar System, Solar controller, Solar Cable
4. why should you buy from us not from other suppliers?
dedicated to solar panel and solar related product for 18 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
