Multiple chuck is optional
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Y) (mm):
-
450 mm
-
Spindle Taper:
-
bt40-150
-
Dimension(L*W*H):
-
2250*2150*2350
-
Weight (T):
-
3.6 T
-
Table Travel (Z) (mm):
-
500 mm
-
Range of Spindle Speed(r.p.m):
-
8000 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
1 - 8000 mm/min
-
Rapid Feed Speed(m/min):
-
30/30/24
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
120V/220V/380V
-
Marketing Type:
-
New Product 2024
-
Brand Name:
-
WESTE
-
Keywords:
-
Vmc Machine Center
-
CNC or Not:
-
CNC Systemn
-
Product type:
-
Cnc 3 Axis Machine
-
Key word:
-
High Speed Vertical
-
Application:
-
Metal Processing
-
Color:
-
Customized Option
-
Model Number:
-
VMC650
Quick Details
-
Table Size (mm):
-
900*420mm
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
650 mm
-
Table Travel (Y) (mm):
-
450 mm
-
Spindle Taper:
-
bt40-150
-
Dimension(L*W*H):
-
2250*2150*2350
-
Weight (T):
-
3.6 T
-
Table Travel (Z) (mm):
-
500 mm
-
Range of Spindle Speed(r.p.m):
-
8000 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
1 - 8000 mm/min
-
Rapid Feed Speed(m/min):
-
30/30/24
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
120V/220V/380V
-
Marketing Type:
-
New Product 2024
-
Brand Name:
-
WESTE
-
Keywords:
-
Vmc Machine Center
-
CNC or Not:
-
CNC Systemn
-
Product type:
-
Cnc 3 Axis Machine
-
Key word:
-
High Speed Vertical
-
Application:
-
Metal Processing
-
Color:
-
Customized Option
-
Model Number:
-
VMC650
Product descriptions from the supplier

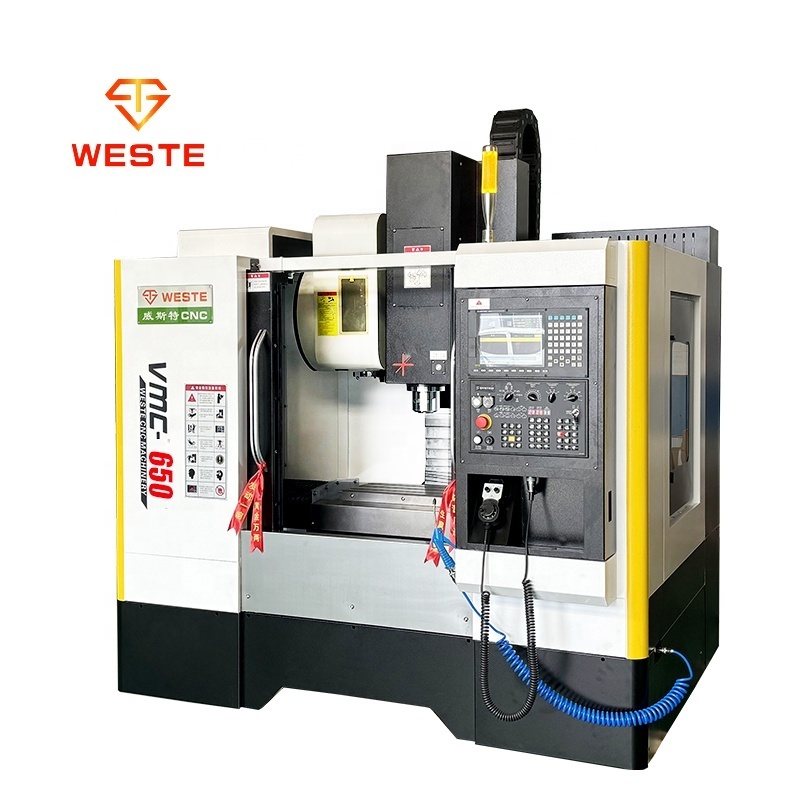

VMC series CNC vertical machining center is x, y and Z axis servo control semi closed loop, with compact and reasonable structure and overall dimensions, and the main shaft is driven by servo motor. It can realize the processing of various processes such as drilling, milling, boring, expanding, reaming and tapping in one clamping for various complex parts such as plates, shells and molds. It is suitable for the processing of parts in automobile parts, electrical instruments, motorcycles, tools, hardware,motors and other industries.
Product configuration:
Standard accessories :
Fanuc control system
automatic lubrication system
Full guard
16T dis type Antomatic tool changer
Manual chip conveyor
anchor bolts and spacers
work condition warning light
portable blowing crumbs air gun
automatic lubrication system
Full guard
16T dis type Antomatic tool changer
Manual chip conveyor
anchor bolts and spacers
work condition warning light
portable blowing crumbs air gun
Optional accessories :
Control system :Fanuc 0i-mf,GSK,Mitsubishi,Siemens etc.
12T Bamboo hat type tool changing system
Chain type automatic chip conveyor
spiral type automatic chip conveyor
Spindle center water spray(CTS)
10000 rpm or 12000 rpm Direct type spindle
spindle circinal water spray
spindle oil cooler
Oil mist absorption filter
The forth axis
The fifth axis
12T Bamboo hat type tool changing system
Chain type automatic chip conveyor
spiral type automatic chip conveyor
Spindle center water spray(CTS)
10000 rpm or 12000 rpm Direct type spindle
spindle circinal water spray
spindle oil cooler
Oil mist absorption filter
The forth axis
The fifth axis
|
Specifications
|
unit
|
VMC430
|
VMC640
|
VMC650
|
|
Table size
|
mm
|
700*260
|
800*320
|
900*420
|
|
Max. worktable load
|
kg
|
200
|
300
|
400
|
|
T slot
|
mm
|
3-16-75
|
3-16-90
|
5-16-75
|
|
X axis travel
|
mm
|
500
|
600
|
650
|
|
Y axis travel
|
mm
|
320
|
400
|
450
|
|
Z axis travel
|
mm
|
400
|
450
|
500
|
|
Distance between spindle center and column surface
|
mm
|
330
|
430
|
480
|
|
Distance between spindle nose and table surface
|
mm
|
70-470
|
80-530
|
120-620
|
|
Max. spindle speed
|
rpm
|
12000
|
12000
|
12000
|
|
Spindle taper
|
mm
|
BT40
|
BT40
|
BT40
|
|
spindle motor power
|
KW
|
5.5
|
7.5
|
7.5
|
|
X/Y/Z axis rapid traverse
|
m/min
|
24/24/20
|
24/24/20
|
30/30/24
|
|
Position accuracy
|
mm
|
±0.005
|
±0.005
|
±0.005
|
|
Repeat positioning accuracy
|
mm
|
±0.003
|
±0.003
|
±0.003
|
|
Machine dimension
|
mm
|
2000*1850*1800
|
2050*1850*2250
|
2250*2150*2350
|
|
Machine weight
|
kg
|
1800
|
2600
|
3600
|
OPTIONAL CONFIGURATION
1.AUTOMATIC TOOL CHANGER
TAIWAN OKADA TOOL LIBRARY
1. Standard Taiwan robotic arm 24/32 disc type tool magazine.
2. Tool changing speed 2-3 seconds.
3. Brand:OKADA.
3. Brand:OKADA.
Brand:AIMACH
2.CONTROL SYSTEM
FANUC
KND
GSK
SYNTEC
SIEMENS
3. 4/5 AXIS ROTARY TABLE
chuck
4. OIL COOLER AND
AUTO.CHIP REMOVER
OIL COOLER
Cooling the main shaft,improving the processing precision.
AUTO.CHIP REMOVER
Chain type chip conveyorcan be choosed as optinal.Need extra cost.
CNC MACHINING COMPONENTS
AUTOMATIC LUBRICATION SYSTEM
a timing and quantitative automatic lubrication system from HERG each lubrication point is equipped with a quantitative
distributor
（
Pneumatic components using Taiwan brand
）
Original Fanuc system
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioningaccuracy can reach μm class
.
2. Brand: HIWIN
.
SCREW AND COUPLING
1 China famous brand lead screw,Brand: HIWIN
.
2. lead screw bearing using SKF or NACHl bearing.
3. coupling R+W directly connected
.
Shandong Weste CNC Machine Tool Co., Ltd. is a CNC machine tool manufacturing company that integrates design, manufacturing, sales, and service, covering an area of more than 5000 square meters. The company has been developing for 20 years, and its main products include vertical machining centers, horizontal machining centers, gantry machining centers, five axis machining centers, CNC inclined bed lathes, CNC milling machines, ordinary milling machines, drilling machine series, and other CNC equipment.
the company has a stable supply chain to provide guarantees for the supply of raw materials. The precise quality inspection equipment and modern management mode have laid a solid foundation for
producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service.
The company has a group of experienced mechanical engineering designers and skilled assembly technicians, adhering to the principles of technological innovation, management innovation, and talent innovation to provide customers with excellent quality services. We warmly welcome domestic and foreign friends to discuss business, enhance understanding, and work together to create brilliance!
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
