China Techpro 4 axis CNC Router MDF Playwood Bridge Saw Wood CNC Saw Cutting Machine with good price

China Techpro 4 axis CNC Router MDF Playwood Bridge Saw Wood CNC Saw Cutting Machine with good price

FOB Reference Price: Get Latest Price

≥1 Sets

US $9800

≥10 Sets

US $8900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.01 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.01 mm

Spindle Motor Power(kW):: 6kw

Place of Origin:: Shandong, China

Brand Name:: TECHPRO CNC

Voltage:: AC380V/50HZ

Dimension(L*W*H):: 1300*2500*200mm

Power (kW):: 16

Weight (KG):: 2000

Product name:: Techpro CNC wood router

Application:: Furniture Industry

Keywords:: intelligent furniture production line

Control system:: Syntec

Spindle:: 6kw

Function:: Panel Furniture Automated Cutting

Transmission:: Automatic feeding system with robot gripper

Working area:: 1300x2500mm/1300x2800mm/Customized

Motor:: Japan Yaskawa Servo Motor

Table:: Vacuum Adsorption + T-slot

Quick Details

Working Table Size(mm):: 1300×2500

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 0 - 24000 rpm

Positioning Accuracy (mm):: 0.01 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.01 mm

Spindle Motor Power(kW):: 6kw

Place of Origin:: Shandong, China

Brand Name:: TECHPRO CNC

Voltage:: AC380V/50HZ

Dimension(L*W*H):: 1300*2500*200mm

Power (kW):: 16

Weight (KG):: 2000

Product name:: Techpro CNC wood router

Application:: Furniture Industry

Keywords:: intelligent furniture production line

Control system:: Syntec

Spindle:: 6kw

Function:: Panel Furniture Automated Cutting

Transmission:: Automatic feeding system with robot gripper

Working area:: 1300x2500mm/1300x2800mm/Customized

Motor:: Japan Yaskawa Servo Motor

Table:: Vacuum Adsorption + T-slot

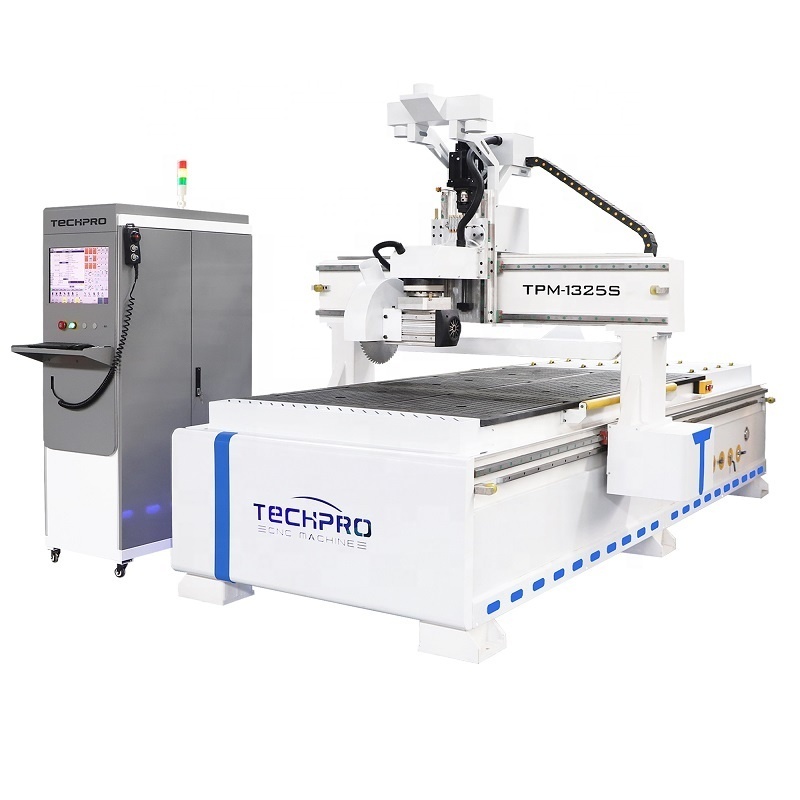

China Techpro 4 axis CNC Router MDF Playwood Bridge Saw Wood CNC Saw Cutting Machine with good price

Professional wood saw blade cutting CNC router, 4axis LNC computer control system, adjustable 0-180 degree rotation cutting angle, fast and efficient cutting of MDF plywood, solid wood board, batch cutting, supporting upgraded 6kw saw blade cutting+9kw ATC spindle, essential equipment for furniture factories.

Products Description

TechPro Saw Blade CNC Router Featrues :

1. Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger and stability. 2. Equipped with a large protective cover and safety grating equipment to protect the safety of operators. 3. Taiwan LNC / Syntec control system with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing. 4. With 6.0kw saw balde, can rotate 0 to +90 degrees and -90 to 0 degrees, and can setting any angle cut. 6. Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc. 5. Independent control cabinet,Stronger power and weak power separate, maintenance easily. 6. This saw balde CNC router machine is suitable for cutting the panel furniture cabinets, and its efficiency is 1.5 times than spindle cutting.

Application of TechPro Saw Blade CNC Router :

1. Furniture wooden craft decoration: Solid wood furniture, MDF paint-free doors, composite doors, cabinet windows, bedside tables, screen carvings, 2D/3D large-area flat plate carving. 2. Advertising industry: Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic cutting 3. Metal Industry: Aluminum, copper soft metal material cutting and drilling. 4. Artwork and Decoration: wood crafts; gift box; jewelry box.etc

Machine Configuration

Model	TPM1325S
Working area	13002500300mm (Optional 15003000/20503050*300mm)
Control system	Taiwan LNC / Syntec control system
Spindle	HQD 6.0kw saw blade head (can rotate -90 to 0 degrees + 0 to 90 degrees)
Motor and Driver	Leadshine / Delta / Yaskawa AC servo motor and driver
Inverter	Fuling / Delta inverter
Table surface	T-slot and vacuum adsorption table
Structure	Heavy Duty 8-10mm Steel machine bed; 12-14mm Moving Steel Gantry
Lubrication system	Manual lubrication system
Transmission	X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y axis: Taiwan Hiwin square guide rails with 30mm
Electric Parts	Schneider brand
Tool Sensor	Automatic probe
Vacuum Pump	5.5kw vacuum pump
Software	Artcam / Ucancam / Aspire / Fushion360 etc
Working Voltage	380V or 220V /3phase/1 Phase
Optional	Vertical Cutting Spindle
		Loading and Unloading Table
		C Axis + Aggregates
		Side Rotary Device
