Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
dinglian
-
Model Number:
-
A16
-
Product name:
-

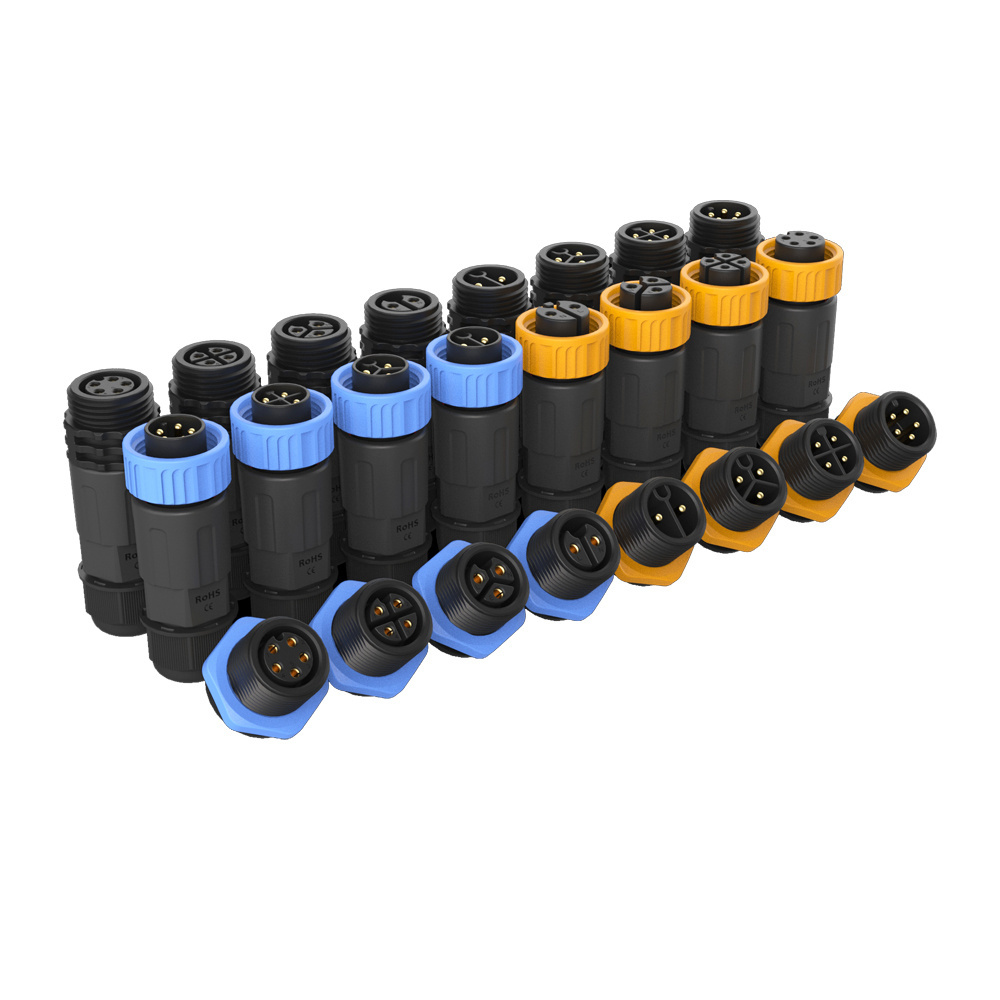

A16 self-locking male plug + female docking
-
Color:
-
Black
-
Material:
-
copper alloy
-
Connector:
-
Equivalent
-
Certificate:
-
ISO9001
-
waterproof level:
-
IP65/IP67
-
theme material:
-
high temperature thermoplastic
-
ambient temperature:
-
-40°C-105°C
-
Terminal material:
-
Copper alloy with gold plating
Quick Details
-
Type:
-
connector waterproof
-
Application:
-
Outdoor lighting, LED, sensor, production automation
-
Gender:
-
Male and Female
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
dinglian
-
Model Number:
-
A16
-
Product name:
-
A16 self-locking male plug + female docking
-
Color:
-
Black
-
Material:
-
copper alloy
-
Connector:
-
Equivalent
-
Certificate:
-
ISO9001
-
waterproof level:
-
IP65/IP67
-
theme material:
-
high temperature thermoplastic
-
ambient temperature:
-
-40°C-105°C
-
Terminal material:
-
Copper alloy with gold plating
Products Description
|
Number of Poles
|
|
2pin
|
3pin
|
4pin
|
5pin
|
6pin
|
7pin
|
8pin
|
2+4
|
||||||||
|
Voltage Rating
|
|
250V
|
250V
|
250V
|
250V
|
125V
|
50V
|
50V
|
250V+50V
|
||||||||
|
Current Rating
|
|
15A
|
15A
|
10A
|
10A
|
5A
|
5A
|
5A
|
10A+3A
|
||||||||
|
Wire Section
|
Wire Section
|
0.75mm²-1.5mm²
|
0.75mm²-1.5mm²
|
0.5mm²-1.0mm²
|
0.5mm²-1.0mm²
|
0.25mm²-0.5mm²
|
0.25mm²-0.5mm²
|
0.25mm²-0.5mm²
|
1.5mm²-0.5mm²
|
||||||||
|
Temperature Rating
|
|
-40 °C-105 ℃
|
|
|
|
|
|
|
|
||||||||
|
Application
|
|
Outdoor lighting, LED, sensor, production automation
|
|
|
|
|
|
|
|
||||||||
|
waterproof level
|
|
IP65/IP67
|
|
|
|
|
|
|
|
||||||||
|
The main material
|
|
high temperature thermoplastic
|
|
|
|
|
|
|
|
||||||||
|
Terminal material
|
|
Gold-plated copper alloy
|
|
|
|
|
|
|
|
||||||||
More Products
About Us
Certifications
Assembly Line
Transportation & Packaging
FAQ
1.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
2. Can you offer samples ?
A: We can supply the sample if we have ready parts in stock, but you need to bear the courier cost.
3
.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
4.How about your delivery time?
A: Generally, it will take 5 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
6.What is the packing ?
A: Well , we pack it in neutral brown cartons. Also your packing requirement is considered.
7.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
