Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
Garage Door Opener, CSPD-1200
-
Product name:
-
Garage Door Opener
-
Max. pull force:
-
1200N
-
Max. door weight (Balanced):
-
130kg
-
Opening / Closing speed:
-
160mm/Second
-
Input voltage:
-
220-240V / 110-127V, 50-60 Hz
-
Max. door area:
-
10.0 ㎡
-
Max. door height:
-
2400~3500mm
-
Drive mechanism:
-
Chain/Belt
-
L.E.D:
-
24V/15pcs LED bulbs
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
Garage Door Opener, CSPD-1200
-
Product name:
-
Garage Door Opener
-
Max. pull force:
-
1200N
-
Max. door weight (Balanced):
-
130kg
-
Opening / Closing speed:
-
160mm/Second
-
Input voltage:
-
220-240V / 110-127V, 50-60 Hz
-
Max. door area:
-
10.0 ㎡
-
Max. door height:
-
2400~3500mm
-
Drive mechanism:
-
Chain/Belt
-
L.E.D:
-
24V/15pcs LED bulbs
Product Paramenters
|
Model Number
|
Garage Door Opener
|
|
Model Number
|
CSPD-800,CSPD-1000,CSPD-1200
|
|
Type
|
Garage Door Opener
|
|
Application
|
Garage & Shed
|
|
Product name
|
Soft Start & Soft Stop Remote Control Smart Wifi Garage Door Opener
|
|
Input voltage
|
220-240V / 110-127V, 50-60 Hz
|
|
Max. pull force
|
800 N,1000 N,1200 N
|
|
Max. door area
|
10.0 ㎡,15.0 ㎡,18.0 ㎡
|
|
Max. door weight (Balanced)
|
80 kg,100 kg,130kg
|
|
Max. door height
|
2400~3500mm
|
|
Drive mechanism
|
Chain/Belt
|
|
Opening / Closing speed
|
160mm/Second
|
|
L.E.D
|
24V/15pcs LED bulbs
|
|
Limit setting
|
Electronic
|
|
Transformer
|
Overload protection technology
|
|
Radio frequency
|
433.92 MHz
|
|
Coding format
|
Rolling code (7.38 x 1019 Combinations)
|
|
Status display transmitter
|
2 X
|
|
Code storage capacity
|
50 different codes
|
|
Caution light terminal
|
Included
|
|
Working temperature
|
-40℃ - +50℃
|
|
Safety protection
|
Soft start & Soft stop, photo cell option, caution light option
|
|
Protection level
|
IP20
|

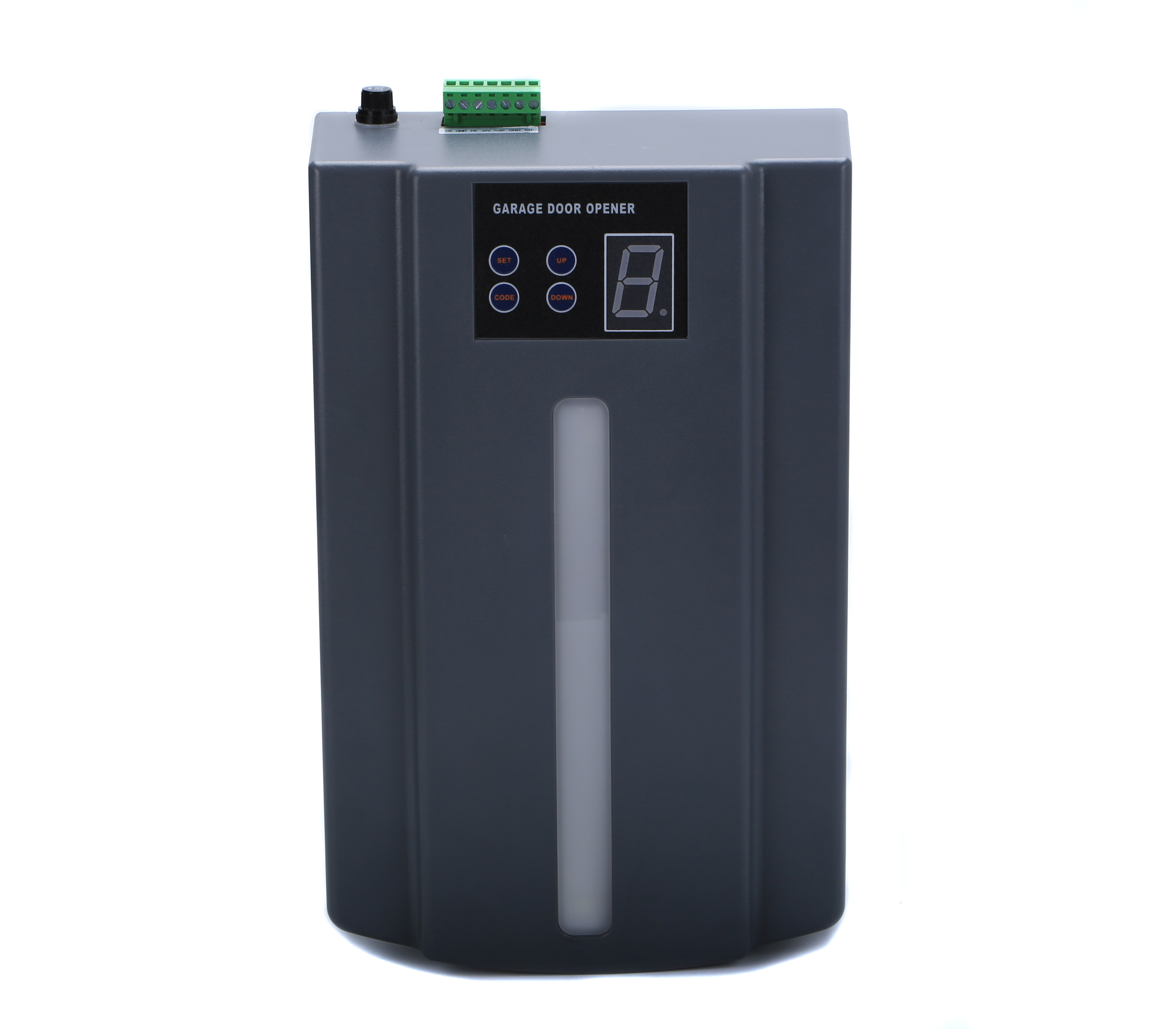

Product Display
Function&Features
1. Obstruction force adjustment
The minimum force display “1” and it can be adjusted upward. Display “5” means the maximum force.
2. Travel speed adjustment
“8”appears on the display means the 80% of the travel speed. Display “A”
means the full speed 160mm/s or 200mm/s.
3. Reversal height adjustment
“0” appears on the display means the door will rebound to the top. Display “1~9” means the door will rebound to the position of
the whole travel. One tenth to Nine tenth of the whole travel etc.
4. Partial open/height
“0”appears on the display means close the partial open function. Display“1~9”means to set the different partial open position of
the whole travel.
5. Transmitter button recognition function
“0”appears on the display means the buttons recognition function is closed. Display“1” means the buttons recognition function is
open.
6. Codes memory quantity
“A” appears on the display means the maximal code memory quantity is 50pcs. Press UP/DOWN button once, to increase or decrease
quantity. The code memory quantity is set on 5pcs*N, N=1~9. (The quantity is the multiple of 5).
7. Maintenance alarm
“t”appears on the display and led light flashes 10 times quickly means the garage door and motor need total maintenance.
8. Automatic safety reverse
Automatic stop / automatic reverse are controlled by our software of circuit boards. We are circumspect to protect your children,
pet or other goods.
9. Soft start / Soft stop
Ramping speed up and down at the start and end of each cycle reduces stress on the door and opener for longer life, and makes for
quieter operations.
10. Auto-Close
Auto- Close ensures peace of mind and keeps your house secure by automatically closing the door upon entering or exiting the
garage.
11. Self learning open and close obstruction force
The amount of opener power for different stages of the door’s travel is learnt during setup and is constantly re-profiled. Opener
force measurement automatically adjustment in a suitable range.
12. Electronic limit, simple adjustment.
You only need control the limit setup from control panels to adjust it exactly, the simple and quick process for any peoples.
13. Available terminal for Photo beams & Extra receivers & Wire or wireless wall switch
& Caution light & Pass door protection device.
14. Energy saving - L.E.D courtesy light
3 minutes L.E.D light delay, switching on with each cycle to illuminate your darkened garage.
15. Battery backup available
Openers could be supplied power with our battery backup once the power failure at your home.
16. Self-Lock in gear motors
Gear motor will self-lock with its disengagement systems.
17. Manual release
Don't worry about the power failure, the manual release system is a solution for operation the door at any time.
18. Transmitter technology
Rolling Code technology (7.38 x 1019 Combinations), 433.92 MHz frequency, 4 channels design to ensure you can control 4 different
doors with one transmitter.
19. Applications
With as little as 30mm required between the ceiling and the highest point of the door travel, the opener can be flush mounted for
low headroom applications.
20. Metal bottom plate, stronger and security.
21. Up / Down moving operation buttons (UP / DOWN)
The minimum force display “1” and it can be adjusted upward. Display “5” means the maximum force.
2. Travel speed adjustment
“8”appears on the display means the 80% of the travel speed. Display “A”
means the full speed 160mm/s or 200mm/s.
3. Reversal height adjustment
“0” appears on the display means the door will rebound to the top. Display “1~9” means the door will rebound to the position of
the whole travel. One tenth to Nine tenth of the whole travel etc.
4. Partial open/height
“0”appears on the display means close the partial open function. Display“1~9”means to set the different partial open position of
the whole travel.
5. Transmitter button recognition function
“0”appears on the display means the buttons recognition function is closed. Display“1” means the buttons recognition function is
open.
6. Codes memory quantity
“A” appears on the display means the maximal code memory quantity is 50pcs. Press UP/DOWN button once, to increase or decrease
quantity. The code memory quantity is set on 5pcs*N, N=1~9. (The quantity is the multiple of 5).
7. Maintenance alarm
“t”appears on the display and led light flashes 10 times quickly means the garage door and motor need total maintenance.
8. Automatic safety reverse
Automatic stop / automatic reverse are controlled by our software of circuit boards. We are circumspect to protect your children,
pet or other goods.
9. Soft start / Soft stop
Ramping speed up and down at the start and end of each cycle reduces stress on the door and opener for longer life, and makes for
quieter operations.
10. Auto-Close
Auto- Close ensures peace of mind and keeps your house secure by automatically closing the door upon entering or exiting the
garage.
11. Self learning open and close obstruction force
The amount of opener power for different stages of the door’s travel is learnt during setup and is constantly re-profiled. Opener
force measurement automatically adjustment in a suitable range.
12. Electronic limit, simple adjustment.
You only need control the limit setup from control panels to adjust it exactly, the simple and quick process for any peoples.
13. Available terminal for Photo beams & Extra receivers & Wire or wireless wall switch
& Caution light & Pass door protection device.
14. Energy saving - L.E.D courtesy light
3 minutes L.E.D light delay, switching on with each cycle to illuminate your darkened garage.
15. Battery backup available
Openers could be supplied power with our battery backup once the power failure at your home.
16. Self-Lock in gear motors
Gear motor will self-lock with its disengagement systems.
17. Manual release
Don't worry about the power failure, the manual release system is a solution for operation the door at any time.
18. Transmitter technology
Rolling Code technology (7.38 x 1019 Combinations), 433.92 MHz frequency, 4 channels design to ensure you can control 4 different
doors with one transmitter.
19. Applications
With as little as 30mm required between the ceiling and the highest point of the door travel, the opener can be flush mounted for
low headroom applications.
20. Metal bottom plate, stronger and security.
21. Up / Down moving operation buttons (UP / DOWN)
