Quick Details
-
Dimension(L*W*H):
-
11500 X 5500 X 13800
-
Weight:
-
20500 - 550000KGS
-
Air volume:
-
36900 - 1332000m3 / h
-
Filter area:
-
410 - 14800m2
-
Filter rate:
-
0.8 - 1.2 m / min
-
Equipment resistance:
-
1500 - 1700 Pa
-
Particle concentration:
-
< 1000g / m3
-
Dust emission concentration:
-
<20mg
-
Compressed air:
-
0.5 - 0.7 Mpa
-
Compressed air volume:
-
0.3 - 2.5 m3
-
Bag filter under negative pressure:
-
<5000 pa
-
Product name:
-

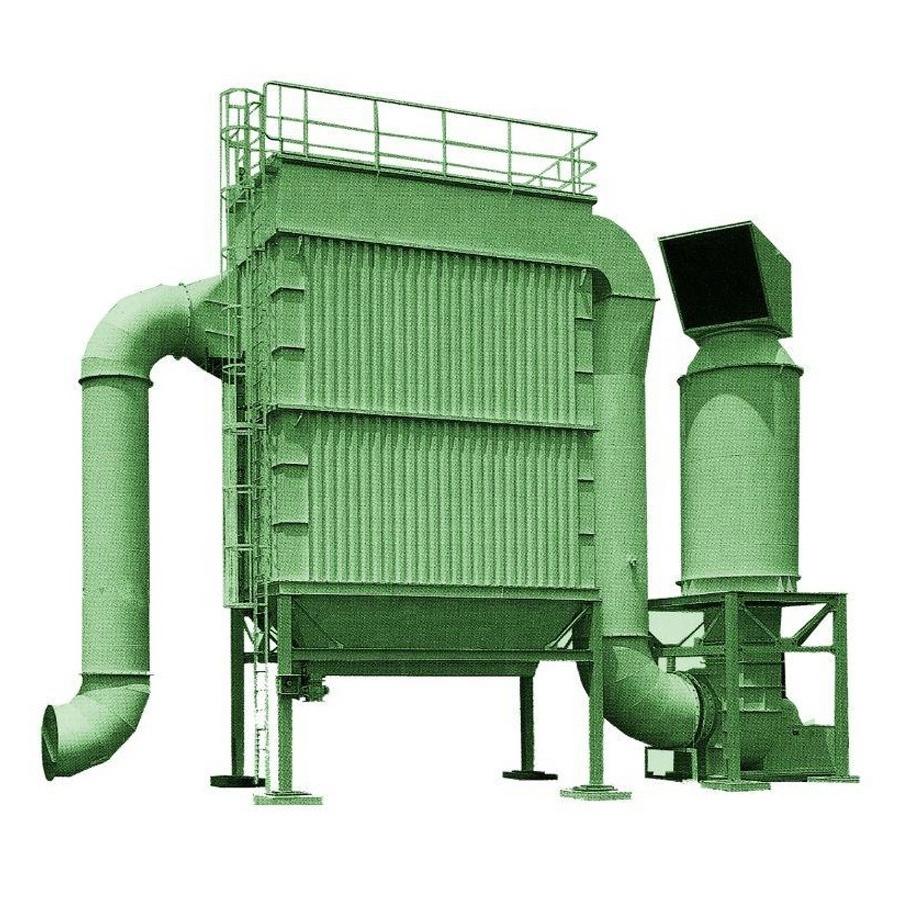

Large project purify dust gas LCM long bag pulse filter dust collector
-
Certification:
-
CE ISO Certification
Quick Details
-
Minimum Particle Size:
-
1 micron
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
CNP
-
Dimension(L*W*H):
-
11500 X 5500 X 13800
-
Weight:
-
20500 - 550000KGS
-
Air volume:
-
36900 - 1332000m3 / h
-
Filter area:
-
410 - 14800m2
-
Filter rate:
-
0.8 - 1.2 m / min
-
Equipment resistance:
-
1500 - 1700 Pa
-
Particle concentration:
-
< 1000g / m3
-
Dust emission concentration:
-
<20mg
-
Compressed air:
-
0.5 - 0.7 Mpa
-
Compressed air volume:
-
0.3 - 2.5 m3
-
Bag filter under negative pressure:
-
<5000 pa
-
Product name:
-
Large project purify dust gas LCM long bag pulse filter dust collector
-
Certification:
-
CE ISO Certification
Introduction
PERFORMANCE SPECIFICATIONS
(1) Filter bag material:
a. In general conditions, temperature < 120 degree , use the polyester fiber needle felt of 450~ 500 g /m2.
b. In the flammable and explosive occasions, please indicate the antistatic polyester fiber needle felt filter material.
c. When the temperature is of 130 ~ 250 degree: please indicate to use filter material resistant to high temperature of Nomex needled felt or Ryton, according to the selected conditions. When ordering, please indicate above or consult with us.
(2) Control mothods:
a. soot cleaning controller. It is opened timely to the offline and electromagnetic pulse valve by soot cleaning controller according to set program.
b. the control cabinet. The matched programmable device control the offline valve, electromagnetic pulse valve, discharge mechanism and the relevant filter, sensor components to clean the dust with the differential pressure or timing, hand operaton. And monitor the pressure and temperature etc.
We provide all kinds of standard export packing for cargo protection. The bag filter will be fixed on the container. The filter bag and cages will be fixed in corrugated box and steel framed structure.
1. Enquiries quickly reply within 24 hours.
2. After-sales service, rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours. We can arrange professional engineers arrived at equipment location within 48 working hours for problem solved.
3. The dust collector design according to the specific condition of dust removal technology. The wind network project design for all system. To be the optimal structure design.
4. The lowest equipment price whole network in alibaba Welcome to rate of the price. If our price is higher, we will return twice of our quoted price difference to you. Please prompt before sign the contract with us. Due to our good faith principle.
5. The bag filter equipment over 20 years working life.
6. Associated with equipment spare parts, ensure the replacement parts within 20 years.
7. If accessories stop production or update, to ensure that the replacement parts can be normal use, and keep noticed one year before the spare parts stop production.
8. Ensure easy operation and absolutely no worries about future
