Quick Details
-
Product name:
-
Key Card Door Entry Systems
-
Material:
-
304 stainless steel,moisture proof, fire retardant
-
Certificate:
-
CE,FCC,BHMA,SASO, Fidelo/Opera
-
Mortise:
-
ANSI mortise or European standard mortise
-
Card option:
-
RFID,M1K / S50 card or 125 KHz Temic card
-
Size:
-
L95mm*W62mm*H26.8mm
-
Suitable door thickness:
-
30-55 mm
-
PMS interface:
-
Fidelo registered,others available
-
Doors type:
-
Silver Stainless Steel Wire Drawing,Polished Brass
-
Warranty:
-
2 years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ORBITA
-
Model Number:
-
S3072H
-
Product name:
-
Key Card Door Entry Systems
-
Material:
-
304 stainless steel,moisture proof, fire retardant
-
Certificate:
-
CE,FCC,BHMA,SASO, Fidelo/Opera
-
Mortise:
-
ANSI mortise or European standard mortise
-
Card option:
-
RFID,M1K / S50 card or 125 KHz Temic card
-
Size:
-
L95mm*W62mm*H26.8mm
-
Suitable door thickness:
-
30-55 mm
-
PMS interface:
-
Fidelo registered,others available
-
Doors type:
-
Silver Stainless Steel Wire Drawing,Polished Brass
-
Warranty:
-
2 years
2022 Most Popular Hotel RFID Security Locking Management Software System Key Card Door Entry Systems
|
Main feature & Function |
||
|
Orbita seperated type access control RFID hotel key card door lock--Split Model |
||
|
|
Key feature |
Split/seperated type , sliding reader with hidden cylinder ; Elegant,fashionable. |
|
Material |
Complete 304 Stainless Steel;Sealed electronics; Replace your old mechanical lock with our electronic lock. |
|
|
Mortise type |
5 latch ANSI U.S. standard mortise. |
|
|
Certificates |
CE,FCC,BHMA ((America army standards,unlock last more than 800,000 times circles ). |
|
|
External Panel Dimension |
Reference below external panel size pictures. |
|
|
Keycard Options |
125khz Temic card, 13.56 mhz M 1/MF card,RFID card. |
|
|
PMS system |
Interface with most of the PMS systems, Fidelio/Opera registered. |
|
|
Opening Records |
240pcs. |
|
|
Door Thickness Range |
32-55mm. |
|
|
Color Optional |
silver, gold (PVD). |
|
|
Application |
star/economic hotel, resort, apartment, dormitory, motel, cruise ship etc. |
|
|
Warranty time |
2 years. |
|
|
life span |
about 10 to 15 years. |
|

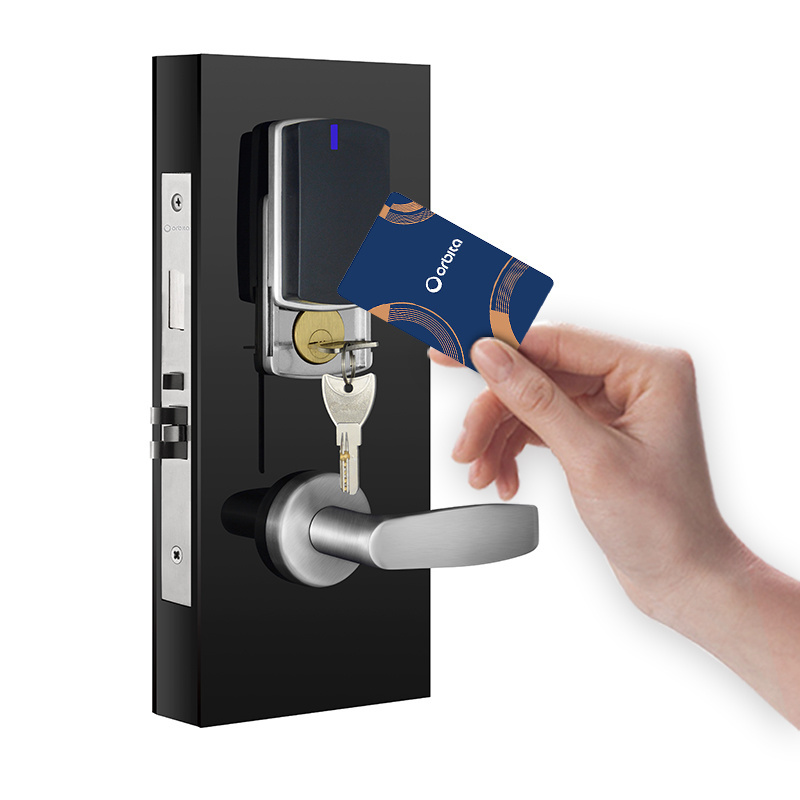

The detailed photo of the door lock:
|
Functional Characteristics |
|
|
Interface with most of the PMS system, Fidelio/Opera registered ! |
|
|
Steel color lasts more than 10 years |
|
|
ANSI mortise,European Standard mortise 72mm/85mm hole distance.Inside Dead Bolt,Inside handle retracts latches and deadbolt. |
|
|
RF Temic card,M1 card,Ultra-light card are optional,compatible with its own energy saver |
|
|
Override Computer Key for Emergency use,individual or master cylinder. |
|
|
Personalized Locking System and cylinder cover |
|
|
Lock operation record printable:240 PCS or more. |
|
|
Power:4 PCS#5 AA Alkaline batteries:18 months’ duration. |
|
|
Low battery voltage warning.(Lower than 3.5V) |
|
|
Self Error detecting by LED and “beep” |
|
|
Improper lock warning. |
|
|
Wirelss satnd alone lock realizes 95% of on line lock function. |
1.Hotel card lock (Installed on the hotel room door)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )
4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors) We will make the lock according to your door thickness and door open way!
1.Packing Size(W*D*H):490*360*450mm
2.Package sort:PP bag+foam
3.Net/Gross Weight(KGS):17.5/17.8
4.Qty/Carton:6 pieces in one carton
