Quick Details
-
Brand Name:
-
Zotai
-
Model Number:
-
ZT-1407
-
Product name:
-
Automatic Connectors Plug Insertion Pulling Force Testing Machine
-
Station number:
-
9 station
-
Maximum dynamic range:
-
24±0.5mm ,60.5±0.5mm
-
Grinding station:
-
50-2r/min
-
Weight of pressure hammer:
-
2385±10g
-
Dimensions:
-
885mm*600mm*410mm(L*W*H)
-
Weight:
-
150kg
-
Certification:
-
CE
Quick Details
-
Warranty:
-
2 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zotai
-
Model Number:
-
ZT-1407
-
Product name:
-
Automatic Connectors Plug Insertion Pulling Force Testing Machine
-
Station number:
-
9 station
-
Maximum dynamic range:
-
24±0.5mm ,60.5±0.5mm
-
Grinding station:
-
50-2r/min
-
Weight of pressure hammer:
-
2385±10g
-
Dimensions:
-
885mm*600mm*410mm(L*W*H)
-
Weight:
-
150kg
-
Certification:
-
CE

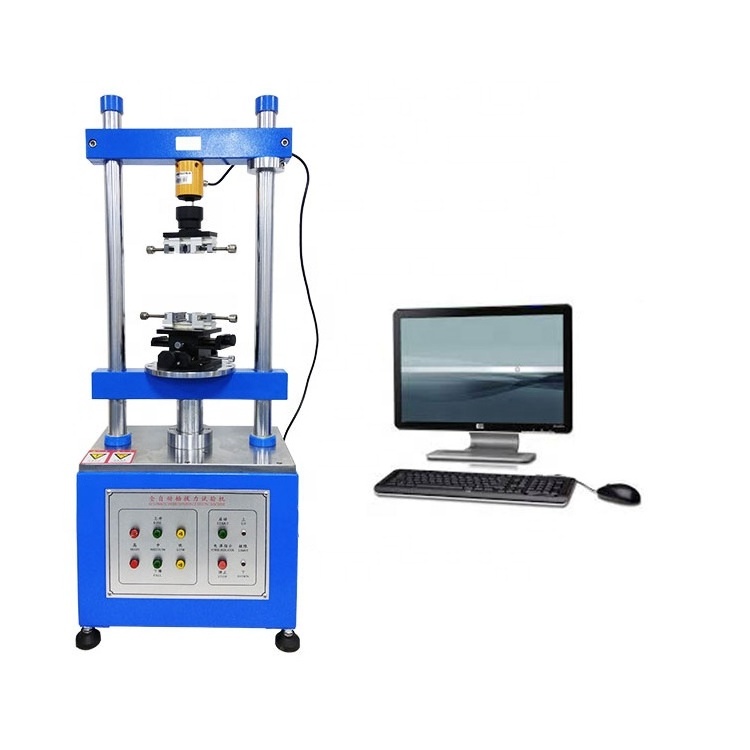

Automatic Connectors Plug Insertion Pulling Force Testing Machine
Summary
1. Automatic Connectors Plug Insertion Pulling Force Testing Machine is used for various kinds of connectors for plug in and plug out force test, equip with automatic device for adjustment centre site and special grips so that it can get the precision insert force;
2. Adopt Chinese Windows version software frames setting which is easy for operation and can
storage for test data's (test condition, insert stroke curve graph, lifetime curve, inspection report
etc. ) Match with motional impedance test system, can do insertion test as well as motional
impedance test and drawing together. (Load-stroke-impedance curve)
3. This machine adopt high precision loading parts with servo motor for measurement and drive,
can get precision insertion force result.
4. It is a kind of necessary machine for all kinds of connectors and electrical products
manufactures for research and development together with quality control application.
Specification
|
Load capacity |
2kg, 5kg, 20kg, 50kg |
|
Unit switch over |
gf, kgf, lbf, N |
|
Resolution |
0.001kg |
|
Load precision |
±0.2% |
|
Maximum travel |
150mm |
|
Test speed |
0~200mm/min(0~600mm/min) |
|
Speed precision |
0.5% |
|
X,Y axis movement range |
0~75mm |
|
Displacement resolution |
0.01mm |
|
Dynamical System |
Panasonic servo motor |
|
Size |
360*260*940mm |
|
Weight |
70kg |
|
Power |
220V,50HZ / Customized |
1. Zotai Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines .
2. Onsite Service:
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
