Quick Details
-
Control System Brand:
-
Cypcut/FSCUT
-
Cutting Area:
-
4000*2000
-
Cutting Thickness:
-
1-30mm
-
Control Software:
-
CYPCUT FSCUT4000E
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BOAO
-
Weight (KG):
-
4000 KG
-

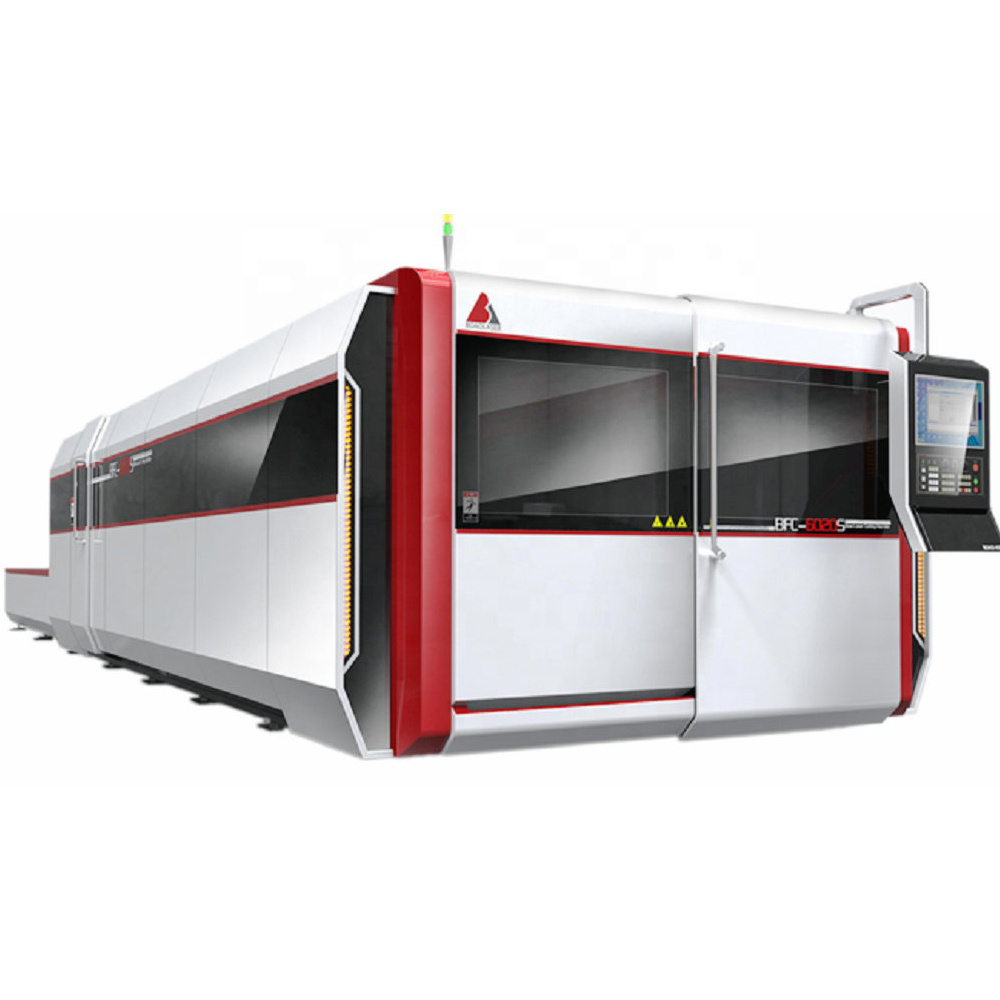

Product name:
-
fully enclosed fiber laser cutting machine
-
Certificate:
-
ISO9001, CE
-
Protective Cover:
-
full enclosed
-
Operation Software:
-
cypcut4000E fscut4000E
-
Keyword:
-
carbon steel stainless steel, aluminum, brass cutting
-
Laser head:
-
Raytools/Boci
-
Laser source brand:
-
Raycus/MAX/IPG/BWT
-
Cutting materials:
-
carbon steel, stainless steel, brass, alloy, aluminium
-
Working table:
-
Sawteeth Working Table
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0.5-120m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut/FSCUT
-
Cutting Area:
-
4000*2000
-
Cutting Thickness:
-
1-30mm
-
Control Software:
-
CYPCUT FSCUT4000E
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BOAO
-
Weight (KG):
-
4000 KG
-
Product name:
-
fully enclosed fiber laser cutting machine
-
Certificate:
-
ISO9001, CE
-
Protective Cover:
-
full enclosed
-
Operation Software:
-
cypcut4000E fscut4000E
-
Keyword:
-
carbon steel stainless steel, aluminum, brass cutting
-
Laser head:
-
Raytools/Boci
-
Laser source brand:
-
Raycus/MAX/IPG/BWT
-
Cutting materials:
-
carbon steel, stainless steel, brass, alloy, aluminium
-
Working table:
-
Sawteeth Working Table
Machines Introduction
|
Worktable Type :
|
Double Worktable Type
|
|
Actual Cutting Size:
|
3000x1500mm,4000x2000mm,6000x2000mm,8000x2000mm
|
|
Cutting Thickness:
|
<25mm
|
|
Materials :
|
Steel,Al, Brass,Alloy etc..
|
|
Laser Power :
|
6000W 12000W 20000W
|
|
Delivery Time :
|
45 Working Days
|
|
Warranty &Service :
|
2 Years
|
Technical Parameters
|
Model NO:
|
BFC Series
|
|
|
|
|||
|
Laser Type
|
CW FIber
|
|
|
|
|||
|
Laser Wavelength
|
1060nm
|
|
|
|
|||
|
Laser Maximum Power
|
6000W 12000W 20000W
|
|
|
|
|||
|
Max. Cutting thickness
|
≤22mm
|
|
|
|
|||
|
Total Power Consumption
|
<38KW (380v/ 3Phase/50Hz/ 110A)
|
|
|
|
|||
|
Working Size
|
3000*1500 mm/4000X2000MM/6000X2000MM/8000X2000MM
|
|
|
|
|||
|
Max.cutting speed
|
0-30m/min(Depending on the material and thickness)
|
|
|
|
|||
|
X, Y, Z Axis Orientation Precision
|
≤±0.03mm/m
|
|
|
|
|||
|
X, Y, Z Axis Repeat Precision
|
≤±0.03mm /m
|
|
|
|
|||
|
Min line width
|
≤0.15mm
|
|
|
|
|||
|
Maximum Empty Running Speed
|
120m/min
|
|
|
|
|||
|
Driving way
|
Imported servo motor
|
|
|
|
|||
|
Transmission way
|
Y-axis import gear rack double driver, X-axis imported ball screw
|
|
|
|
|||
|
Worktable Max Load
|
12Tons
|
|
|
|
|||
|
Cooling System
|
Water Cooling
|
|
|
|
|||
|
Continuous working time
|
24 Hours
|
|
|
|
|||
|
Environment temperature
|
0-35°C
|
|
|
|
|||
|
Power requirements
|
380V/3 Phases /50Hz or 60Hz
|
|
|
|
|||
Production Procedure
Materials
Welding Worktable
Secondary Annealing
After Effective Elimination of Stress
Worktable Ready
Production
Running Test
Ready For Shipment
Transportation
Main Parts
Machines And Cutting Photo
BOAO laser Company
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
