Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application::
-
Telephone cable
-
type::
-
10 pair
-
Category::
-
disconnection Module
-
Color:
-
White Cream Grey
-
Material:
-
ABS+ Phosphor Bronze
-
Packing:
-
Box
-
Temperature:
-
-5 - 40°C
-
Relative humidity: <85% (+30°C):
-
<85% (+30°C)
-
Performance impedance: 120Ω (balance):
-
120Ω (balance)
-
Work rate: 2mb/s:
-
2mb/s
Quick Details
-
Brand Name:
-
Aucas
-
Type:
-
Telephone cable module
-
Model Number:
-
Lsa terminal block
-
Place of Origin:
-
Guangdong, China
-
Application::
-
Telephone cable
-
type::
-
10 pair
-
Category::
-
disconnection Module
-
Color:
-
White Cream Grey
-
Material:
-
ABS+ Phosphor Bronze
-
Packing:
-
Box
-
Temperature:
-
-5 - 40°C
-
Relative humidity: <85% (+30°C):
-
<85% (+30°C)
-
Performance impedance: 120Ω (balance):
-
120Ω (balance)
-
Work rate: 2mb/s:
-
2mb/s

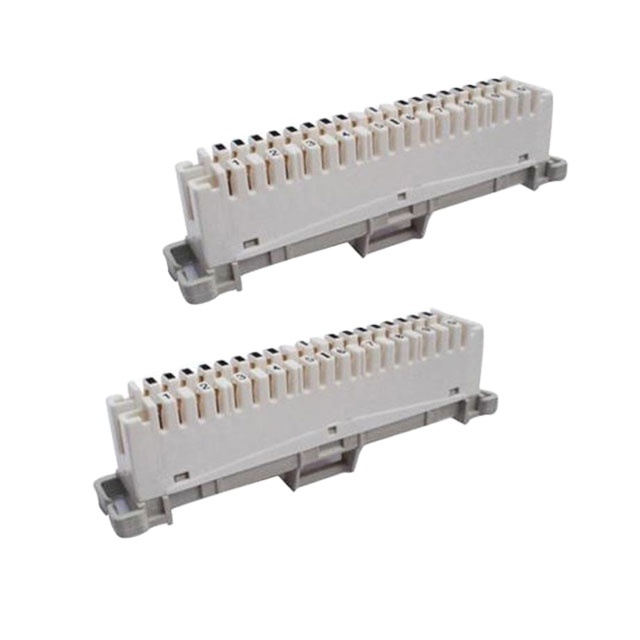

DP Box LSA Profile PLUS Krone Disconnection 10 Pair For Telecommunication Cable Connection
Application:
1.Superior high speed data and voice cross connect modules. Contact pin: phosphor bronze with silver-plated Available in 10 pair disconnect versions.
2.These modules enable high speed LAN and WAN systems maximum headroom in transmission performance.
3.HIGHBAND utilises the silver plated LSA Plus contact principle. This is proven technology which has become the 'industry standard' in over 60 countries.
4.The gas tight contacts ensure a reliable and long lasting connection.
5.The module can be either patched, jumpered and used in a patch by exception configuration.
6.Special design with cable management and chassis for Easy installation .
Technical index:
| Item: | Specification: |
| Product name: | 10 pair Lsa Disconnection Module For Krone type |
| Application | High speed LAN and WAN systems |
| Contact pin | Phosphor bronze with silver-plated |
| Insulation diameter range (PE, PVC) | 0.70 - 1.40 mm |
| Wire diameter range | 0.40 - 0.65 mm (26-22 AWG) Wire |
| Insulation resistance | More than 500,000 M at 500 VDC |
| Number of patching cycles |
750 |
| Environment for use |
Indoors or in dry enclosure rated IP54 or greater |
| Operating temperature range |
-40ºC to +80ºC |
| Maximum relative humidity |
93% non-condensing |
Payment:
For samples or small orders, we recommend Paypal, Money Gram, or Western Union
Delivery & Shipping:
1) Samples: 1 day for samples in stock, 3-5 working days for OEM samples.
2) Bulk order: one week as usual, it depends on your order quantity.
International express would be faster for samples or small orders, but large cargo suggest shipping by sea, for cables are really very heavy.
