Bangchi is a verified livestock farming equipment manufacturer ,reputable and trustworthy. We have more than 13 years of experience in poultry farm equipment supplying, serving for 5000+ farm projects in 25 different countries.Annual sales is 3millions USD dollar, We can provide most related poultry equipment like broiler farm equipment,breeder farm equipment and layer farm equipment.Since our company was founded we have always adhered to the principles of reputation as the basis, strategy of development through quality, improvement boosted by meditation, and pursuing the future based on learning.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
183*650CM 275*760CM 367*850CM
-
Weight:
-
100 KG
-
usage:
-
Store Food
-
Name:
-
poultry silo
-
Thickness:
-
1.2mm
-
Silo life:
-
15 years
-
Capacity:
-
5-30 Tons
-
Silo type:
-
main stock line
-
Product name:
-
Poultry Storage Feed Silo
-
After sale:
-
1 Year
Quick Details
-
Core Components:
-
motor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BANGCHI
-
Dimension(L*W*H):
-
183*650CM 275*760CM 367*850CM
-
Weight:
-
100 KG
-
usage:
-
Store Food
-
Name:
-
poultry silo
-
Thickness:
-
1.2mm
-
Silo life:
-
15 years
-
Capacity:
-
5-30 Tons
-
Silo type:
-
main stock line
-
Product name:
-
Poultry Storage Feed Silo
-
After sale:
-
1 Year

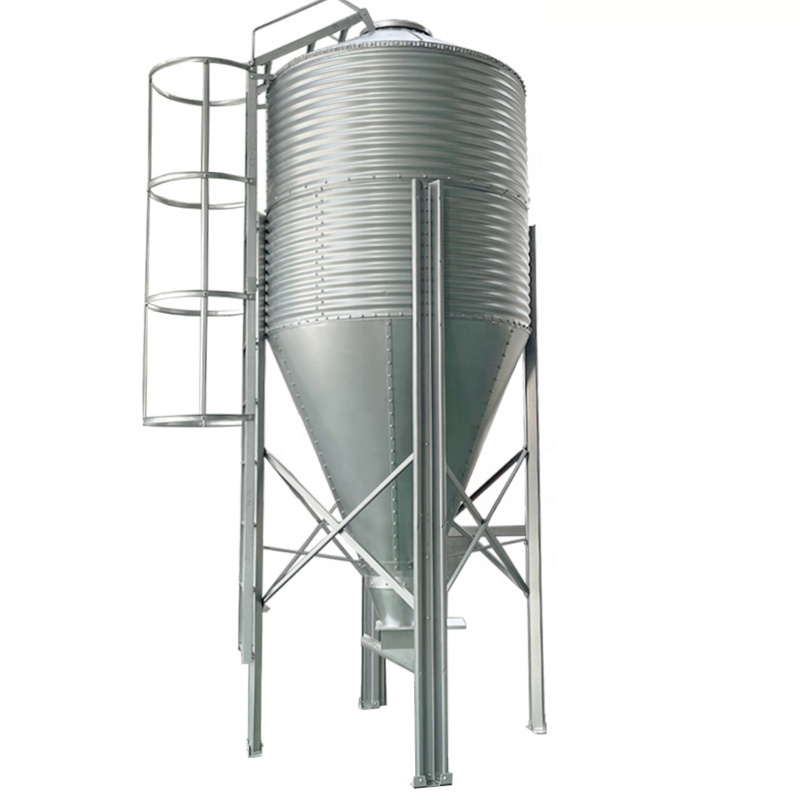

POULTRY FARM STORAGE SILO
Silo Specification
The main function of the material tower is to hold the material, which is mainly composed of an upper cone, a coaming plate, an outrigger, a brace, a lower cone, a ladder, and a retaining ring. The material of the material tower is made of hot-dip galvanized steel plate produced by a large domestic steel plate manufacturer of Shougang Steel, with a double-sided galvanized layer of 275g/m2 and passivation treatment, which greatly enhances the anti-rust performance and improves the anti-corrosion ability. All bolts of the material tower are made of alloy high-strength hot zinc bolts, 48 hours salt spray test; the horizontal and vertical seams of the plate are sealed with silica gel mud, which has the advantages of windproof, rainproof, firm and long service life.
|
Diameter(M)
|
Tons
|
Height(M)
|
Capacity(M3)
|
Legs(pc)
|
Specification
|
Input Power(W)
|
|
|
1.83
|
2.7
|
3.8
|
4.1
|
4
|
Thickness:1.0mm,legs:3.0mm
|
750
|
|
|
183
|
4.2
|
4.7
|
6.5
|
4
|
Thickness:1.0mm,legs:3.0mm
|
750
|
|
|
183
|
5.8
|
5.6
|
8.9
|
4
|
Thickness:1.0mm,legs:3.0mm
|
1100
|
|
|
183
|
7.3
|
6.5
|
11.3
|
4
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
275
|
7.5
|
4.9
|
11.6
|
6
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
275
|
11
|
5.8
|
17
|
6
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
275
|
14
|
6.7
|
22.4
|
6
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
275
|
18
|
7.6
|
27.8
|
6
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
367
|
15
|
5.8
|
23.5
|
8
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
367
|
21.5
|
6.7
|
33
|
8
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
367
|
27.5
|
7.6
|
42.5
|
8
|
Thickness:1.0mm,legs:3.0mm
|
|
|
|
367
|
33.5
|
8.5
|
52
|
8
|
Thickness:1.0mm,legs:3.0mm
|
|
|
Application
Broiler pan feeding system
feed Lines for broilers is solid and reliable through the application of high quality materials and virgin plastics.
Bangchi feed pan is impact-proof and is also extremely resistant to the different types of cleaning/des infection/chemical products used on poultry farms.
Cooling Pad function:
When the air goes through cooling pads, the heat will
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms.
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms.
Exhaust Fan function:
Ventilation fan system controls poultry house inner environment, provides fresh air, proper humidity for
your chickens, ensuring your broilers provide
maximum production.
your chickens, ensuring your broilers provide
maximum production.
Foggy system
1) Pump: 1.5kw/2.2kw
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
Environment Control system
Option 1: Agrologic Brand, imported from Israel, Model: T607/T610/T616
Option 2: Our own brand, also with good function.
Option 2: Our own brand, also with good function.
