Quick Details
-
Filter Rating:
-
0.99
-
Thickness:
-
0.05-2MM
-
Length:
-
20MM-2000MM
-
Width:
-
50MM-300MM
-
Product Name:
-
Stainless Steel 304 316 316l Perforated Filter Tube Cylinder
-
Shape:
-
Cylinder
-
Weave style:
-
round and customized shape
-
Flange:
-
Can be customized as you required
-
Layer:
-
1 layer/double layer/ multi-layer
-
Hole distance:
-
2mm/3mm/4mm
-
Sample:
-
Free and available
-
Service:
-
OEM
-
Business Type:
-
Factory
Quick Details
-
Weight (KG):
-
1
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIANYANG
-
Filter Rating:
-
0.99
-
Thickness:
-
0.05-2MM
-
Length:
-
20MM-2000MM
-
Width:
-
50MM-300MM
-
Product Name:
-
Stainless Steel 304 316 316l Perforated Filter Tube Cylinder
-
Shape:
-
Cylinder
-
Weave style:
-
round and customized shape
-
Flange:
-
Can be customized as you required
-
Layer:
-
1 layer/double layer/ multi-layer
-
Hole distance:
-
2mm/3mm/4mm
-
Sample:
-
Free and available
-
Service:
-
OEM
-
Business Type:
-
Factory

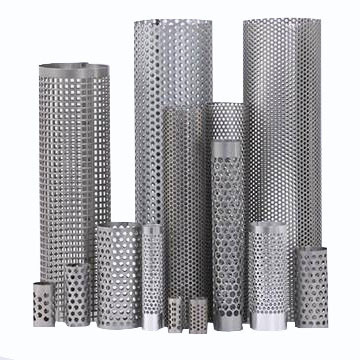

Our Welded Perforated Metal Filter Tube is made of carbon steel and stainless steel by straight seam welding method, that suitable for filter cores which can withstand quick flow of liquid and support the outside filter mesh layer.
Micron slotted hole perforated steel tubing is used as filter cylinder or casing tube in oil drilling, mine developing and other industries.
Except of straight butt seam welding method , we also offer spiral lock seam welding. spot welding tubes, longitudinal/straight seam tubes, straight seam tack welded tubes, abutted seam tubes, straight lock seam tubes, and more.
General Product Descriptions:
1> Material: mild carbon steel, stainless steel
2> Outside diameter: from 1"to 5";
3> Length: to any length, up to 4 meters
4> Holes pattern: round, square, oblong, hexagon
5> Hole diameter: 0.4mm -20mm
6> Open area: up to 65%;
7>Wall Thickness: 1mm to 5mm
Applications: Exhaust system; filtration systems, aerospace, paper & pulp, petrochemical, oil and gas, decorative architectural purposes and so on.
We offer the following perforated tubing products:
Oil Casing Perforated Filter Tube
Spiral Lock Seam Welded Perforated Metal Filter Support Cores and Covers
Stainless Steel Perforated Filter Tubes
SUS304,SUS316,SUS316LPerforated Stainless Steel Filter Basket
Steel Perforated Filter Cylinder .
Perforated Metal Tube are fabricated with diverse end forms, perforation patterns and margins.
| Item | Perforated Filter Tubes |
| Material | Stainless Steel, Aluminum,Hot galvanized, PVC coated |
| Hole Shape | Round, Rectangular,Square, Triangle, Diamond, Hexagonal,etc |
| Hole Size | 0.6-20mm |
| Thickness | usually 1mm,1.2mm,1.5mm,2.0mm etc |
| Length | 300mm,500mm customized |
| Width | 30mm,35mm,50mm,60mm,customized |
| Openjing Rate | 45%,60%,85% etc customized |
| SurfaceTreatment | Electric galvanized, Hot dipped galvanized, oxidation treatment etc |
| Delivery | 7-15 days after receiving the 30% deposit or as required |
All perforated filters could be customized as you required.
|
0.8mm Round Hole perforated cylinder |
Carbon steel perforated tube
|
Stainless Steel perforated tube filter |
1 inch Stainless Steel Perforated Tube |
|
Perforated tube filter
|
Perforated tube filter
|
Perforated metal tube products
|
Perforated metal tube products
|
