Quick Details
-
Brand Name:
-
SHCET
-
Model Number:
-
SH2R-100II
-
Rated Current:
-
16A-100A
-
Frequency:
-
50/60Hz
-
Pole:
-
2P/3P/4P
-
Certificates:
-
CE
-
Current:
-
16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A,100A
-
Color:
-
White &Black
-
Name:
-

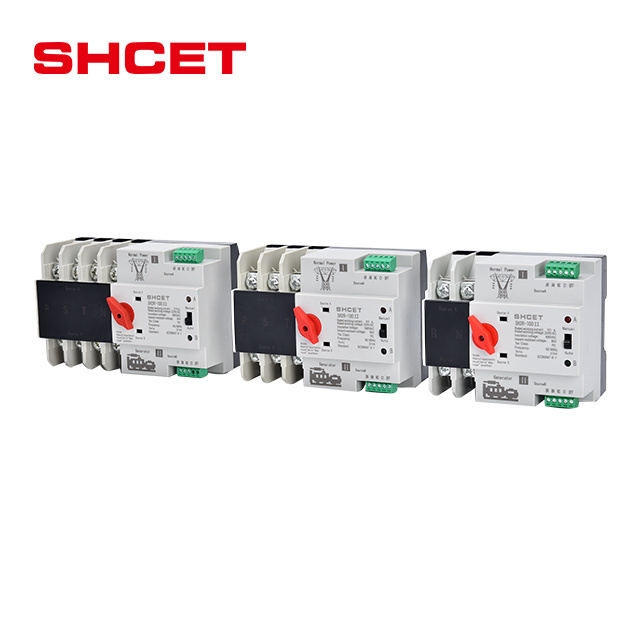

automatic transfer changeover switch
-
Voltage:
-
AC380V-440V
-
Application:
-
Solar Pv System
-
Keywords:
-
automatic transfer switch generator,mini automatic transfer switch
-
Installation:
-
DIN Rail
Quick Details
-
Type:
-
automatic changeover switch
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SHCET
-
Model Number:
-
SH2R-100II
-
Rated Current:
-
16A-100A
-
Frequency:
-
50/60Hz
-
Pole:
-
2P/3P/4P
-
Certificates:
-
CE
-
Current:
-
16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A,100A
-
Color:
-
White &Black
-
Name:
-
automatic transfer changeover switch
-
Voltage:
-
AC380V-440V
-
Application:
-
Solar Pv System
-
Keywords:
-
automatic transfer switch generator,mini automatic transfer switch
-
Installation:
-
DIN Rail
Product Description
Specification：
|
ITEM NO.
|
SH2R-100II
|
|
Rated current Ie(A)
|
16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A,100A
|
|
Installation
|
Din rail
|
|
Rated insulation voltage Ui (V)
|
AC690, 50HZ
|
|
Rated working voltage Ue (V)
|
AC400, 50HZ
|
|
Rated impulse withstand voltage (KV )
|
8KV
|
|
Poles
|
2P,3P,4P
|
|
Weight (KG)
|
2.1 2.6
|
|
Connecting and breaking
|
6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times
|
|
Operating performance
|
2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times
|
|
Rated limited short-circuit current Iq
|
50KA
|
|
SCPD (FUSES )
|
RT16-00-63A
|
|
|
Rated supply voltage Us: AC220V, 50HZ.
|
|
|
Working condition:85% Us~110% Us
|
|
|
Two isolated relays, each relay with 2 groups of passive
|
|
|
switch contact. Contact capacity: AC220 50Hz, Ie=5A
|
|
Switching time
|
<50ms
|
|
Action time
|
<50ms
|
