MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine
MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine
MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine
MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine
MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine
MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine
MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine
MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine

MINJCODE MJ2260 1d Laser Embedded Barcode Scanner, Mini Barcode Reading Module for ATM /Vending Machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $12
≥100 Pieces
US $11
≥200 Pieces
US $10
≥500 Pieces
US $9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Scan Speed:
200times/sec
Brand Name:
MINJCODE
Place of Origin:
Guangdong, China
Product name:
MJ2260 1d Laser Embedded Barcode Scanner,
Scan Mode:
Auto Scan
Decode Capabilities:
Code 128
Keywords:
Barcode Reader Module
Certification:
CE FCC ROHS REACH
Advantage:
After-sales Service System
Weight:
90g
Material:
ABS
Feature:
Fast Scanning
Scanning range:
3-35CM

Quick Details

Type:
Barcode Scanner
Scan Element Type:
laser
Optical Resolution:
3.3mil
Scan Speed:
200times/sec
Brand Name:
MINJCODE
Place of Origin:
Guangdong, China
Product name:
MJ2260 1d Laser Embedded Barcode Scanner,
Scan Mode:
Auto Scan
Decode Capabilities:
Code 128
Keywords:
Barcode Reader Module
Certification:
CE FCC ROHS REACH
Advantage:
After-sales Service System
Weight:
90g
Material:
ABS
Feature:
Fast Scanning
Scanning range:
3-35CM
Products Description

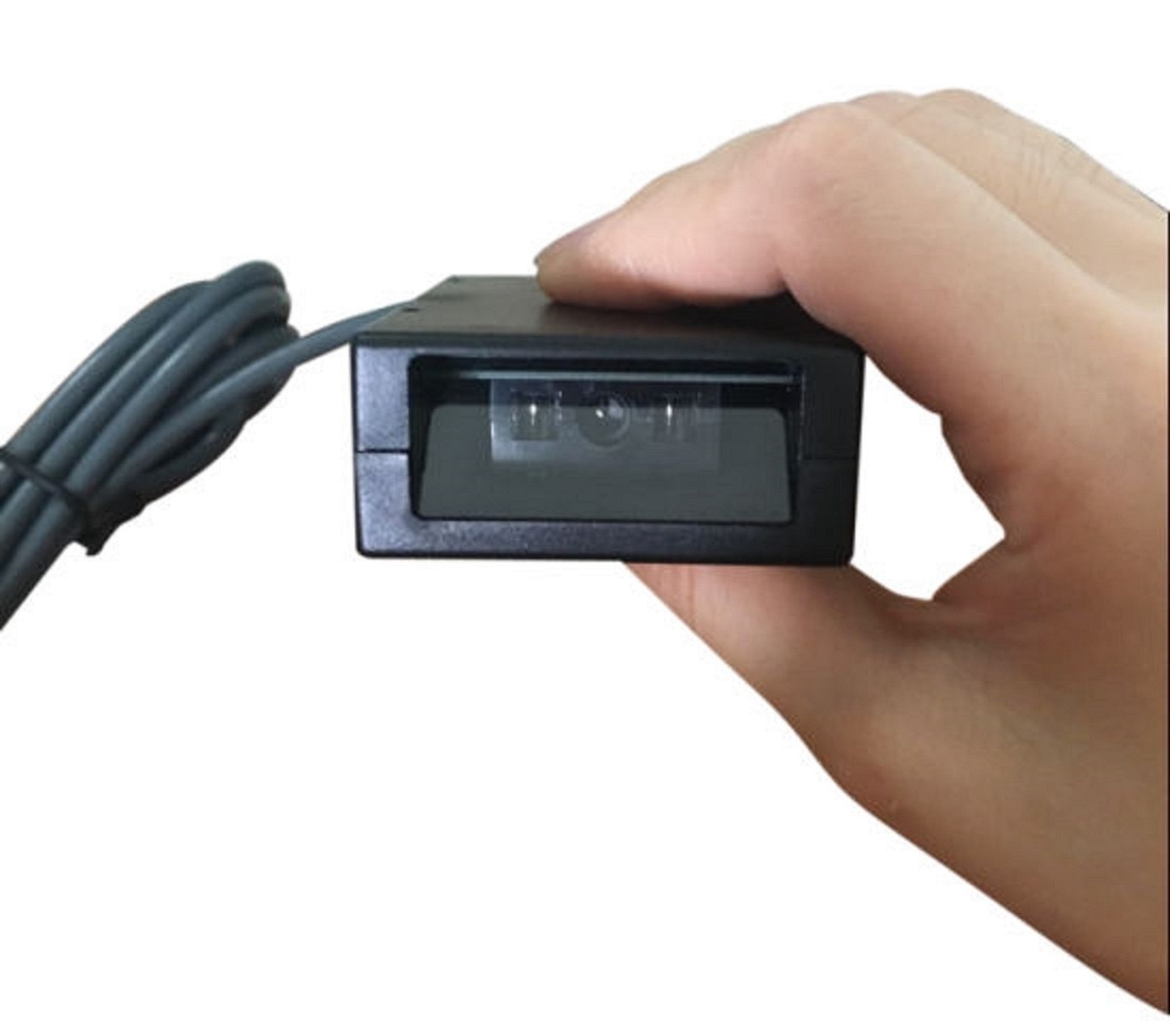

MINJCODE 1d Laser Embedded Barcode Scanner Module MJ 2260

--Small compact size, easily to integrate into device, especially for limit space application.
--32-bit high speed CPU, enables a class-leading swift decoding as 200 times per second.
--Popular interfaces USB, RS232, TTL, PS2 are on board, supports Linux, Windows, Android, IOS system.
--Excellent performance with low power consumption and cost-effectivity.
Type
1D Embedded Laser Barcode Scanner Module
Light Source
650nm visual laser diode
Scan Type
Bi-directional
Processor
ARM 32-bit Cortex
Scan Rate
200 Scans/sec
Mechnical Shock
withstand1.5M drops to concrete
Interfaces
RS232, USB
Decoding Capacity
EAN13, EAN8, UPC A, UPC E, CODABAR(NW-7), CODE 39,CODE 93, INTERLEAVED 2 OF 5, STANDARD 2 OF 5, MATRIX 2 OF 5, CODE 128, EAN/UCC 128, CODE 11, CHINESE POST, etc
Dimension
68mm*48mm*21mm
Net Weight
90g
