1. The high-strength fuselage structure has small deformation and high precision.
2.Pneumatic wet clutch brake (integrated):environmentally friendly,non-polluting ,low noise and long service life.
3.The slider adopts four-corner and eight-sided guides to carry large eccentric loads ,ensuring long-term and stable maintenance of stamping accuracy.
4.The slider guide adopts"high-frequency quenching" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve die life.
5.The use of forced thin oil circulation lubrication device:energy saving,environmental protection,with automatic alarm function,can increase the number of punching by adjusting the amount of oil.
6. The crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.
7. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass. It adopts high-sensitivity hydraulic overload protection device,which can effectively protect the service life of punch and die.
8.Standard Japanese SMC pressure regulator,oil mister,air filter.
9. Standard touch screen,Siemens motor.
10.Optional mat(air cushion)
- Product Details
- {{item.text}}
Quick Details
-
Weight (T):
-
500
-
Model Number:
-
STE-500
-
Slider adjustment amount:
-
150mm
-
Up platform area:
-
2500*1000mm
-
Down platform area:
-
2800*1100mm
-
Platform to floor distance:
-
1550mm
-
Main motor power:
-
45*4
-
Air pressure:
-
6
-
side opening:
-
1000*700mm
-
CNC or Not:
-
Normal, Normal
-
Machine Type:
-
Punching Machine, Punching Machine
-
Power Source:
-
Pneumatic, Pneumatic
-
Certification:
-
ISO
-
Motor Power (kW):
-
45*4
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
qiaosen
-
Voltage:
-
380v
-
Weight (T):
-
500
-
Model Number:
-
STE-500
-
Slider adjustment amount:
-
150mm
-
Up platform area:
-
2500*1000mm
-
Down platform area:
-
2800*1100mm
-
Platform to floor distance:
-
1550mm
-
Main motor power:
-
45*4
-
Air pressure:
-
6
-
side opening:
-
1000*700mm
-
CNC or Not:
-
Normal, Normal
-
Machine Type:
-
Punching Machine, Punching Machine
-
Power Source:
-
Pneumatic, Pneumatic
-
Certification:
-
ISO
-
Motor Power (kW):
-
45*4
Product Overview

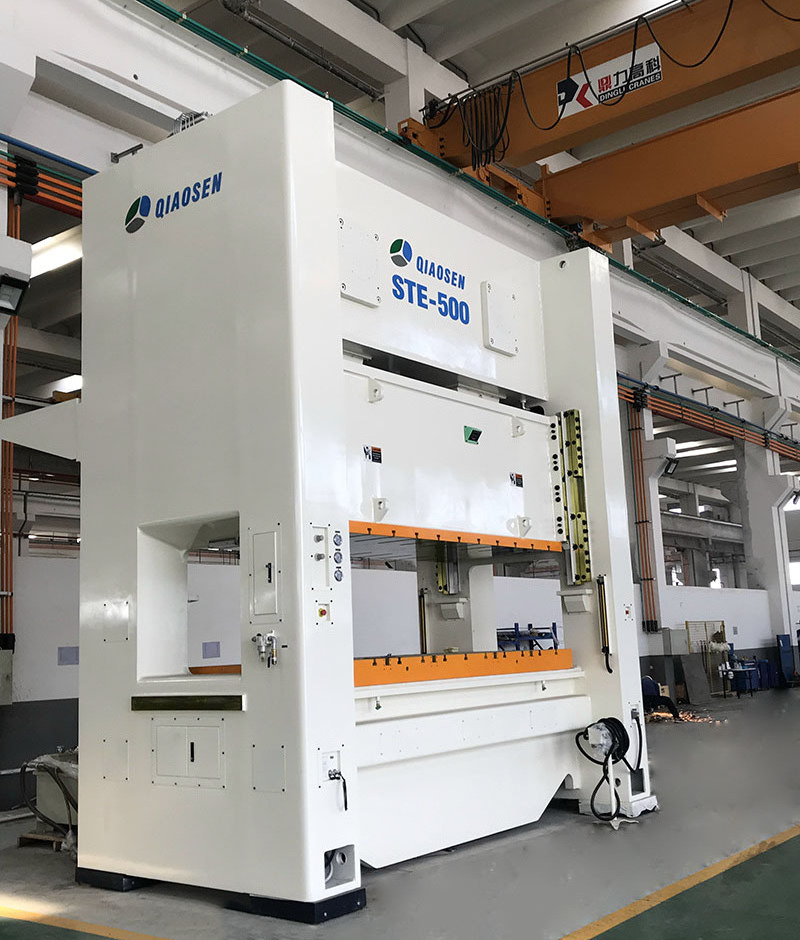

STE-500ton S type punching machine
This is 500ton closed double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.
performance features
|
No
|
Item
|
Unit
|
STE-500
|
|
|
|
|
Mode
|
|
S type
|
H type
|
|
|
1
|
punching capability
|
ton
|
500
|
|
|
|
2
|
Impact force location
|
mm
|
8
|
5
|
|
|
3
|
Long slider length
|
mm
|
300
|
180
|
|
|
4
|
Slider stokes per minute
|
SPM
|
20-40
|
25-50
|
|
|
5
|
Maximum mode height
|
mm
|
600
|
500
|
|
|
6
|
Slider adjustment amount
|
mm
|
150
|
|
|
|
7
|
Up platform area
|
mm
|
2500*1000
|
|
|
|
8
|
Down platform area
|
mm
|
2800*1100
|
|
|
|
9
|
Platform to floor distance
|
mm
|
1550
|
|
|
|
10
|
Side opening
|
mm
|
1000*700
|
|
|
|
11
|
Main motor power
|
kw*p
|
45*4
|
|
|
|
12
|
Slider adjustment device
|
kw*p
|
3*4
|
|
|
|
13
|
Air pressure
|
kg/cm^2
|
6
|
|
|
|
14
|
Punch accuracy grade
|
|
JIS 1
|
|
|
