Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTD
-
Model Number:
-
22KLS-402
-
Mechanical Life:
-
10 Years
-
Product Name:
-
KNX Wall Central Control Switch
-
Warranty:
-
2 Years
-
Management software:
-
B/S architecture cloud server
-
Feature:
-
Smart Wall Switch
-
System:
-
TCP/IP
-
Function:
-
Weak current control strong current, smart lighting control
-
Operating temperature:
-
-15℃-60℃
-
PMS Integrate:
-
Support
-
Keyword:
-
Button Panel Light Wall Switch
-
Color:
-
Black/ Champagne gold/ Silver
Quick Details
-
Max. Current:
-
12 MA
-
Max. Voltage:
-
21-30 V DC
-
Customized support:
-
Icon color customization
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GTD
-
Model Number:
-
22KLS-402
-
Mechanical Life:
-
10 Years
-
Product Name:
-
KNX Wall Central Control Switch
-
Warranty:
-
2 Years
-
Management software:
-
B/S architecture cloud server
-
Feature:
-
Smart Wall Switch
-
System:
-
TCP/IP
-
Function:
-
Weak current control strong current, smart lighting control
-
Operating temperature:
-
-15℃-60℃
-
PMS Integrate:
-
Support
-
Keyword:
-
Button Panel Light Wall Switch
-
Color:
-
Black/ Champagne gold/ Silver
Product introduction
This product is a standard KNX protocol intelligent touch screen, connected via KNX bus, which can be used to control various KNX devices, including switch actuators, dimming actuators, curtain actuators, air conditioning control modules, air quality display, power display, etc. The interactive interface is clear and concise, and the user can set different theme styles and backgrounds to be displayed as required; the user can also customize the icons.
Product Features
Save energy and safe
KNX products use low-power design solutions, with a standby power consumption of less than 1W. Studies done by the KNX Association show that using KNX-based home and building control networks will result in energy savings of up to 50%.
Various Functions

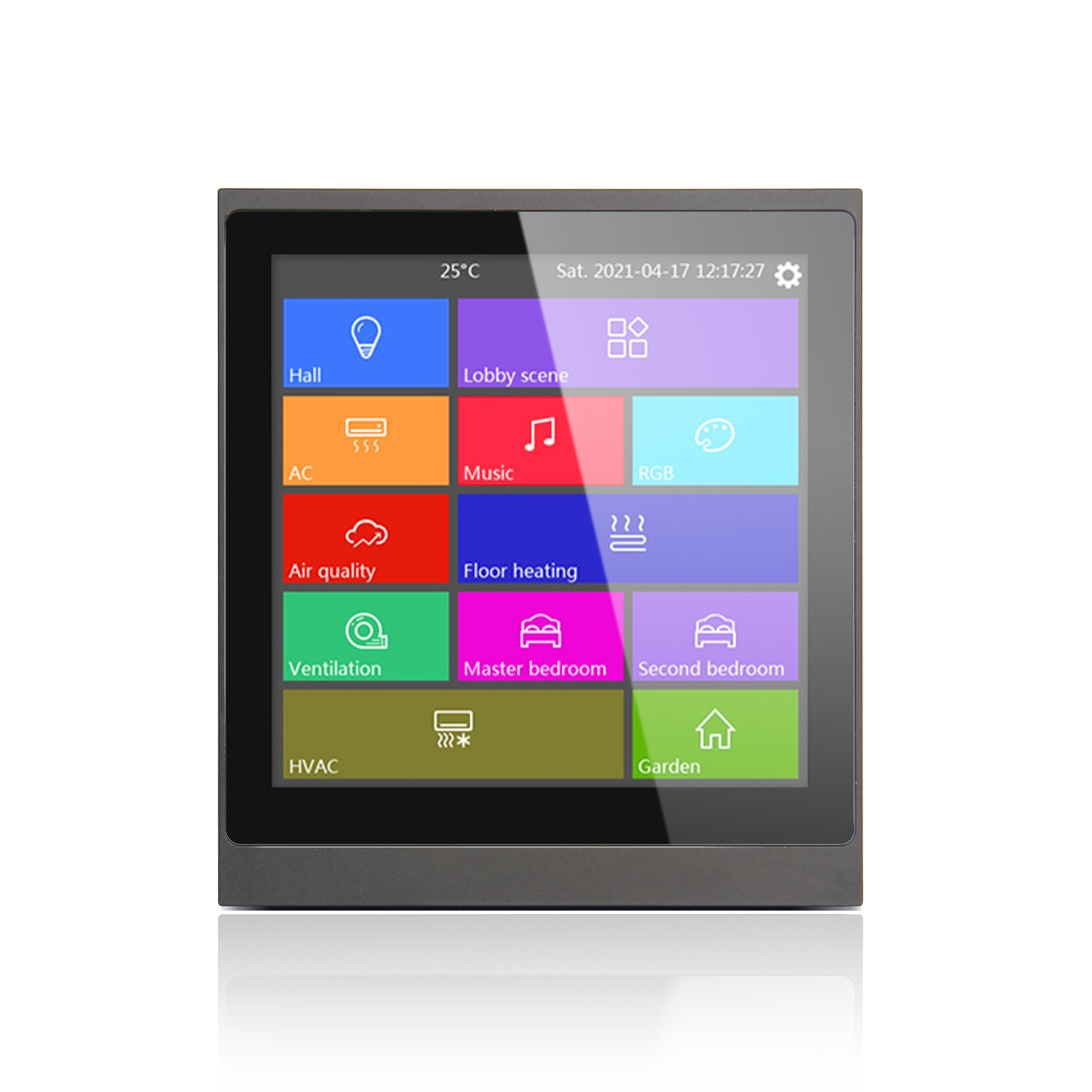

The home page is divided into 12 modules, which include lighting, curtain, HVAC, floor heating, fresh air, music, RGB light color control, air quality display, scene mode, and office mode.
Selected Materials
Its housing is made of aluminum alloy, CNC precision machining molding, surface anodizing sandblasting treatment, not easy to lose color. The screen is both an IPS HD resolution color screen and a high sensitivity capacitive touch screen.
Flexible function configuration and easy modification
KNX 4 inch Smart Touch Panel is developed based on KNX bus technology and users can configure the corresponding functions according to their needs. The function modification is easy and flexible, only a small amount of program adjustment is needed, no re-wiring of the site is required.
IPS HD display function
The screen resolution is 480*480 and 720*720, which can be used for time display and setting, temperature display, air quality sensor value, electric power value or user-defined data.
Free Dimming
Switch configuration lighting adjustment function, according to the needs of life scenes, adjust the light brightness, etc., so that the light moves with the heart, different scenes at night have the ideal light as a companion.
Integrate Multiple Systems
Integrates HVAC air conditioning control, VRV air conditioning gateway control, ventilation system control, floor heating system control, background music, RGB strip color control, logic control, and can realize different combinations of logic control.
Customize scene functions
The system is equipped with multiple scene functions, based on "home", "away from home", "rest" and other living scenarios, and can also create a comfortable and natural smart home experience according to demand.
Product parameters
|
Resolution
|
480*480、720*720 （options）
|
|
Bus voltage
|
21- 30V DC
|
|
Bus current consumption
|
<12MA
|
|
Bus power consumption
|
Max.360mw
|
|
Auxiliary voltage
|
12- 30V DC
|
|
Auxiliary power consumption
|
< 5 W
|
|
Shell/color
|
black
|
|
Operation
|
-5°C ~ +45°C
|
|
Storage
|
-25°C ~ +55°C
|
|
Transportation
|
-25°C ~ +70°C
|
|
Humidity
|
< 93% Excluding condensation
|
|
Programming button
|
Push button operation through the hole on the back of the panel
|
|
Programming Indicator
|
When the programming button is pressed, the red indicator lights up and the green light flashes for normal operation
|
