- Product Details
- {{item.text}}
Quick Details
-
Size:
-
C/C distance min 470mm
-
Product name:
-
Stadium Seat
-
Color:
-
Optional
-
Certificates:
-
SGS/ISO9001
-
Material:
-
PP
-
Function:
-
Stadium seat
-
Payment Term:
-
30% T/T Advance
-
Description:
-
School stadium chair
-
Warranty:
-
1-3 Years
-
Application:
-
stadium, Arena, Tribune, grandstand
-
Main Market:
-
America Australia
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STUNITY
-
Model Number:
-
ST3082RS
-
Size:
-
C/C distance min 470mm
-
Product name:
-
Stadium Seat
-
Color:
-
Optional
-
Certificates:
-
SGS/ISO9001
-
Material:
-
PP
-
Function:
-
Stadium seat
-
Payment Term:
-
30% T/T Advance
-
Description:
-
School stadium chair
-
Warranty:
-
1-3 Years
-
Application:
-
stadium, Arena, Tribune, grandstand
-
Main Market:
-
America Australia

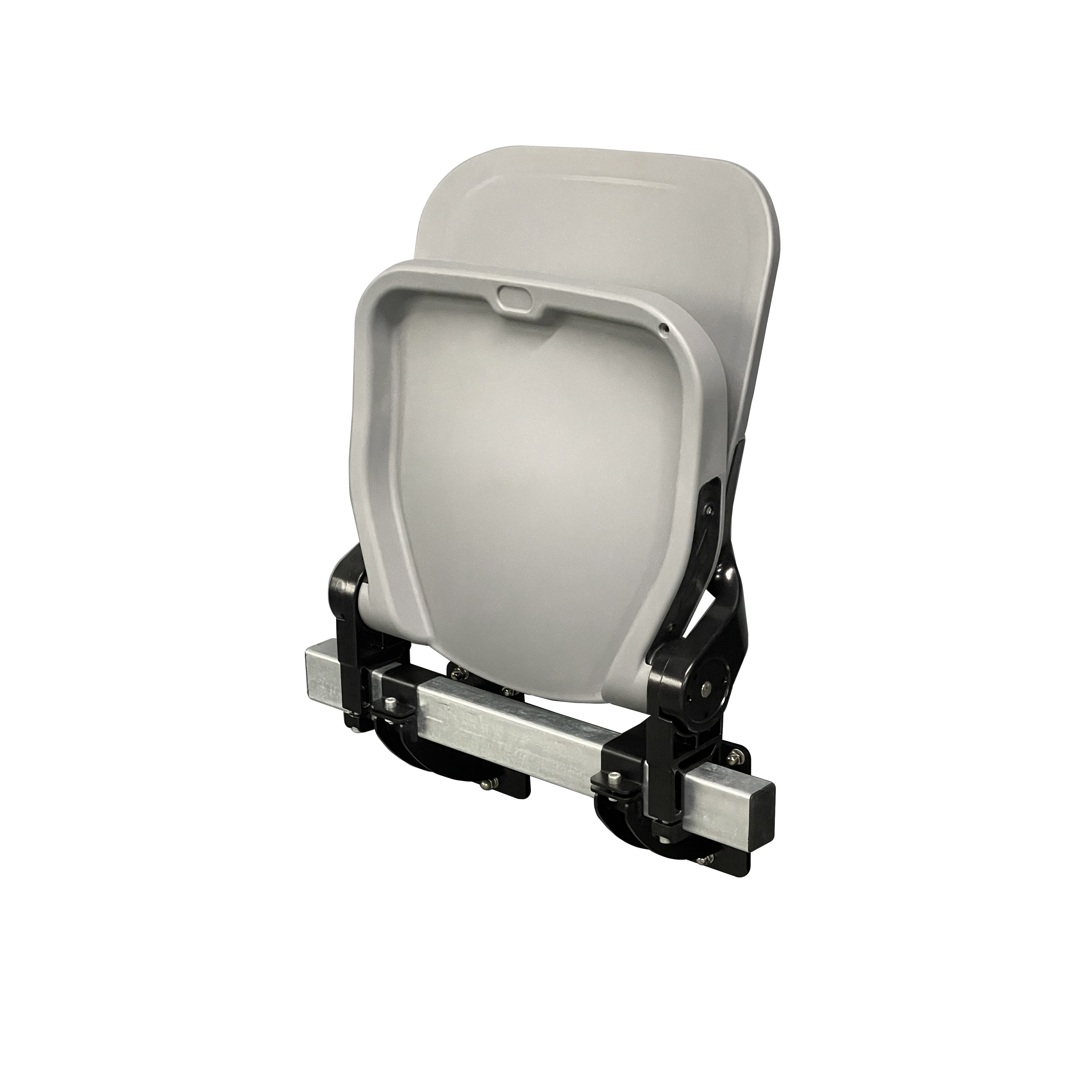

Stunity ® Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene
O ur Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene are widely recognized and trusted by users and can meet continuously changing economic and social needs.
! Attention : We only posted a part of our products on Alibaba web. Pls, contact us to show you more amazing products.
The specification of the Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene
| Model | Name | Application | Description | Dimension (CM) |
|
ST3082 FM
APOLLO Series |
Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene | Indoor/Outdoor/Bleacher |
Material: * Auto tip-up plastic chairs for the stadium. * UV resisted pp plastic shell Seats will be fixed by floor mounted steel frames. it will be powder coated for outdoor used. * Seats tip-up by spring loaded. |
Centre To Centre 50 |
|
ST3082 RM W/T AC
APOLLO Series |
Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene | Indoor/Outdoor/Bleacher |
Material: * Auto tip-up plastic chairs for the stadium. * UV resisted pp plastic shell Seats will be fixed by floor/riser mounted steel frames. it will be powder coated for outdoor used. * Seats tip-up by spring loaded. * With arm and cupholder. |
Centre To Centre 50 |
|
ST3082 RM PADDED W/T AC
APOLLO Series |
Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene | Indoor/Outdoor/Bleacher |
Material: * Auto tip-up plastic chairs for the stadium. * UV resisted pp plastic shell Seats will be fixed by floor/riser mounted steel frames. it will be powder coated for outdoor used. * Seats tip-up by spring loaded. * Padded seat and back * With arm and cupholder |
Centre To Centre 50 |
* The dimensions of the Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene are measured in the unit of "centimeter" (cm)
| Test Report No. | Organization | Type | Date & Time | Test Performed | Test requested |
| AJD201205462 | SGS | Stadium seating | 2013 | SELECTED TEST(S) AS REQUESTED BY APPLICANT | EN 12727:2000 FURNITURE-RANKED SEATING -TEST METHODS AND REQUIREMENTS FOR STRENGTH AND DURABILITY (FOR SEVERE USE) |
| Test Item | Test Method | Test Principles & Requirements | Test result |
| Seat and Back Static Load Test |
DIN EN 12727:2000
Clause 6.3 |
There shall be no fracture on the sample when applying load of 2000N at seat and applying back load of 760N at back for 10 times, maintaining the load for 10 seconds each cycle. | PASS |
|
Horizontal Forward Static
Load to Back |
DIN EN 12727:2000
Clause 6.4 |
There shall be no fracture on the sample when applying a horizontal forward static load of 760N at back for 10 times,
maintaining the load for 10 seconds each cycle. |
PASS |
| Seat Impact Test |
DIN EN 12727:2000
Clause 6.11 |
There shall be no fracture on the sample when an impactor falls freely from the height of 300 mm onto seat for 10 times. | PASS |
STUNITY® KINDLY REMINDER ALL OUR CERTIFICATIONS ARE REAL ONE. NOT FAKE, NOT FAKE, NOT FAKE!!! PLEASE CONTACT US TO SHOW YOU!!
C ase A in 2017
Our fantastic Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene and retractable stands are used in Carrara indoor stadium, Gold coast sports and leisure center, Australia in 2017.
C ase B in 2011
Our fantastic Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene are used for in Zahur Ahmed Chowdhury Stadium, Chittagong, Bangladesh in 2011.
C ase C in 2017
Our fantastic Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene and retractable stands are used in the indoor stadium of John Curtin College of the Arts, Australia in 2017.
Blowing plastic product Operation
A. Preparing HDPE
B. Filling HDPE
C . Blowing
D. Finish product
E. Stamping line
F. Welding line
G . Powder coating line
H. Packing
I. Shipping
I nner Packing
of our Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene.
O uter Packing
of our Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene.
W arehouse
for stocking the Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene package. And then waiting for loading.
L oading & shipping
for our Fixed folding plastic arena seats football stadium bleacher stadium seats polypropylene order.
