Quick Details
-
Application:
-
Apartment
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JOYTECH
-
Model Number:
-
SW400DC
-
Type:
-
Gate Operators
-
Max.single-leaf weight:
-
400kgs per wing
-
Max.single leaf length:
-
3m
-
Limit Switch:
-
Magnetic Limit Switch
-
Operating Voltage:
-
220V/110VAC
-
Motor Power:
-
24VDC,60W
-
Safety Clutch:
-
Electronic current sensing
-
Remote Control:
-
2 pcs, rolling code, 4 ch, 433.92MHz
-
Driving Method:
-
Screw drive piston type
-
Solar Charging Kit:
-
Available
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
3D model design
-
Application:
-
Apartment
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JOYTECH
-
Model Number:
-
SW400DC
-
Type:
-
Gate Operators
-
Max.single-leaf weight:
-
400kgs per wing
-
Max.single leaf length:
-
3m
-
Limit Switch:
-
Magnetic Limit Switch
-
Operating Voltage:
-
220V/110VAC
-
Motor Power:
-
24VDC,60W
-
Safety Clutch:
-
Electronic current sensing
-
Remote Control:
-
2 pcs, rolling code, 4 ch, 433.92MHz
-
Driving Method:
-
Screw drive piston type
-
Solar Charging Kit:
-
Available
Swing gate opener
SW400DC is 24V DC motor, for single gate 400 KGS, double gates 800 KGS.
|
Technical Parameters--SW400DC
|
|
|
|
|||
|
Power Supply
|
110V/220V AC
|
|
|
|||
|
Max. gate weight
|
400 kg per wing
|
|
|
|||
|
Motor Power
|
60W 24V DC
|
|
|
|||
|
Max. piston stroke
|
45cm
|
|
|
|||
|
Operating cycle
|
22 seconds per 90 (approx)
|
|
|
|||
|
Max.gate length
|
3m
|
|
|
|||
|
Working duty
|
S2,30min
|
|
|
|||
Main Features
1.Soft start slow stop, automatic close, obstacle detection by automatic reversng.
2.Interface for GSM, infrared sensor, alarm light, wall button.
3.Back up battery is available.
4.Works with solar panel.
5.Shell material is aluminum, arm is stainless steel.
6.Separate control unit, easy to install.

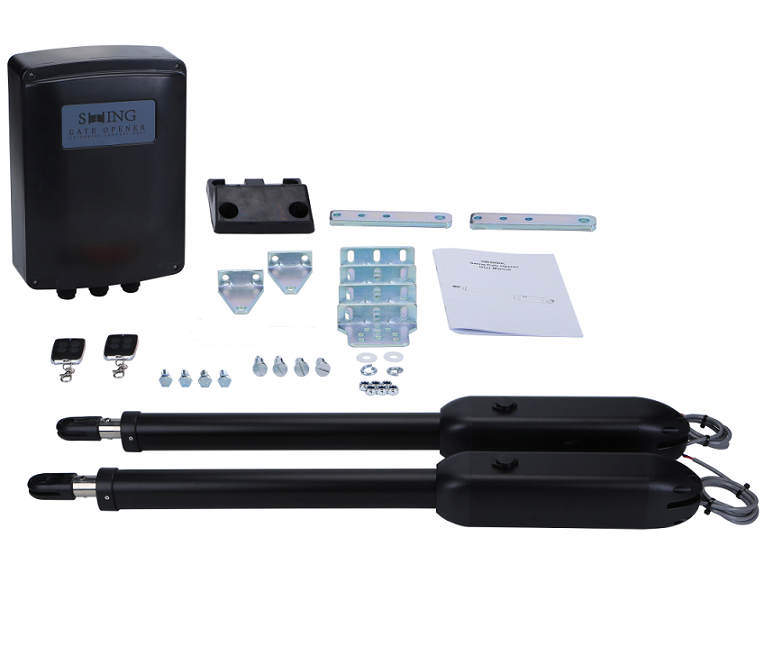

Standard unit
SW400DC motor * 2pcs.
control box * 1pcs.
control board * 1pcs.
remote control * 2pcs.
manual release key * 1pcs.
user manual*1pcs.
mounting accessories.
