- Product Details
- {{item.text}}
Quick Details
-
Power:
-
112kw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Evangel
-
Maximum Digging Height:
-
8638MM
-
Maximum Digging Depth:
-
5546MM
-
Machine Weight:
-
13000 kg
-
Max Digging Radius:
-
6230MM
-
Rated Speed:
-
4.2/2.2
-
Engine:
-
Imported
-
Name:
-
Excavator
-
Location:
-
China Shangdong Province
-
Keywords:
-
Digging Machine
-
Product name:
-
Mini Crawler Excavator
-
Color:
-
Customised
-
Certification:
-
CE ISO
Quick Details
-
Operating Weight:
-
6TON
-
Bucket capacity:
-
0.4-0.52CBM
-
Engine Brand:
-
Imported
-
Power:
-
112kw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Evangel
-
Maximum Digging Height:
-
8638MM
-
Maximum Digging Depth:
-
5546MM
-
Machine Weight:
-
13000 kg
-
Max Digging Radius:
-
6230MM
-
Rated Speed:
-
4.2/2.2
-
Engine:
-
Imported
-
Name:
-
Excavator
-
Location:
-
China Shangdong Province
-
Keywords:
-
Digging Machine
-
Product name:
-
Mini Crawler Excavator
-
Color:
-
Customised
-
Certification:
-
CE ISO
Contact Ways:
Penny Wang
Sales Manager
Whatsapp/Wechat/Mobile: +86-187 2126 1510
E-mail: penny@evangelchina.com
Evangel Industrial (Shanghai) Co., Ltd / Evangel International Machinery Ltd.
Add: Suite 2806, Super Ocean Finance Center
No.2067 West Yan'an Road, Shanghai 200336, China.
Products Description

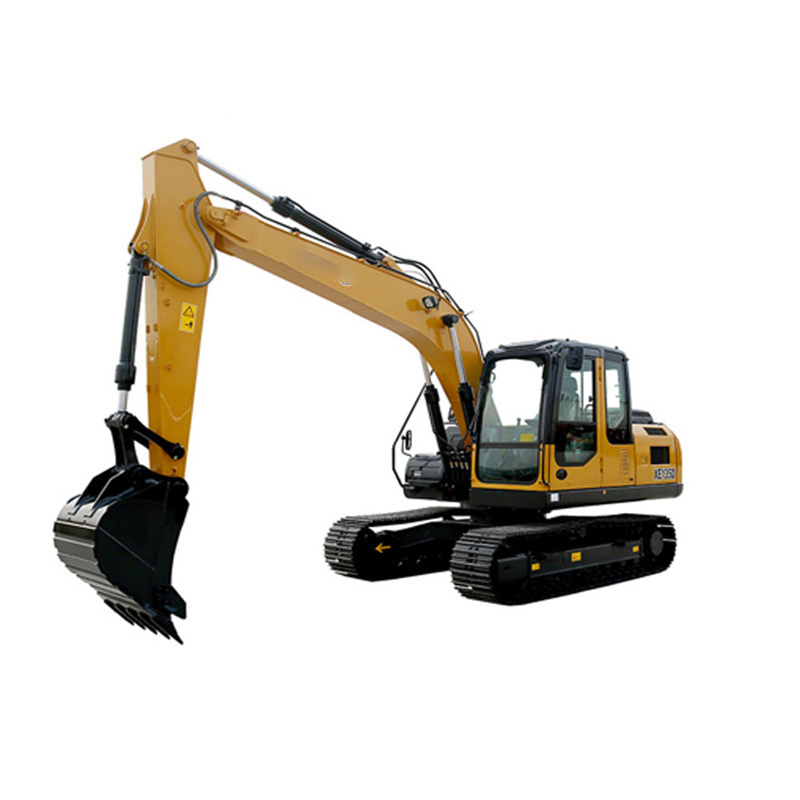

XE135B construction building machinery 13 ton crawler excavator
XE135B adopts a good engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized by the majority of users.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
1. Ecological and economical
* Adopting new environmental friendly top engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable.
* It adopts a cross-stage large displacement constant power variable pump with high volumetric efficiency.
2. Multiple applications
* Short tail design and short slewing radius can achieve flexible operation in confined space.
* Multiple additional configurations to adapt to a variety of operating requirements.
3.Comfortable operational experience
* Fresh air conditioning system to ensure the appropriate temperature.
* Toughened glass cockpit with good safety view.
* Detailed design concept improves comfort.
4. Excellent after-sales service
* Global after-sales service system and quick response mechanism.
* Real-time technical consultation and maintenance.
* Adopting new environmental friendly top engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable.
* It adopts a cross-stage large displacement constant power variable pump with high volumetric efficiency.
2. Multiple applications
* Short tail design and short slewing radius can achieve flexible operation in confined space.
* Multiple additional configurations to adapt to a variety of operating requirements.
3.Comfortable operational experience
* Fresh air conditioning system to ensure the appropriate temperature.
* Toughened glass cockpit with good safety view.
* Detailed design concept improves comfort.
4. Excellent after-sales service
* Global after-sales service system and quick response mechanism.
* Real-time technical consultation and maintenance.
Specification
|
Description
|
|
Unit
|
Parameter value
|
|
Operating weight
|
|
Kg
|
13000
|
|
Bucket capacity
|
|
m³
|
0.4-0.52
|
|
Engine
|
Model
|
/
|
BB-4BG1TRP
|
|
|
No. of cylinders
|
/
|
4
|
|
|
Output power
|
kw/rpm
|
72.7/2200
|
|
|
torque/speed
|
N.m
|
337.6/1600
|
|
|
Displacement
|
L
|
4.329
|
|
Hydraulic system
|
Main pump
|
/
|
2
|
|
|
Rated flow of main pump
|
L/min
|
2×123
|
|
|
Pressure of prime valve
|
MPa
|
31.4/34.3
|
|
|
Pressure of travel system
|
MPa
|
34.3
|
|
|
Pressure of swing system
|
MPa
|
25
|
|
|
Pressure of pilot system
|
MPa
|
3.9
|
|
Oil Capacity
|
Fuel tank capacity
|
L
|
250
|
|
|
Hydraulic tank capacity
|
L
|
130
|
|
|
Engine oil capacity
|
L
|
14
|
|
Appearance size
|
Overall length
|
mm
|
7770
|
|
|
Overall width
|
mm
|
2512
|
|
|
Overall height
|
mm
|
2880
|
|
|
Width of platform
|
mm
|
2512
|
|
|
Length of crawler
|
mm
|
3660
|
|
|
Overall width of chassis
|
mm
|
2490
|
|
|
Width of crawler
|
mm
|
500
|
|
|
Track length on ground
|
mm
|
2910
|
|
|
Crawler gauge
|
mm
|
1990
|
|
|
Clearance under counterweight
|
mm
|
964
|
|
|
Min. ground clearance
|
mm
|
478
|
|
|
Min. tail swing radius
|
mm
|
1805
|
|
|
Height of track
|
mm
|
|
|
Working scope
|
Max. digging height
|
mm
|
8641
|
|
|
Max. dumping height
|
mm
|
6181
|
|
|
Max. digging depth
|
mm
|
5538
|
|
|
Max. vertical wall digging depth
|
mm
|
4727
|
|
|
Max. digging reach
|
mm
|
8296
|
|
|
Min. swing radius
|
mm
|
2335
|
|
Worker
|
Length of boom (Standard)
|
mm
|
4600
|
|
|
Length of arm (Standard)
|
mm
|
2510
|
|
|
Bucket capacity (Standard)
|
m³
|
0.52
|
|
|
Length of boom (Optional)
|
m³
|
/
|
|
|
Length of arm (Optional)
|
m³
|
/
|
|
|
Bucket capacity (Optional)
|
m³
|
0.4
|
