Quick Details
-
Brand Name:
-
JINGDA
-
Automatic Grade:
-
Automatic
-
Key Selling Points:
-
High-accuracy
-
Material type:
-
Color steel sheet;galvanized sheet,aluminum sheet
-
Material thickness(mm):
-
0.4-0.8
-
Material Width(Mpa):
-
≤1250(Max)
-
Material Length(mm):
-
2000-16000
-
Production speed(m/min):
-
3-8 (Adiustable)
-
Valid length of double belt conveyor(mm):
-
16000-36000
-
Work pressure on pouring foam(Bar):
-
150-200
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Weight (KG):
-
100000
-
Core Components:
-
INQUIRUE US
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDA
-
Automatic Grade:
-
Automatic
-
Key Selling Points:
-
High-accuracy
-
Material type:
-
Color steel sheet;galvanized sheet,aluminum sheet
-
Material thickness(mm):
-
0.4-0.8
-
Material Width(Mpa):
-
≤1250(Max)
-
Material Length(mm):
-
2000-16000
-
Production speed(m/min):
-
3-8 (Adiustable)
-
Valid length of double belt conveyor(mm):
-
16000-36000
-
Work pressure on pouring foam(Bar):
-
150-200
-
After-sales Service Provided:
-
Field maintenance and repair service
Product Paramenters
|
Item
|
|
Parameter
|
|
|
|||
|
Suitable Raw Material
|
Type
|
Color Steel Sheet/Stainless Steel Sheet/Aluminum Sheet
|
|
|
|||
|
|
Tickness
|
0.4-0.8mm(Steel Sheet)、0.35-0.6mm（Stainless Steel Sheet)
|
|
|
|||
|
|
Width
|
≤1250 mm
|
|
|
|||
|
|
Weight
|
Maximum 6T/10T
|
|
|
|||
|
|
Core Material
|
PU/PIR/Rock wool/Glass Cotton
|
|
|
|||
|
Product Specification
|
Panel Length(mm)
|
2000-18000mm
|
|
|
|||
|
|
Panel Width(mm)
|
600-1200mm
|
|
|
|||
|
|
Panel Thickness(mm)
|
30-200mm/250mm Cold Storage Panel
|
|
|
|||
|
Procuct Speed(m/min)
|
|
3-7 Adjustable
|
|
|
|||
|
Valid Length Of Double Belt Conveyor (mm)
|
|
16000-40000mm
|
|
|
|||
|
Work Pressure On Pouring Foam(Bar)
|
|
150-200 Bar
|
|
|
|||
|
Total Power(KW)
|
|
About 200 KW(Not Including The Heating Power
|
|
|
|||
|
Total Size(Length*Width*Height)(m）
|
|
(100-200)m*(16-30)m*6m
|
|
|
|||
Details Images
Decoiling system
Filming device
Slitting device
Roll forming system
PU foaming system
Double belts system
Bandsaw cutting system
Stacking system
Cooling system
Packing system

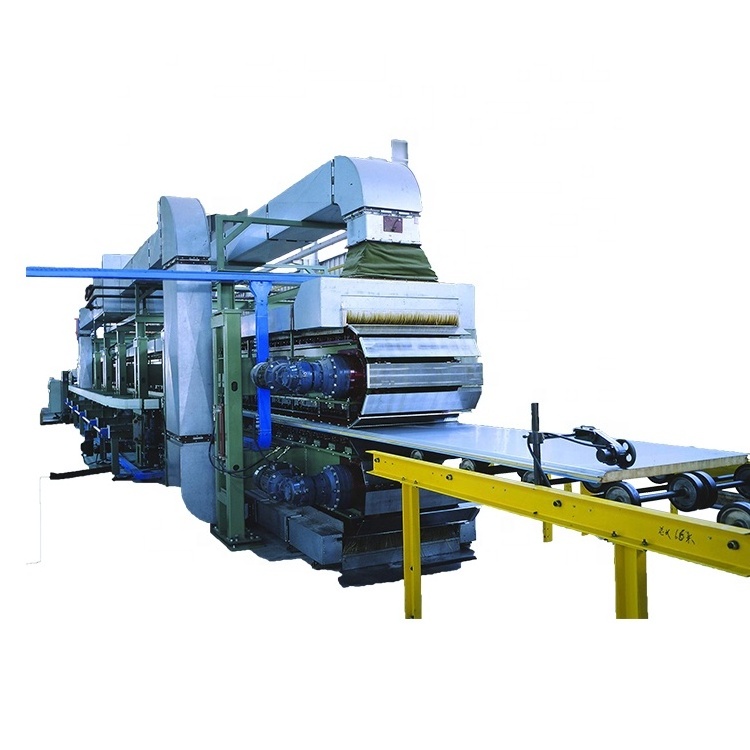

JF 100 type PU sandwich panel line is an
automatic production line
,
which is consisting of decoiler, film coating, pre-cutting equipment,roll forming machine system, preheating,
foaming
, solidification,
band saw cuttinig
,
cooling
, stacking and packing.
The whole line integtates technologies of mechanics, chemistry, eletrical control, hydraulic pressure pneumatic and temperature control.
Features
1.Beautiful and applicable, multiple functions ,such as thermal isolation,sound isolation and flame retardence.
2.Using heated air recycle oven ,strictly control the temperature of PU foaming and solidification in suitable range.
3.Using high pressure foaming system ,precise measurement,high stabilith,little dust in locale,protect the worker's health.
4.Using 141B Or C5 as foaming agent .Insted of carbon chloral-fluoride,make the PU foaming treatment treatment become environmental
production crafe.
5.Special double belt cojveyor ,flat surface of sandwich panel,even thinckness,anti-patter n.
6.Operation system controlled by PLC computer ,personal design and simple operation.
1.Beautiful and applicable, multiple functions ,such as thermal isolation,sound isolation and flame retardence.
2.Using heated air recycle oven ,strictly control the temperature of PU foaming and solidification in suitable range.
3.Using high pressure foaming system ,precise measurement,high stabilith,little dust in locale,protect the worker's health.
4.Using 141B Or C5 as foaming agent .Insted of carbon chloral-fluoride,make the PU foaming treatment treatment become environmental
production crafe.
5.Special double belt cojveyor ,flat surface of sandwich panel,even thinckness,anti-patter n.
6.Operation system controlled by PLC computer ,personal design and simple operation.
