Quick Details
-
Type:
-
TFT
-
Application:
-
Indoor
-
Warranty:
-
1 Year
-
Frame color:
-
option
-
broadcast media:
-
3G/Wifi/Cable
-
Brightness:
-
600cd/m2
-
Viewing Angle:
-
178°/178°
-
Input Voltage:
-
100-240V AC 12V/ DC
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
USER/OEM
-
Model Number:
-
US-T4201HC
-
Type:
-
TFT
-
Application:
-
Indoor
-
Warranty:
-
1 Year
-
Frame color:
-
option
-
broadcast media:
-
3G/Wifi/Cable
-
Brightness:
-
600cd/m2
-
Viewing Angle:
-
178°/178°
-
Input Voltage:
-
100-240V AC 12V/ DC

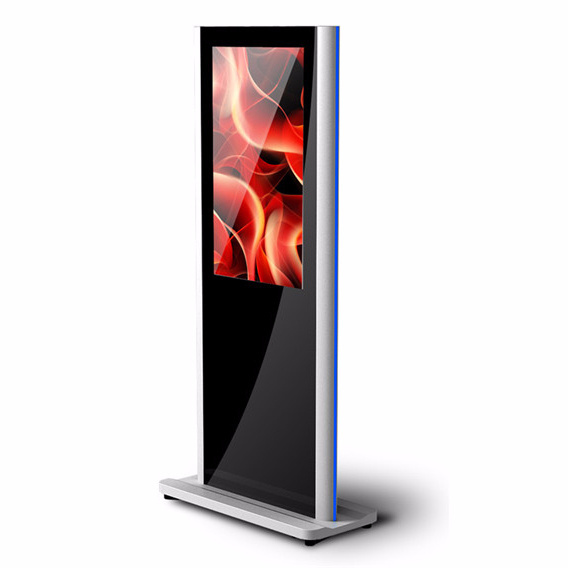

Best price for Shopping Mall 42 inch stand floor touch screen kiosk all in one computer digital totem advertising touch screen
Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
| Specifications | ||||||||||
| Model No. | US-T4201HC | |||||||||
| Panel size | 19-55" TFT-LCD | |||||||||
| Display area(mm)/mode | 930×523 16:9 | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) | |||||||||
| Brightness (nits) | 600cd/m2 | |||||||||
| Contrast | 4000:01:00 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared Touch | |||||||||
| positioning accuracy | ±2mm | |||||||||
| Touch Media | Finger/touch pen opaque objects | |||||||||
| Transmittance | ≥92% | |||||||||
| Glass Hardness | 7H | |||||||||
| Click Mode | two points | |||||||||
| Response Time | ≤10ms | |||||||||
| ClickLife Time | >=60M times | |||||||||
| PC | ||||||||||
| Motherboard | H61 | |||||||||
| CPU | I3-2100 dual cores four threads 3.1G | |||||||||
| Memory | DDR3 1333MHZ 4GB | |||||||||
| Hardware | SATA II320GB | |||||||||
| Keyboard and Mouse(Optional) | wireless waterproof keyboard and mouse set | |||||||||
| Interface | USB*4,VGA*1,DVI*1,HD*1,RJ45*1,Audio*1,MIC*1 | |||||||||
| Software environment | Windows XP/ Windows 7/ Windows 2003 Server Enterprise Edition /Linux | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | 100-240V AC 12V/ DC | |||||||||
| Maximum power consumption | 230W | |||||||||
| Standby power consumption | <3W | |||||||||
| Temperature | ||||||||||
| Working temperature | -20°C~+80°C | |||||||||
| Storage temperature | -40°C~+80°C | |||||||||
| Working humidity | 25%~85% | |||||||||
| Storage humidity | 20%~90% | |||||||||
| Support signal format | ||||||||||
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
| Audio format | Wave/MP3/WMA/AAC | |||||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
| Image resolution | 480P/720P/1080P | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 1000*500.*1300.2 ((for reference) | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | Metal case SPCC | |||||||||
| Installation | Floor-standing | |||||||||
| Quality Standard | ISO9001,CCC | |||||||||
| Sample leading time | 12~15 working days | |||||||||
| Bulk order leading time | 12~15 working days | |||||||||
| Payment term | T/T or Western union | |||||||||
| Warranty |
1 year |
|||||||||
Main functions:
1. Full HD 1920*1080, LED screen, support display models of 16:9, 9:16 (Horizontal/Vertical) etc.
2. Multi-groups of on/off time schedule could be setted remotely and control the display through Internet.
3. Interactive optical multi-points touch function, touch in two points simultaneously.
4. Compatible multimedia file formats: MPEG1/2/4, AVI, RM,WMV,DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc.
5. Scrolling texts in English and Chinese version are available, various display modes for titles (Fonts and colors of letters, background clolors, the relative attributes of rolling dirctions in horizontal or vertical could be adjusted).
6. Support media contents combine by videos, pictures, flashes, marquee etc.
7. Support uploading files through Wifi and cable network.
8. Intelligent system for arranging and playing programs, easy and fast operation.
9. Support displaying in dual screens, play different video files and audio contents in these two screens.
Click the next picture to learn USER popular products.
1.Having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 13 years of experience gives us the edge!
2. We currently provide OEM/ODM services for many customers worldwide, building, proof of concepts, designs and large orders is our strength.
3. Here at USER SDT, we understand that our new partners need to order samples, we encourage them to do so, once you have seen the quality of our products you will understand why we are number one in our market.
4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.
5.At USER SDT, we offer quality services from the ideas to proof of concept and finally to sample prototypes, this gives us experience and a wide range of intelligent displays product knowledge.
6.Our years experiences made us faster and better, our teams are truly specialized, from our purchasing department to our factory workers, everyone is key to our success. Our sales teams are composed of many nationalities , some from foreign markets with years of experience. This gives USER SDT the best communication skills in the industry. Our English and world market knowledge is another reason why choosing us makes only sense.
7.Our Trade Assurance limit on Alibaba keeps growing, we can now be covered up to US $325,000.00 on your orders, take the time to read about this option, secure your orders with Alibaba Trade Assurance today!
8.As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
Our factory is under the ISO 9001/ISO14001 certification. Our products have been exported to over eighty (80) worldwide countries, many of our products are also certified from SASO, KC, BIS, PSE and CE, FCC, RoHS to UL. At present, USER SDT can customize displays from 5 to 107 inches.
Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
1) Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
2) Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $323,000, and it is still going up.
5) Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company USER perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
