Quick Details
-
Model Number:
-
KS0307
-
Max. Current:
-
DC 12V /20A 24V 10A
-
Mechanical Life:
-
10000 Cycles
-
Products name:
-
7Pin (ON) OFF (ON) DPDT Momentary and illuminated Rocker Switch
-
MOQ:
-
100pcs
-
Function:
-
(ON)-OFF-(ON)
-
Certificate:
-
CE, IP TEST REPORT
-
Material:
-
Anti fire retardant ABS plastic
-
Operating voltage:
-
DC 3-30V
-
Terminal:
-
7 Pin
-
Symbol Type:
-
Customzied Laser symbol
-
Cover Color:
-
black
-
Packing:
-
Blister box, or in bulk
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
DC 30V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KETO
-
Model Number:
-
KS0307
-
Max. Current:
-
DC 12V /20A 24V 10A
-
Mechanical Life:
-
10000 Cycles
-
Products name:
-
7Pin (ON) OFF (ON) DPDT Momentary and illuminated Rocker Switch
-
MOQ:
-
100pcs
-
Function:
-
(ON)-OFF-(ON)
-
Certificate:
-
CE, IP TEST REPORT
-
Material:
-
Anti fire retardant ABS plastic
-
Operating voltage:
-
DC 3-30V
-
Terminal:
-
7 Pin
-
Symbol Type:
-
Customzied Laser symbol
-
Cover Color:
-
black
-
Packing:
-
Blister box, or in bulk
-
Certification:
-
CE

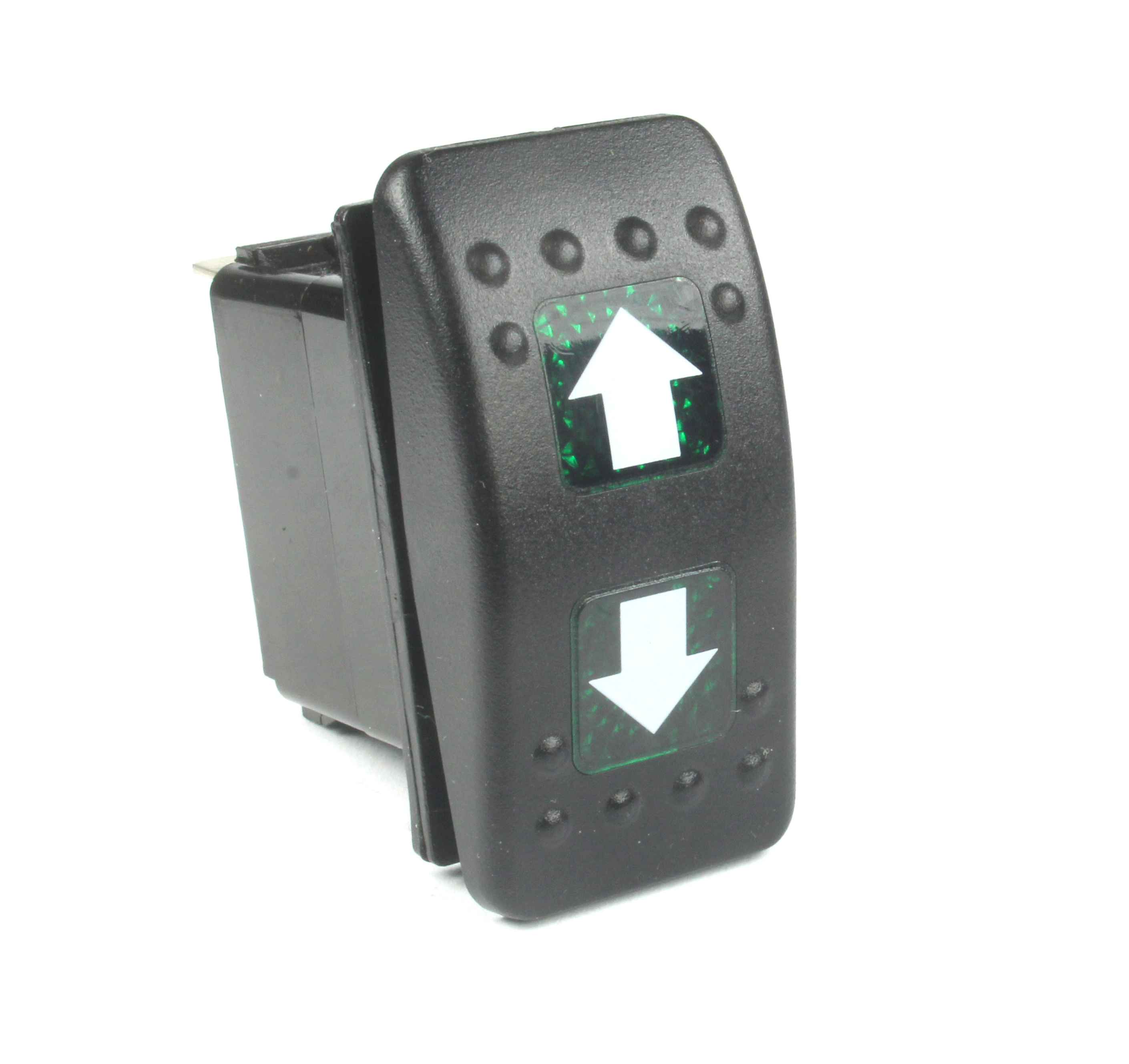

7Pin (ON) OFF (ON) DPDT Momentary and illuminated Rocker Switch for ATV SUV
Product parameters
Product size: 49.57*24.4*49mm
Installation size: 37.2*21.2mm
Prodect weight: 30g
Switch function: (ON)-OFF-
(ON)
Maximum continuous load: AC 125V/10A ,12V/20A,24V/10A
Maximum load and time: DC 12V/23A 24V/11.5A, 5 second /1 Cycle, 30 Cycles continuously
DC maximum voltage: 30V
DC minimum voltage: 3V
Maximum contact load: AC 125V/10A ,12V/20A,24V/10A
Work cycle: 5 second /1 Cycle
Product life cycle without load: 20 000 Cycles
Product life cycle full load: 10 000 Cycles
Product contact material: Silver tin oxide / copper
Product protection level: IP67
Product scope of application: Suitable for all 12/24V vehicle, such as Cars, Motorcycle, Bus, Boats, RV car, Yacht, SUV and Off-road vehicle.
On / Off
SPST
12-24 Volt
10-15 AMP Rating
LED Dash & Activation Lights
Backlit Illumination
Blue Text Lights When Dash Lights Turned On
Blue Symbol Lights When Switch Turned On Also
Mounting Hole Required Approx. 21 X 37mm
Same Switch Body As Standard ARB Switch But LED & Backlit
What is The PRODUCT FEATURES of Our Rocker Switch?
| Keto Rocker Switch | |
| Material | PA66 Nylon Flame Resistance Eco-friendly ABS plastic |
| Certificate | CE,Rohs,Reach, IP66,E-mark |
| Symbol | Silk printing or Laser for symbol in the acutator |
| Protection | Output circuit protection, overload protection, reverse polarity protection |
| OEM/ODM | OEM Rocker Switch accepted |
| MOQ | 50pcs for stock items |
Which Rocker SWITCH do I Need?
Rocker Switches are a popular range of durable and reliable switch body as used as automotive and marine equipment. Keto offers the rocker switch Contura II, V, XIV switches together with a range of dedicated switch mounts and accessories.
Off-On One-way switch to simply switch on and off, e.g. Spotlamps
Off-Mom Momentary switch which can be used as either a fog switch on the later Defender, or simply as a horn function. See Wiring Diagram.
On-On Single Pole ON-ON switch for 2-way operation of accessories with their own switched facility.
Off-On-On Three position switch allowing you to wire two auxiliary circuits through one switch. Typical application would be for controlling two pairs of spotlamps or two electric fans via the one switch. Click switch once to activate circuit one; click again to activate circuits one and two.
On-Off-On This alternative three position switch allows you to wire two auxiliary circuits through the one switch. This switch operates where circuits one or two are activated completely independently from one another.
This switch will replace the standard switch supplied with the popular Exmoor Trim/Waeco heated seat kits
Mom-Off-Mom Momentary spring loaded 2-way rocker switch. Use the DP switch wiring when using the momentary switch as an electric window control. Use the SP switch wiring when using the momentary switch as a winch control.
|
Packaging |
Normal bilster bulk packing , Cardboad blister packing |
| Carton Size | 36*33.5*56cm 500pcs per Ctn |
| Gross weight | 18KGS |
| Shipping | DHL/Fedex/UPS or by sea |
| MOQ | 50pcs/design for stocked symbol |
COMPANY BRIEF
We are one of the professional auto accessories company in Shenzhen, China. Our warm term is always communicating with clients, and responsibility for the request.Our products lines included follows:
USB Socket: Dual USB Car Charger Socket suitable for 12V-24V-36V Vehicles,Marine and Motorcycle
Rocker Switch: Making rocker switchs with different symbols as customer requested.
Marine Switch Pane: The professional manufacture for the switch panels for marine and camper
Voltmeter&Ammeter: High Precision Universal Blue LED Digital Display Car Refitting Voltmeter for Motorcycle / Boat
