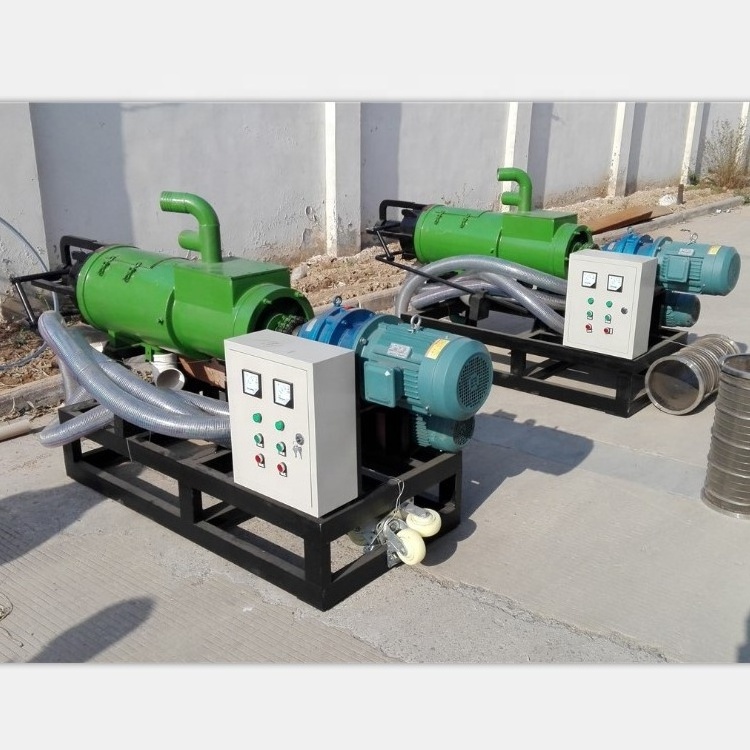

DZJX Chicken Manure cow dung Screw Press dewatering Machine Excremen Liquid Solid Separator Processing Machine

DZJX Chicken Manure cow dung Screw Press dewatering Machine Excremen Liquid Solid Separator Processing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2800

≥5 Sets

US $2500

≥10 Sets

US $2250

≥100 Sets

US $1950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: Dongzhen

Power:: 4-5.5KW

Pump power:: 3kw

Voltage:: 110/220/380V...

Frequency:: 50/60HZ

Capacity:: 5-20m3/h

Function:: solid liquid sludge separator

Application:: Farms, livestock farms, biogas digesters

Color:: Customers' Requirements

Quick Details

Weight (KG):: 300

Type:: solid liquid separator

Use:: Animal manure processing

Place of Origin:: Henan, China

Brand Name:: Dongzhen

Power:: 4-5.5KW

Pump power:: 3kw

Voltage:: 110/220/380V...

Frequency:: 50/60HZ

Capacity:: 5-20m3/h

Function:: solid liquid sludge separator

Application:: Farms, livestock farms, biogas digesters

Color:: Customers' Requirements

Product Description

In many solutions to the waste water pollution, it is a better choice with low input and obvious economic benefit to use the spiral extruded solid-liquid separator to separate the pig manure.

The advantages of spiral extrusion solid-liquid separator: high automation level, low running speed, simple operation, easy maintenance, high daily capacity, low power consumption and suitable for continuous operation. Most of its parts are made of stainless steel, and the size of the machine is small, it is the ideal fecal treatment equipment for large-scale farms. It improves the treatment and benefit of livestock and poultry waste greatly. The machine can also be customized according to different industries and users.

Model

DZ-180

Voltage: Customer Specification

Frequency: 50/60HZ

Motor:4kw

Capacity:5-10m3/h

Inner diameter of filter:180mm

Diameter of inlet:76cm

Overflow diameter:76cm

Drainage pipe diameter:110cm

Overall dimension:2000*600*1300mm

Weight:340kg

DZ-200

Voltage: Customer Specification Frequency: 50/60HZ

Motor:4kw

Capacity:10-15m3/h

Inner diameter of filter:200mm

Diameter of inlet:76cm

Overflow diameter:76cm

Drainage pipe diameter:110cm

Overall dimension:2200*610*1350mm

Weight:510kg

DZ-280

Voltage: Customer Specification Frequency: 50/60HZ

Motor:5.5kw

Capacity:15-20m3/h

Inner diameter of filter:280mm

Diameter of inlet:76cm

Overflow diameter:76cm

Drainage pipe diameter:110cm

Overall dimension:2400*800*1300mm

Weight:680kg

Parameters

water consume when cleaning	0.1M³
Frequency of cleaning	20-30days
Feeding mode	Pump or hopper
Free parts	Pump:1 Unit,3KW		1 Unit	3KW
		Water pipe:Dia:10mm/13.5mm, 12 meters		Dia:10mm/13.5mm	12 meters
		Switch Box:1 Unit		One Unit

Main Features

1.Slag-liquid Separation Speed
2. Strong decontamination ability, no clogging, easy cleaning.
3. High corrosion resistance and long service life.
4. High automation and low power consumption

Application

1.Animal wastes, such as pig manure, cow dung, poultry dung, horse excrement and other kinds of animal manure; 2.Biogas slurry, sludge gas and biogas fermentative residue; 3.Maniocwaste, tea slag, sweet potato waste, maize pulp, bagasse, medicine dregs, wppd pulp fiber, paper pulp fiber, bean dregs, coffee grounds and so on; 4.Any kinds of solid liquid separation.

Product details

Products Show

Our Service

Guarrantee and after sale service :

*One year guarantee for the whole machine
*24hours technical support by email
*24 hours online service
*Instruction in English language
*User manual in PDF and Printed copy
*Installation videos
