Quick Details
-
Place of Origin:
-
Sichuan,China
-
Brand Name:
-
Ebyte
-
Supplier Type:
-
OEM OEM
-
Product name:
-
Wireless rf transmitter and receiver
-
Product advantages:
-
Continuous transmission
-
Working frequency:
-
433 MHz
-
Transmitting power:
-
33 dBm (2W)
-
Transmission Range:
-
4000 meter
-
Size:
-
82*62*25 mm
-
Communication interface:
-
RS232 / RS485
-
Antenna type:
-
SMA-K
-
Power supply:
-
10-28V
-
Name 1:
-
industrial modem
Quick Details
-
Chipset:
-
wireless IOT
-
Application:
-
industrial IOT control
-
Model Number:
-
E90-DTU-433C33
-
Place of Origin:
-
Sichuan,China
-
Brand Name:
-
Ebyte
-
Supplier Type:
-
OEM OEM
-
Product name:
-
Wireless rf transmitter and receiver
-
Product advantages:
-
Continuous transmission
-
Working frequency:
-
433 MHz
-
Transmitting power:
-
33 dBm (2W)
-
Transmission Range:
-
4000 meter
-
Size:
-
82*62*25 mm
-
Communication interface:
-
RS232 / RS485
-
Antenna type:
-
SMA-K
-
Power supply:
-
10-28V
-
Name 1:
-
industrial modem

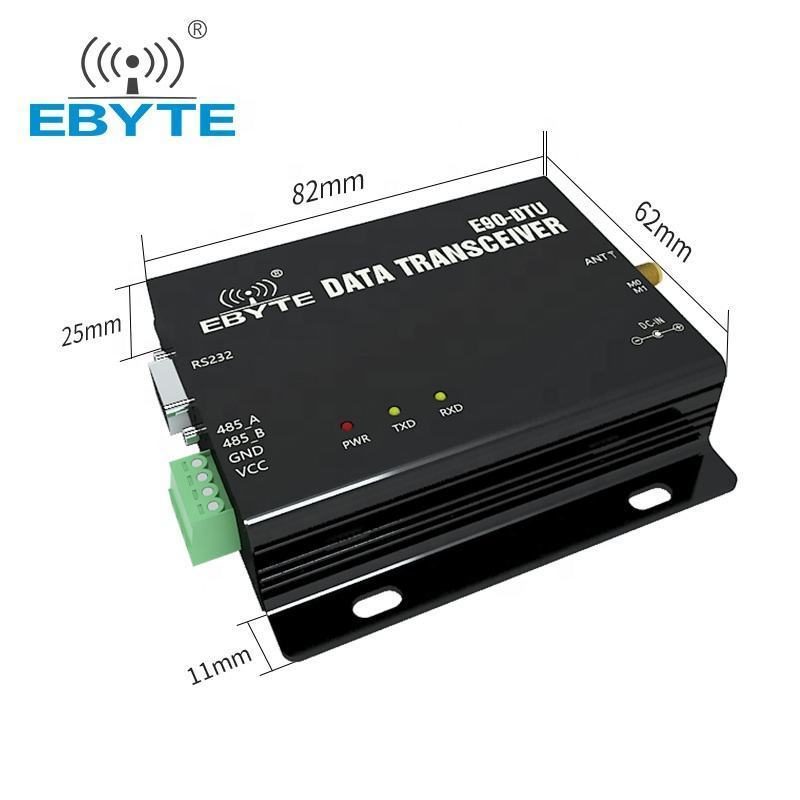

Ebyte E90-DTU-433C33 4km long range MODBUS 33dBm high power 433MHz wireless data transmitter and receiver
| RF Parameter |
Value
|
Remark |
|
Working frequency
|
425~450.5 MHz |
Default: 433MHz |
| Transmitting power | 33 dBm |
About 2W |
| Air data rate | N/A |
Self-adapted baud rate |
| Test distance | 4000 meter |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m. |
| Hardware Parameter |
Value
|
Remark |
|
Size
|
82 * 62 * 25 mm |
Without SMA-K
|
| Antenna type | SMA-K |
- |
| Communication interface |
RS232 / RS485
|
Standard DB9 Hole/3.81 connecting terminal
|
|
Baud rate
|
9600 |
Baud rate: 1200~115200
|
| Buffer | Unlimited data input (baud rate≤57600) |
Continuous transmission, no sub-package
|
| Electronic parameter | Min. | Typ. | Max. | Unit |
|
Power supply
|
10 | 12 | 28 | V |
| Transmitting current | - | 938 | - | mA |
| Stand-by current |
-
|
31 | - | mA |
| Operating temperature | -40 |
20
|
+85 | ℃ |
|
Operating humidity
|
10 |
60
|
90 | % |
| Storage temperature | -40 |
20
|
+125 | ℃ |
