Quick Details
-
Min. turning diameter(full load):
-
8.02 m
-
Angle of approach (full load):
-
49.8°
-
Departure Angle (full load):
-
34.1°
-
Front suspension:
-
Horizontal leaf spring independent suspension
-
Rear suspension:
-
Integral bridge type non-independent suspension
-
Motor Rated Current:
-
70 A
-
Motor Rated Voltage:
-
48 V
-
Capacity of Battery:
-
170 Ah
Quick Details
-
Tire Size:
-
18*8.5*-8
-
Dimension:
-
3086*1200*1740mm
-
Maximum total mass:
-
900 kg
-
Min. turning diameter(full load):
-
8.02 m
-
Angle of approach (full load):
-
49.8°
-
Departure Angle (full load):
-
34.1°
-
Front suspension:
-
Horizontal leaf spring independent suspension
-
Rear suspension:
-
Integral bridge type non-independent suspension
-
Motor Rated Current:
-
70 A
-
Motor Rated Voltage:
-
48 V
-
Capacity of Battery:
-
170 Ah
Products Introduction

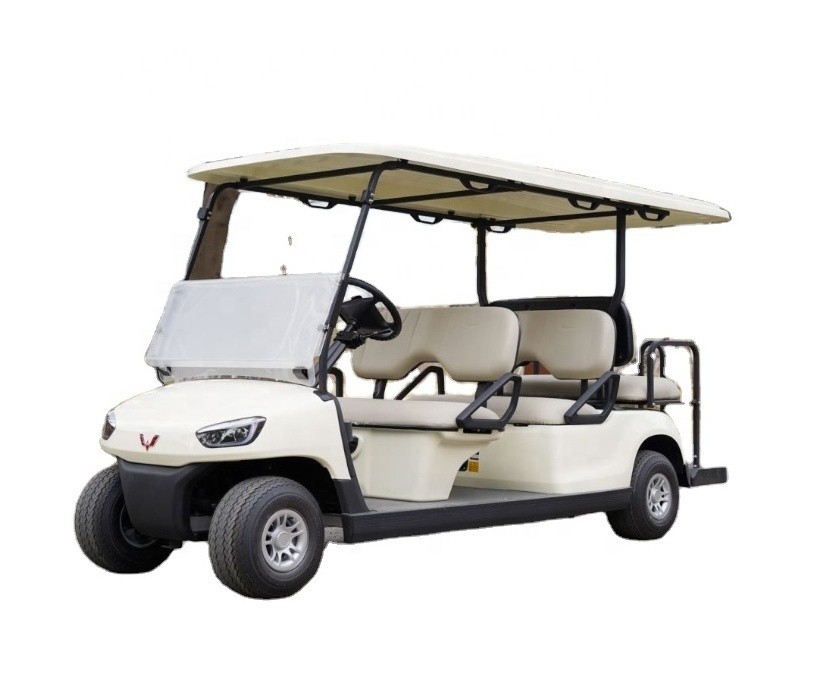

Following the vehicle regulation level, Wuling golf cart provides more stable and reliable performance with IP 65 Protection and overheat protection.
Details Images
high-strength antiseptic .
Wuling is the only use the high-strength aluminum alloy for body frame and Dacromet technology for all standard chassis parts in industry.
More reliable.
Front single leaf spring & cylindrical shock absorb-er support more reliable structure and lower failure .
Vehicle regulation level axle.
The rear axle is developed according to vehicle regulation level with higher bearing capacity , more reliable performance.
Stronger power system.
3/4 KW Motor, Curtis motor controller and
Trojan/
Leoch battery support stronger power performance.
Optional maintenance free battery are available.
Optional aluminum alloy .
It is equipped with aluminum alloy wheels, fashionable lights and streamlined appearance to reproduce the classic golf
.
Optional maintenance free battery .
The overturned seat can carry both people and objects.
|
Model
|
WLDT242
|
|
|
|
Body frame material
|
High-strength aluminum alloy
|
|
|
|
Key components
|
Battery
|
8V 170Ah
Trojan/Leoch
|
|
|
|
Motor
|
48V 4KW AC Asynchronous Motor
|
|
|
|
Controller
|
Curtis Controller
|
|
|
Performance
|
Cruising range
|
90-110 km
|
|
|
|
Curb weight
|
500 kg
|
|
|
|
Gross weight
|
900 kg
|
|
|
Performance
|
Max. climbing ability
|
30%
|
|
|
|
Max. speed(full load)
|
24 km/h
|
|
|
|
Min. turning diameter
|
8.02 m
|
|
|
Dimensions
|
Overall dimesions: LWH
|
3086*1200*1740mm
|
|
|
|
Tread(front/rear)
|
875/980 mm
|
|
|
|
Wheelbase
|
2440 mm
|
|
|
|
Min.ground clearance(full load)
|
116 mm
|
|
