Quick Details
-
Mounting Type:
-
Braket manual installation
-
Description:
-
Safety Light Curtain, light curtain sensor
-
Manufacturing Date Code:
-
2024.1
-
Model Number:
-
4 level
-
Type:
-
Beam Photoelectric Sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
senmatrix
-
Theory:
-
Thru-beam
-
Output:
-
NPN, PNP, (OSSD)
-
Product name:
-
Beam Photoelectric Sensor
-
Sensing type:
-
Photoelectric Sensor
-
Optical axis spacing:
-
10mm/20mm/40mm
-
Cross range:
-
0-5m (can be customized to 30m)
-
Output Type:
-
PNP NPN
-
Material:
-
Aluminum Metal Case
-
Application:
-
Wide Range
-
Operating Temperature:
-
-10 C.+55
-
Warranty:
-
1 Year
-
MOQ:
-
1 sets
Quick Details
-
Use:
-
safe protection
-
Series:
-
4 level
-
Features:
-
Beam Photoelectric Sensor
-
Mounting Type:
-
Braket manual installation
-
Description:
-
Safety Light Curtain, light curtain sensor
-
Manufacturing Date Code:
-
2024.1
-
Model Number:
-
4 level
-
Type:
-
Beam Photoelectric Sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
senmatrix
-
Theory:
-
Thru-beam
-
Output:
-
NPN, PNP, (OSSD)
-
Product name:
-
Beam Photoelectric Sensor
-
Sensing type:
-
Photoelectric Sensor
-
Optical axis spacing:
-
10mm/20mm/40mm
-
Cross range:
-
0-5m (can be customized to 30m)
-
Output Type:
-
PNP NPN
-
Material:
-
Aluminum Metal Case
-
Application:
-
Wide Range
-
Operating Temperature:
-
-10 C.+55
-
Warranty:
-
1 Year
-
MOQ:
-
1 sets
Welcome to Senmatrix!
*As
top sensor manufacturer
in China, We can customize sensors according to your industrial needs. Also, We surpport OEM, ODM.
*
We can
produce most of sensors of international brands
, acheiving same quality and fuctions. And we can provide them for you at a
more competitive price
!
*
Kindly
share your specific requirement
to us@Yuri
, and then I will
quote for you
.
*
"Experience
top-notch sensor performance
at the most competitive prices in the market. Our sensors outshine the competition in
quality and affordability
."
*
We are committed to providing excellent products and services to meet your needs and contribute to your success!
Details Images
Finger protection
Beam spacing/gap: 10mm
Hand protection
Beam spacing/gap: 20mm
Arm/Body protection
Beam
spacing/gap: 40mm
|

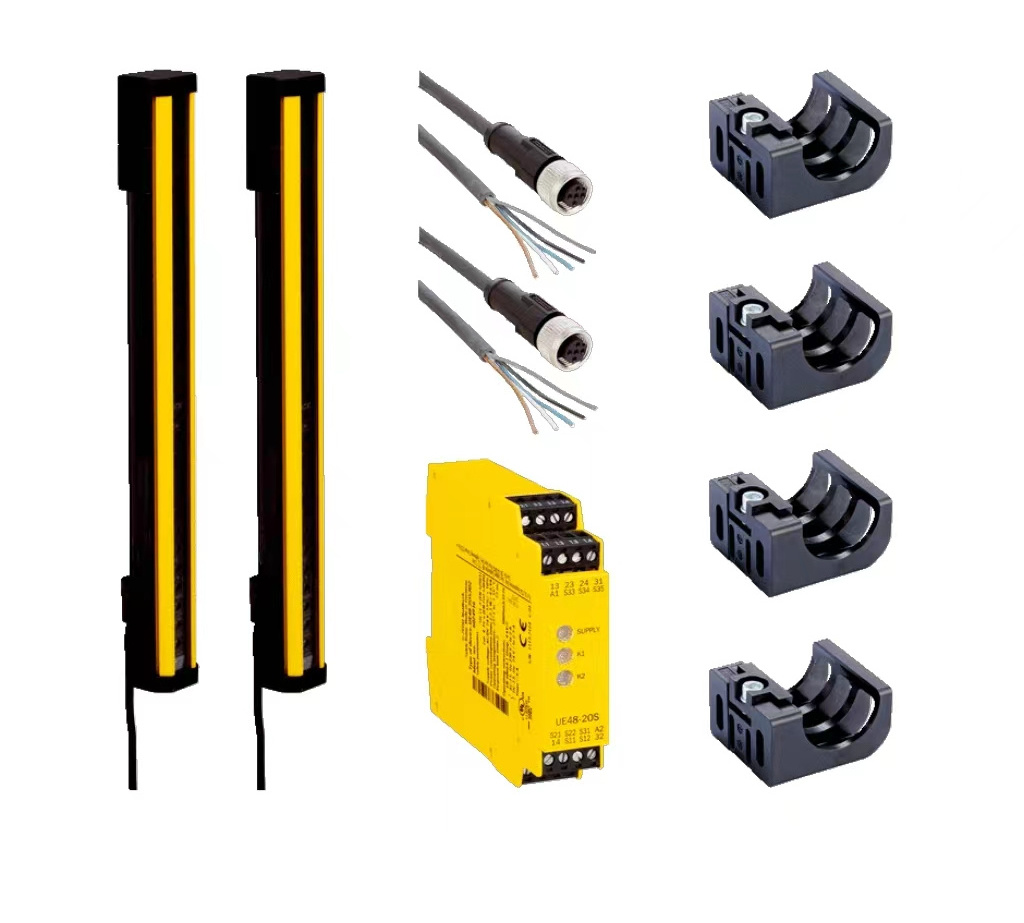

Senmataix--Safety light curtain sensor
|
|
|
|
|||
|
Type:
|
level 4 standard
|
Ultra thin type
|
Universal type
|
|||
|
Protection Level:
|
Class IV standard
|
Universal
|
Universal
|
|||
|
Number of Beams:
|
8-72
|
8-50
|
8-72
|
|||
|
Beam center spacing:
|
10/20/40mm
|
10/20/40mm
|
10/20/40mm
|
|||
|
Cross range:
|
0-5m (can be customized to 30m)
|
0-5m (can be customized to 30m)
|
0-5m (can be customized to 30m)
|
|||
|
Protection height：
|
70-1720mm
|
70-1000mm
|
70-1720mm
|
|||
|
Total height：
|
150-1830mm
|
104-1064mm
|
150-1810mm
|
|||
|
Supply voltage:
|
DC10~30
|
|
|
|||
|
Capacity:
|
< 5W
|
|
|
|||
|
Wave length:
|
940nm
|
|
|
|||
|
Response time:
|
< 10ms
|
|
|
|||
|
Sensing material:
|
Through-beam type
|
|
|
|||
|
Synchronization:
|
Wire synchronization
|
|
|
|||
|
Enclosure material:
|
Aluminum alloy
|
|
|
|||
|
Enclosure rating:
|
IP 65
|
|
|
|||
|
Output Current
|
≤200mA
|
|
|
|||
|
Housing coss-section:
|
35*53mm
|
13*28mm
|
35*53mm
|
|||
|
Working temperature：
|
-10 °C - 60°C
|
|
|
|||
|
Output type:
|
NPN/ PNP
|
|
|
|||
|
Anti-interference:
|
yes 10000lux
|
|
|
|||
Products Description
*
Designed in accordance with
IEC 61496 Class IV
standard.
*Obtained safety
level IV
certification.
*Adopts
MCU redundancy
design: dual MCUs are used internally for detection.
*Adopts self-test cross-mutual detection design: Periodic
double mutual detection
to improve safety.
*
Independent redundant dual outputs
: preventing the failure of a single circuit from causing safety hazards.
*Internal independent dual power supply: Adopt dual power supply to provide power to internal MCU respectively.
*
Strong anti-electromagnetic interference capability
: group pulse interference above 2KV does not affect normal operation.
*
Adopting line synchronization technology
: it can effectively avoid the interference of external infrared light.
