- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M40
-
Product name:
-
M40 Connector
-
Material:
-
PA66(Nylon)
-
Connector type:
-
Bayonet lock
-
Color:
-
Black
-
Plating:
-
Golden Plating
-
Rated voltage:
-
600V
-
Rated current:
-
150A
-
Cable gague:
-
4mm²-25mm²
-
Operating rating:
-
-40℃-+105℃
-
IP rating:
-
IP67
Quick Details
-
Type:
-
XLR
-
Application:
-
Automotive,Power
-
Gender:
-
male + female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jnicon
-
Model Number:
-
M40
-
Product name:
-
M40 Connector
-
Material:
-
PA66(Nylon)
-
Connector type:
-
Bayonet lock
-
Color:
-
Black
-
Plating:
-
Golden Plating
-
Rated voltage:
-
600V
-
Rated current:
-
150A
-
Cable gague:
-
4mm²-25mm²
-
Operating rating:
-
-40℃-+105℃
-
IP rating:
-
IP67
Product Description

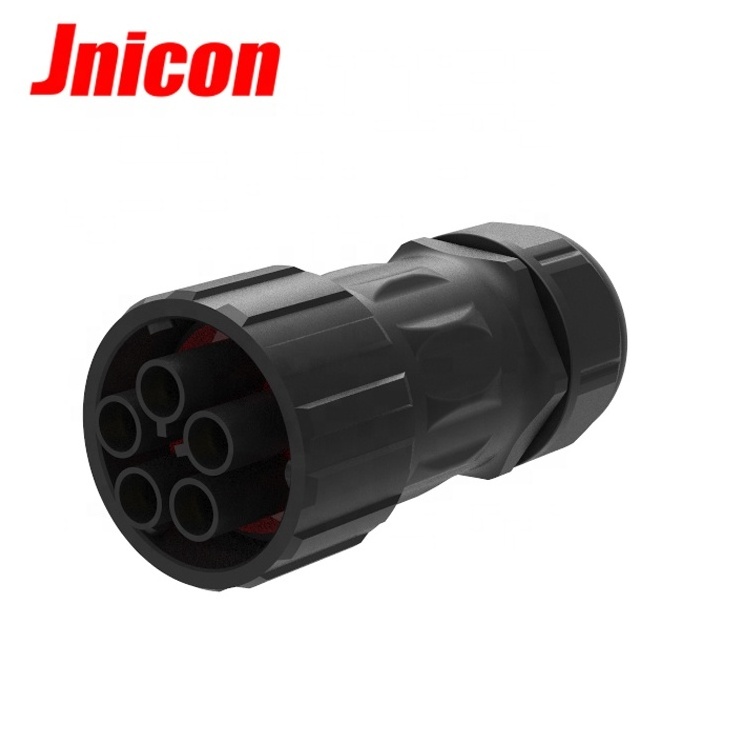

Newest M40 circular female plug and male panel mount connector for trolling motor
Jnicon M40 waterproof connector
(1):
Nylon material
( Advanced structure and good performance)
(2):
Field assembly type
(solder terminal,waterproof rating is IP67).
Customers are free to solder any cable lengths according to their own project requirements.
(3):
Multi-core design
to fit with different industrial demands.
(4):
Crimping terminal,
easy to assemble and strong.
(5):
Gold-plated contact
,stronger corrosion resistance and conductivity.
(6):
Support max.150amp rated current
.
M40 waterproof connector support
2/3/4/5pin
,
widely applied in
new energy,communication,LED lighting, electrical equipment, automation machines
mechanical equipment,solar power equipment,ect.
Product Specification
|
Product Name
|
M40 connector
|
Brand
|
Jnicon
|
|
Current Rating
|
150A
|
Application
|
electrical equipment,industrial
|
|
Voltage Rating
|
600V
|
Certification
|
UL,TUV,CQC,CE, RoHS
|
|
Temperature Rating
|
-40-105℃
|
Warranty
|
3 years
|
|
Waterproof Rating
|
IP67
|
Cable Size
|
10mm2-35mm2(7AWG-2AWG)
|
|
Cable Max. Diameter
|
25mm
|
Connecting Mode
|
Bayonet
|
|
Pin Number
|
5pin
|
Flame-resistant
|
UL94-V0
|
|
Gender
|
Male + Female
|
Durability
|
500 times
|
Product Features
2. Cable color: Black
3. Voltage rating: 600V
4. Easy install, snap fastener locking connection
5. Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions.
6. We manufacture professional
waterproof connector with one-stop production.
Details Images
Product Dimension
Attention!!!
Before quotation
, please kindly provide cable details.
1.Current rating, eg: 3A...
2.Wire size, eg: 2*18AWG(2*1.0mm²)...
3.Cable material, eg: PVC or rubber...
4.Cable length, eg: 200mm each side...
1.Current rating, eg: 3A...
2.Wire size, eg: 2*18AWG(2*1.0mm²)...
3.Cable material, eg: PVC or rubber...
4.Cable length, eg: 200mm each side...
Product Application
MJ32 connectors are
widely applied in new energy,communication,LED lighting, electrical equipment, automation machines mechanical equipment,solar power equipment,ect.
Certifications
Jnicon connectors are approved by
UL,CE,TUV,RoHs,CCC.
