Quick Details
-
Voltage:
-
380V
-
Disc Dia.:
-
NONE
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINDING
-

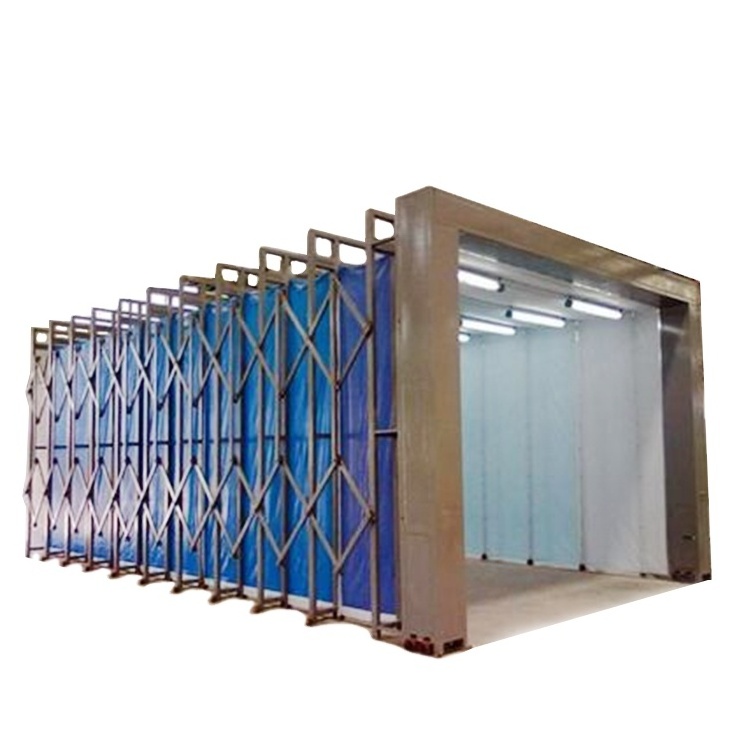

Product name:
-
Retractable spray booth
-
Usage:
-
Car Painting Baking
-
Color:
-
Blue
-
Heating System:
-
Infrared Lamps
-
Lighting System:
-
LED
-
Environmental certificate:
-
CE
-
Product:
-
Automobile Paint Booth
-
Fans kind:
-
Centrifugal Fans CE
-
Filters:
-
High Efficiency Filter
-
Warranty:
-
One Year. Service
Quick Details
-
Power:
-
17.5kw
-
External Size:
-
7000*5000*3200mm
-
Internal Size:
-
6900*3900*2600mm
-
Voltage:
-
380V
-
Disc Dia.:
-
NONE
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINDING
-
Product name:
-
Retractable spray booth
-
Usage:
-
Car Painting Baking
-
Color:
-
Blue
-
Heating System:
-
Infrared Lamps
-
Lighting System:
-
LED
-
Environmental certificate:
-
CE
-
Product:
-
Automobile Paint Booth
-
Fans kind:
-
Centrifugal Fans CE
-
Filters:
-
High Efficiency Filter
-
Warranty:
-
One Year. Service
|
Name
|
retractable paint room
|
auto retractable spray booth
|
|
Outside Size(mm)
|
7000x5200x3200 mm (LxWxH)（customized）
|
/
|
|
Inside Size(mm)
|
6900x3900x2600 mm （customized）
|
/
|
|
Foundation and Floor
|
|
Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
|
|
|
Surface area of foundation
|
10M² (area of grids)
|
|
|
|
350mm height, the ventilation effect is better than traditional spray booth
|
|
|
|
2 units, each size: 2000X1030mm, diamond plate construction
|
|
Wall and door
|
|
Adopt high quality double construction fireproof insulation
EPS panel, thickness: 50mm
|
|
|
3-Folded Entrance Door With Safety Glass Window
|
1 set, size: 3200x2700 mm(W x H), size is bigger than traditional spray booth
|
|
|
Operator’ s Door With Safety Glass Window
|
Big opening: 800x2000mm (W x H), hand-made, tempering glass observation window
|
|
|
Ceiling Lighting
|
8 units, each 4× 36W. Total 1152W, grade of lighting box’ s dustproof and waterproof reach IP54 grade.
|
|
|
Side Lighting
|
8 units, each 2× 36W. Total 576W, grade of lighting box’ s dustproof and waterproof reach IP54 grade.
|
|
|
Brightness
|
≥ 1000 LUX
|
|
|
Pre-filters
|
Grade G2 plate type fiber glass filter
|
|
|
Ceiling Filters
|
EU5 grade high efficient filter
|
|
|
Bottom filter & exhaust filter
|
Fibreglass paint-stop filter
|
|
|
Inlet fan (Direct drive motor)
|
Adopt big impeller turbo fan 7.5KW, 380V, 50HZ, CE
|
|
|
Outlet fan (Direct drive motor)
|
Adopt big impeller turbo fan 5.5KW, 380V, 50HZ, CE
|
|
|
Painting and baking exchange system
|
Solenoid valve+ pressure adjustment control cylinder driven damper exchange
|
|
|
Total fan Capacity
|
20, 000m³ /h
|
|
|
Air Flow Speed in cabin
|
0.23m/s in empty booth, 0.25-0.35m/s in loaded booth
|
|
|
Heating Exchanger
|
Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
|
|
|
Heating Exchange Capacity
|
160KW(180, 000Kcal/H)
|
|
|
Burner Model
|
Adopt Italy RIELLO diesel burner G20(180, 000kcal/H)
|
|
|
Heating time
|
4-6minutes (from20 to 60º C) under baking status, max baking temperature is 80° C
|
|
Control Board
|
Control system
|
Standard Y/Δ step-down start control system
|
|
|
Function
|
Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication
|
Services:
1. OEM ODM service, customized products avalable.
2. 24 hours on line
3. With detailed installation drawing and using manual, especially for new clients or complex spray booth or painting line, vivid CD or door to door service avaiable.
4. One year's guarantee, within this period, if any spare part broken in machine, our factory freely change a new one for you
5. lifelong time freely provide technical support
