9 steps

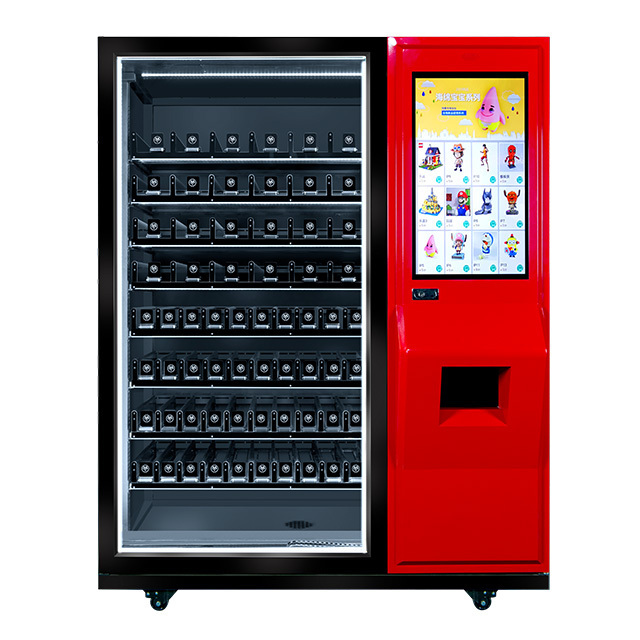

unmanned automatic luxury jewelry beauty vending machines
support single cabinet or double design, Single cabinet 9 aisles *6 layers*10 slots,capacity max 600pcs commodities, 60 kinds of commodities can be vending in one single cabinet snack vending machine.this batch snacks vending machines to Peru Callao,clients install payment system and make second software development by themselves.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9Steps
-
Power:
-
120W
-
Product name:
-
luxury vending machines
-
Payment System:
-
cash and cashless system
-
Color:
-
white
-
Application:
-
9Steps android app
-
Capacity:
-
300-540pcs
-
Certificate:
-
CE FCC ROHS ISO
-
Weight:
-
275kg
-
Touch screen:
-
21.5inch capacitive
-
Cooling system:
-
R134a MSDS refrigeration option
-
Dispenses:
-
smart elevator option
Quick Details
-
Type:
-
Vending Machines
-
Dimension:
-
L1350*W820*H1935mm
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9Steps
-
Power:
-
120W
-
Product name:
-
luxury vending machines
-
Payment System:
-
cash and cashless system
-
Color:
-
white
-
Application:
-
9Steps android app
-
Capacity:
-
300-540pcs
-
Certificate:
-
CE FCC ROHS ISO
-
Weight:
-
275kg
-
Touch screen:
-
21.5inch capacitive
-
Cooling system:
-
R134a MSDS refrigeration option
-
Dispenses:
-
smart elevator option
Product Description
Product Name
|
unmanned automatic luxury jewelry beauty vending machines
|
|
|
Material
|
21.5-55inch touch screen + metal case+cash machine/cashless machine/elevator/refrigeration options
|
|
|
Package
|
exporting wooden case with pallet,package size 1650*910*2100mm,325kg/pc
|
|
|
General Specification
|
Motherboard
|
Android RK3288
|
|
|
RAM
|
2G
|
|
|
Storage Memory
|
8G
|
|
General Specification
|
OS
|
Android /7.1
|
|
|
Network
|
Gigabit Network
|
|
|
Lane
|
Standard 6 rows * 9columns, 54*10 cargo lanes (adjustable)
|
|
|
Slot Capacity
|
About 210pcs-540pcs(adjustable)
|
|
|
Payment Method
|
ICT banknotes cash accpeter+ card pos with NFC fucntion
|
|
|
Subassembly
|
Cash accepter with bill change fucntion
|
|
|
Optional
|
1. Temperature control system: high-efficiency and energy-saving compressor, support timing switch, free control of temperature
2. Printer (optional) 3. Coins and cash modules (optional) 4. Scanner (optional) |
|
Panel Specification
|
Screen
|
21.5 Inch IR touch screen
|
|
|
Screen type
|
TFT-LCD
|
|
|
Backlight Type
|
WLED
|
|
|
Visual Size
|
477mm*269mm(H*V)
|
|
|
Resolution
|
1920*1080
|
|
|
Contrast
|
3000:1
|
|
|
Perspective
|
H:178°, V:178°
|
|
|
Brightness
|
250nits(Non touch),225nits(Touch)
|
|
|
Touch Technology
|
Capacitance Touch
|
|
|
Touch Points
|
10 Points
|
|
|
Operating Voltage
|
DC 5v
|
|
|
Operating Temperature
|
0°C ~ 40°C, 20% ~ 80% RH.
|
|
|
Storage Temperature
|
-20°C~ 60°C, 10% ~ 95% RH
|
|
|
Interface Type
|
VGA , HDMI,USB,LAN
|
|
|
Processor
|
RK3288 Quad Corel.8G
|
|
|
Chipset
|
HZ cortex-A17
|
|
|
Extension Interface
|
Support TF Card expansion
|
|
|
Display
|
GPU Mail-T764
|
|
|
Memory Type
|
Built-in EMMC,Max 64GB Optional
|
|
|
USB Interface
|
2*USB HOST,4*USB Port
|
|
|
Output
|
HDMI Output ,EDP Output, LVDS Output, Audio Output
|
|
|
Timer Switch
|
Support
|
|
|
RTC Clock
|
Support
|
|
|
Printers
|
Support
|
|
|
Scanner
|
Support
|
|
|
Camera
|
Support
|
|
|
Others
|
USB or MDB port
|
Our warranty is 12 month for full warranty,36 month free for tech support,5 years free for software.
AFTER-SALES SERVICE INSTRUCTION
(ONE)Quality Assurance Commitments
1. All the products we provide are guaranteed by rigid quality inspection.
2. Provide prompt replacement or maintenance for software and hardware failures in normal use.
(TWO)After-sales Service Commitments
1. If the products are bought through formal channels,customer will enjoy the standardized, network-based pre-sale, sale and after-sales services and a full range of technical support.
2. Available long-term technical advice.We respond to all questions about the products, and patiently give guidance.If needed, for some major projects, we will appoint a professional engineer to guide on-site.
3. Within product warranty period, both customer and our company will pay one-way freight;If the warranty period is expired, the freight and accessories costs will be paid by customer.
4. A normal warranty period is 12 months.Our company provide free maintenance service for both electronic parts and automatic parts.
But the following circumstances do not belong to the normal scope of the warranty:
(1) Accessories, such as wires, glass part,metal case part,and Other wearing parts;
(2) Fail to use or maintain according to the instructions of the product;
(3) Unauthorized alteration (replacement) of product components or unauthorized maintenance;
(4) Components problems like loss of connectors, serious deformation of the circuit board, broken, line scratches, motherboards corrosion,serious rust and stains;
(5) Artificial damage or other force majeure;
(6) Breakdowns and damages caused during transportation that arranged not by us.
For all the above situations,we charge maintenance and material costs accordingly, and notify the customer to provide maintenance list.
5. In case of the following circumstances, we can exchange the goods or give a refund:
Within a month from the purchase date, our customer service department confirm that the product has quality problems or design defect.
6. Establish customer feedback channels, handle customer complaints AND notify customers.Improve our technical level from all aspects to better serve the customer.
7. We reserve all rights of final explanation..
If there is something wrong with the product, please contact 9Steps service center.
Tel: +86-027-82335055
Email:admin@9steps-group.com
Details Images
The first and second trays to hold big size chips,the second and fourth for big bottle drinks,the fifth and six for cookies or can drinks.
9 steps professional vending machine app for management and control,five years free,another five years 60usd/pc
customized trays and slots for different products inside
high quality products and professional service is 9 steps 16 years style
Packing&Shipping
exporting wooden case with pallet for LCL containers or by air by courier,exporting carton with pallet for FCL containers by sea
FAQ
Do you support customized design/size/functions/wrap? YES
