Atex Explosion Proof fixed Ammonia Gas Detector For Poultry Farm

Atex Explosion Proof fixed Ammonia Gas Detector For Poultry Farm

FOB Reference Price: Get Latest Price

≥2 Pieces

US $180

≥20 Pieces

US $170

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HuaFan

Model Number:: HFT-NH3

Product name:: gas detector NH3 Ammonia

Alarm Type:: Sound+Light Alarm(Optional)

Sensor:: Electorchemical

Certificate:: CE ATEX

Response time:: T90<30s

Explosion proof:: Exd II CT6

Signal output:: 4-20mA/RS485

Power supply:: 24VDC

Measure Range:: 0-200ppm

Resolution:: 1ppm

Quick Details

Type:: Fixed

Warranty:: 1Year

Place of Origin:: Shaanxi, China

Brand Name:: HuaFan

Model Number:: HFT-NH3

Product name:: gas detector NH3 Ammonia

Alarm Type:: Sound+Light Alarm(Optional)

Sensor:: Electorchemical

Certificate:: CE ATEX

Response time:: T90<30s

Explosion proof:: Exd II CT6

Signal output:: 4-20mA/RS485

Power supply:: 24VDC

Measure Range:: 0-200ppm

Resolution:: 1ppm

Products Description

Atex Explosion Proof fixed Ammonia Gas Detector For Poultry Farm

The fixed gas detector can measure single gas like NH3,CO,H2S,O2,CH4 and other gases. with an audible & visual alarm the gas transmitter will make alarms when gas concentration exceed a certain value.Can transfer signal to a detection panel through 4-20mA analog signal output.

Brief Introduction:

● UK imported sensors

● High accuracy and sensitivity

● High & low alarm points

● 4-20mA and RS485 optional

● Water and dust proof

● Aluminum shell material

● Industrial explosion-proof
● CE,ATEX,ISO approved
● One year warranty

Product Paramenters

Product name	Atex Explosion Proof fixed Ammonia Gas Detector For Poultry Farm
Size and weight	14419091mm, 1335g
Sensor types	electrochemistry method
Destination gas	NH3/CH4/O2/H2S/CO
Measure range	0-100%lel / 0-30%VOL/0-200ppm/0-1000ppm
Working voltage	DC24V
Display	LED display(No display and LCD display are optional)
Alarms	Interlligent sound and red light alarms need extra 20$
Output signal	4-20mA (RS485 digital signal is optianal)
Output way	three wire system can output a set of relay switch signal
Temperature range	- 20 ℃ ~ 50 ℃
Humidity	15% ~ 90% RH (No condensation)
Explosion-proof number	CE10 1084
Explosion-proof marks	Exd II CT6
Transmission cables	three-wire system adopts three core shielded cable 3 x 1.5 mm2
Transmission distance	＜ 1000 m
Certificate	CE, ATEX, CNEX, ISO9001
Standard package	Gas detector, Instruction in English, Certificate, carton package
Optional	sound and light alarm light, multi gas alarm controller

Details Images

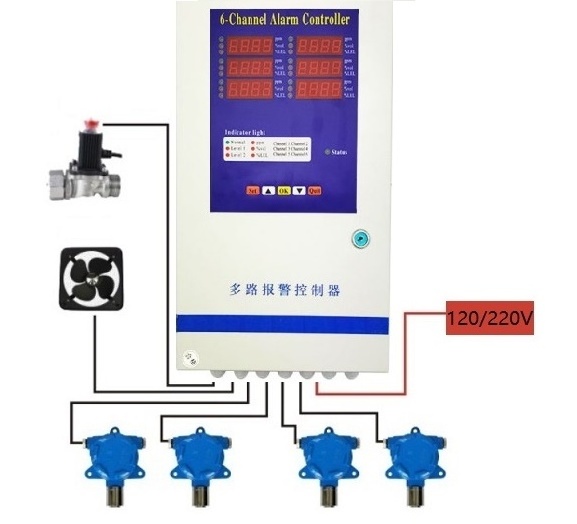

The fixed gas alarm detector is usually used together with gas alarm controller,t he gas sensor is installed at the gas leakage point to detect the gas concentration in a short distance.The gas controller is installed in the monitoring room or outdoor. When the field gas concentration leaks and reaches the alarm point, the hydrogen analyzer sends a signal to the gas controller. The controller will react quickly and send out an audible and visual alarm, which can effectively avoid the occurrence of accidents in time.

Certifications

Our fixed H2S CH4 detector has industrial production standards and international export standards， We focus on the production of products that meet the standards to provide the greatest guarantee for industrial safety.

Product Features

1) Imported UK sensitive sensor; 2) Water proof,dust proof and explosion proof; 3) Low and high alarm points,can be set by user ; 4) DC24V power supply,24hours continuous monitoring ; 5) 4-20mA output,RS485 digital output are optional ; 6) Adopts aluminum shell material with high strength, heat resistance and corrosion resistance;

7) ISO9001,CE, ATEX,CNEX explosion proof certificates are approved;

Related gas detector

Application & Cases

This fixed hydrogen gas detector is suitable for detecting the concentration of CO in ambient air, widely used in laboratory ,chemical industry,mines, tunnels, underground pipelines and other places, to effectively prevent the occurrence of poisoning.
