Quick Details
-
Brand Name:
-
UMOT
-
Material:
-
Bearing steel
-
Product name:
-
Gantry robot XYZ table
-
Effective Stroke:
-
50-1000mm
-
Positioning Accuracy:
-
±0.05
-
Width:
-
40mm/60mm/80mm/120mm(customized)
-
Screw Precision Grade:
-
C7
-
Stepper Motor Type:
-
Nema 23
-
Stepper Motor Driver:
-
as to your requirements
-
Controller:
-
as to your requirements
-
Application field:
-
3D printer automated production line robotic arm plasma detector
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Model Number:
-
SW40 gantry robot XYZ slide table
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
UMOT
-
Material:
-
Bearing steel
-
Product name:
-
Gantry robot XYZ table
-
Effective Stroke:
-
50-1000mm
-
Positioning Accuracy:
-
±0.05
-
Width:
-
40mm/60mm/80mm/120mm(customized)
-
Screw Precision Grade:
-
C7
-
Stepper Motor Type:
-
Nema 23
-
Stepper Motor Driver:
-
as to your requirements
-
Controller:
-
as to your requirements
-
Application field:
-
3D printer automated production line robotic arm plasma detector

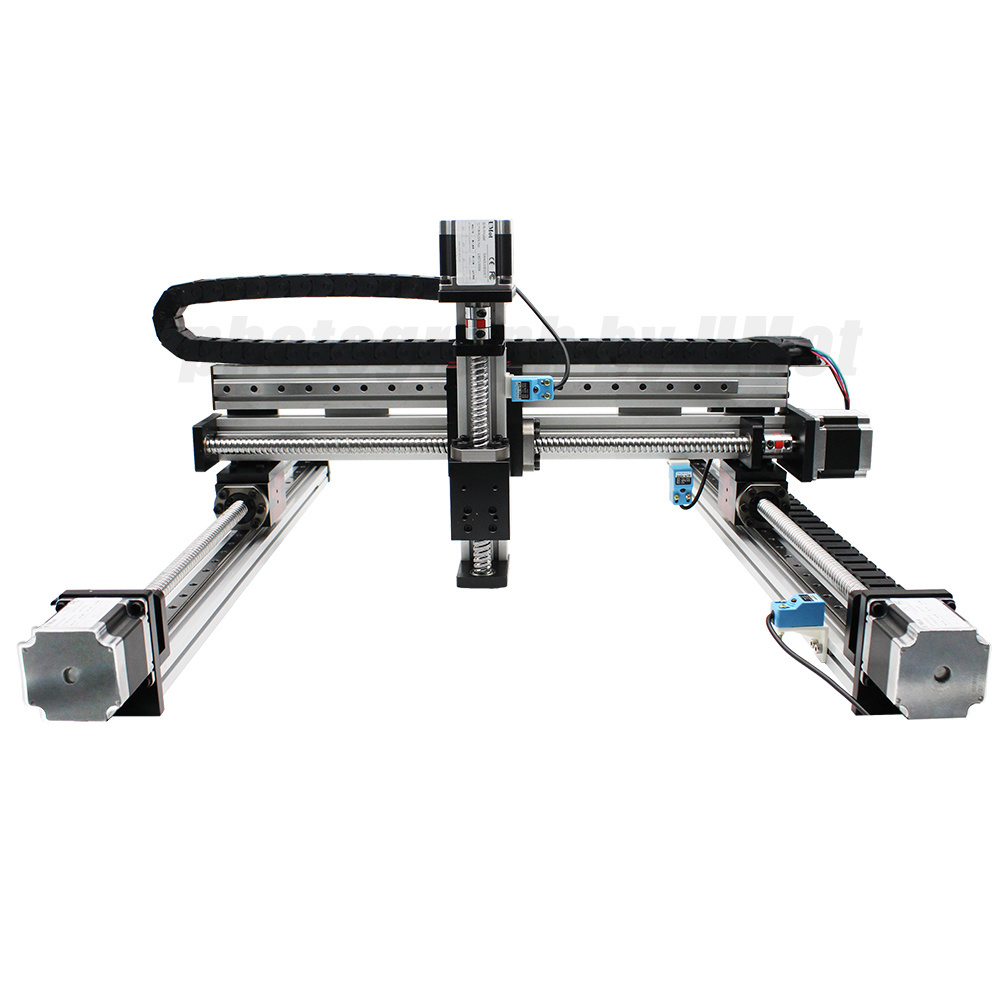

DIY cartesian robot xyz slide table robot with ball screw drive motorized linear actuator 50-1000mm length z axis customized
UMot stable XYZ linear stage cartesian robot 4-axis ball screw driven linear axis is customized product. The max travel length we can do is from 50mm to 1000mm. Please contact us to customize your linear guide rails.
Discount will be given to you if you leave a message to us.
Product Description
| Brand Name | UMot |
| Guide Width or Diameter | 40mm |
| Model Number | SW40 |
| Effective Stroke | 50-4000mm |
| Position Accuracy | 0.05mm |
| Screw Precision Grade | C7 |
| Max thrust | 471N |
| Stepper Motor Type | Nema 23 |
| Max Honrizontal Loadings | 25kg |
| Max Vertical Loading | 15kg |
| Max Honrizontal Full Speed | 230mm/s |
| Max Vertical Full Speed | 90mm/s |
| Rated Acceleration | 500mm/s² |
| Limit switch | 2 for free |
| Application field | 3D printer automated production line robotic arm plasma detector |
| Applicable industry | medical equipment spraying equipment automatic welding series |
Description&Feature
Packaging & Shipping
Packaging: carton / wooden box + foam + waterproof membrane
Delivery method: Fedex IE/UPS
Our Services
Pre Sales Service
Inquiry and consulting support
Sample testing support
Factory visiting
After Sales Service
Free drawing and free software
Training how to use the products
Engineers available to offer technical supports overseas
