Quick Details
-
Insulation Material:
-
PE
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhui
-
Model Number:
-
BV
-
Color:
-
as your request
-
Insulation:
-
PVC
-
Jacket:
-
PVC
-
Material:
-
Oxygen free copper
-
Rated Voltage:
-
450/750v
-
Product name:
-
pvc house wiring electrical cable
-
Size:
-
1.5 mm 2.5mm 4mm 6mm 16mm 10mm
-
Length:
-
customed
-
Packing:
-
Roll
Quick Details
-
Application:
-
Construction, Building, construction, industrial
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid conductor
-
Insulation Material:
-
PE
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhui
-
Model Number:
-
BV
-
Color:
-
as your request
-
Insulation:
-
PVC
-
Jacket:
-
PVC
-
Material:
-
Oxygen free copper
-
Rated Voltage:
-
450/750v
-
Product name:
-
pvc house wiring electrical cable
-
Size:
-
1.5 mm 2.5mm 4mm 6mm 16mm 10mm
-
Length:
-
customed
-
Packing:
-
Roll
Product Description
Specification

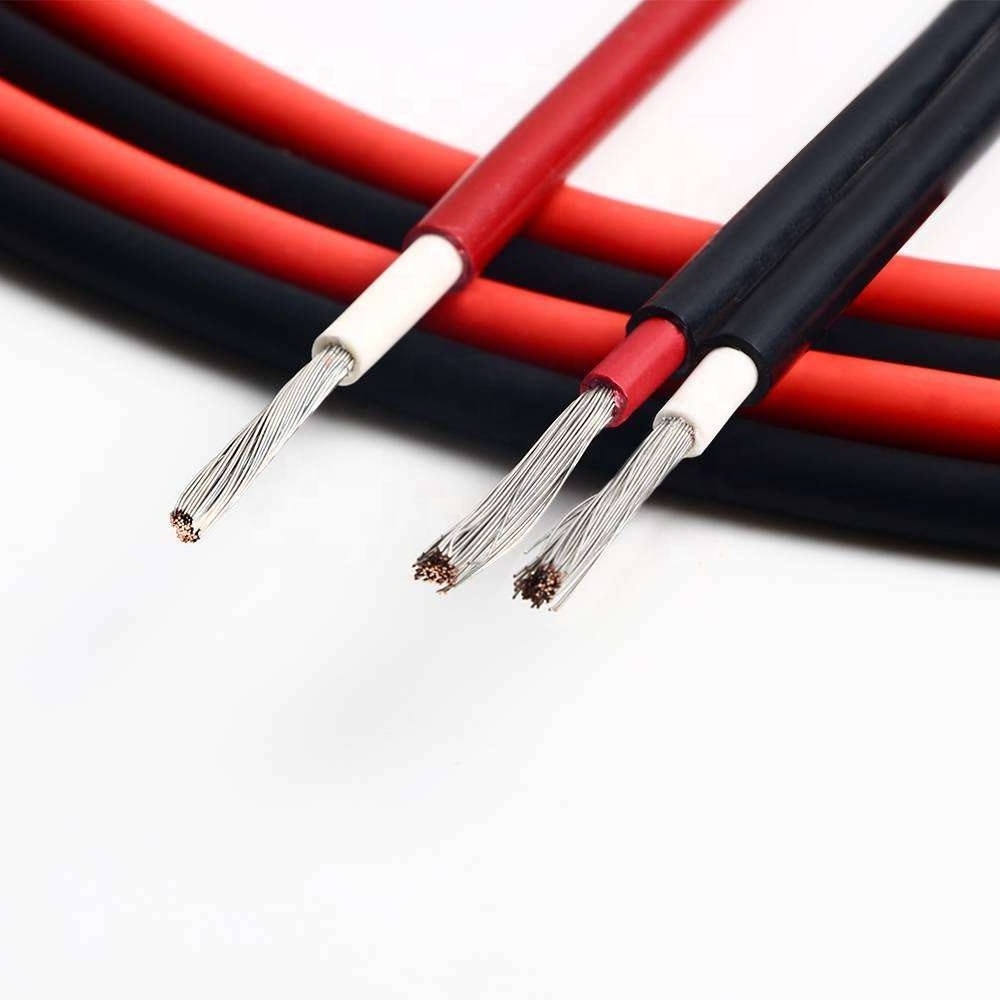

PV-1F Solar Photovoltaic Cable
PV-1F Solar Photovoltaic CableFeatures: Low smoke halogen free flame retardant, excellent cold resistance, UV resistance, ozone
resistance and weather resistance. Resistant to cuts and penetrations.
Ambient temperature: -40°C-+90°C;
maximum conductor temperature 120°C (allowable short-circuit temperature of 200°C within 5s).AC0.6/1kV DC1.8Kv.
Design life: 25 years
Conductor: GB/T3956 class 5 stranded tinned conductor.
Insulation: Low-smoke halogen-free flame retardant cross-linked polyolefin double-layer insulation.
Sheath: Low smoke halogen free flame retardant cross-linked polyene sheath color black and red. The structure is shown in the
table below
resistance and weather resistance. Resistant to cuts and penetrations.
Ambient temperature: -40°C-+90°C;
maximum conductor temperature 120°C (allowable short-circuit temperature of 200°C within 5s).AC0.6/1kV DC1.8Kv.
Design life: 25 years
Conductor: GB/T3956 class 5 stranded tinned conductor.
Insulation: Low-smoke halogen-free flame retardant cross-linked polyolefin double-layer insulation.
Sheath: Low smoke halogen free flame retardant cross-linked polyene sheath color black and red. The structure is shown in the
table below
|
Cross-sectional area mm2
|
Monofilament diameter mm / number of pieces
|
conductor outer diameter mm
|
Insulation thickness mm
|
Sheath thickness mm
|
Finished outer diameter mm
|
Approximate weight of finished product km/kg
|
|
1.5
|
0.25/30
|
1.6
|
0.5
|
0.5
|
3.6-4.0
|
32.33
|
|
2.5
|
0.25/49
|
2.1
|
0.5
|
0.5
|
4.1-4.4
|
36.82
|
|
4
|
0.30/56
|
2.6
|
0.7
|
0.7
|
5.4-5.7
|
67.89
|
|
6
|
0.30/84
|
3.2
|
0.7
|
0.7
|
6.5-6.9
|
75.44
|
|
10
|
0.40/80
|
4.1
|
0.8
|
0.7
|
7.1-7.5
|
95.64
|
|
16
|
0.40/126
|
5.2
|
0.8
|
0.7
|
8.2-8.7
|
110.46
|
|
25
|
0.40/196
|
6.5
|
1
|
0.9
|
10.3-10.7
|
175.75
|
|
35
|
0.40/276
|
7.7
|
1
|
0.9
|
11.5-12.5
|
196.22
|
