Quick Details
-
Hot Dip Galvanized standard:
-
ASTM A123, AS1650, GB/t13912-2002
-
Certification:
-
ISO 9000/9001/9004/19011: 2000
-
Grating Specification:
-
19-w-4, 15-w-2, 30/100, 40/50, 60/100 and all
-
Application:
-
Industrial platform, flooring and walkway traffic, steel structure
-
Surface Treatment:
-
Galvanized, painting, self-colour or untreated
-
Grating Steel Material:
-
Low carbon steel, mild steel, stainless steel
-
Type:
-
Plain bar grating, Serrated bar grating, I-shape grating
-
Market:
-
America, Europe, Australia, Mid-east, Africa, Asia
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
Steel
-
Grating Standard:
-
YANSI/NAAMM(MBG531-88),B/T 4001.1-2007,BS4592-1987,AS1657-1985
-
Hot Dip Galvanized standard:
-
ASTM A123, AS1650, GB/t13912-2002
-
Certification:
-
ISO 9000/9001/9004/19011: 2000
-
Grating Specification:
-
19-w-4, 15-w-2, 30/100, 40/50, 60/100 and all
-
Application:
-
Industrial platform, flooring and walkway traffic, steel structure
-
Surface Treatment:
-
Galvanized, painting, self-colour or untreated
-
Grating Steel Material:
-
Low carbon steel, mild steel, stainless steel
-
Type:
-
Plain bar grating, Serrated bar grating, I-shape grating
-
Market:
-
America, Europe, Australia, Mid-east, Africa, Asia

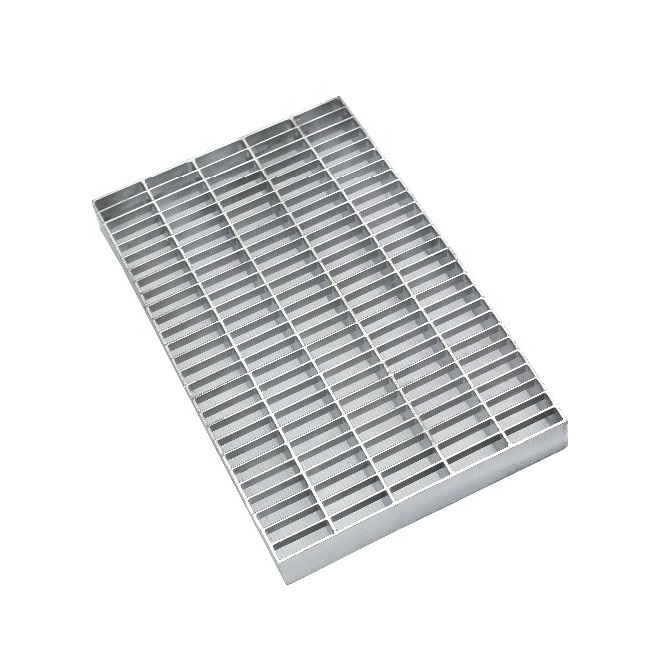

Stainless Steel Sidewalk Drain Grate
1 > Stainless Steel Sidewalk Drain Grate Characteristics:
Trench cover light weight, H igh bearing capacity, Safe , Skid-proof, Easily fixed and dismantled, economical , Long life and durable, V entilated and penetration of light, Easily to be cleaned, Beautiful in appearance.
2> Stainless Steel Sidewalk Drain Grate specification
|
Spacing
|
Distance of Bar |
Load Steel Size ( Width ×Thickness) |
|||||
|
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
||
|
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
|
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|
|
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
|
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|
|
60 |
50 |
- |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
|
Spacing
|
Distance of Bar |
Load Steel Size (Width ×Thickness) |
|||||
|
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
||
|
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
|
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
|
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
|
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
|
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
3> Stainless Steel Sidewalk Drain Grate Material: T rench cover product by stainless steel plate, mild steel plate
4> Stainless Steel Sidewalk Drain Grate surface treatment : Untreatment or Galvanized or Paint spray
5> Stainless Steel Sidewalk Drain Grate Application: Trench cover Widely used in Electricity, petrochemical, Chemical industry, M etallurgy, Machines, Modeling, Port, Marine engineering, Construction, Papermaking, Medicine, Textile, Well cover, Suspended ceiling, Ventilation and penetration of light, etc
6> Stainless Steel Sidewalk Drain Grate Packaging Detail: Trench cover packing by bareness, pallet or according to the customers' requirements
According to structures, it can be calssified to GT, GU & GM three types:
1, GT trench cover
GT trench cover is suitable for the roads which are not crowed, Screw fixing is recommended to avoid danger. This kind of trench cover is used on T shape ditch, with angle steel seating frame.
2, GU Trench Cover
Regarding most concrete groove without edge. It would be very simple and economical to use GU trench cover for there is no special requirement to groove edge. It's suggested that angle steel shoud be filledin uper edge. If the loads are T-6 and T-14. The U trench prfab blocks are also available to prevent dirty water to leak into earth. But GU trench cover is just suitable for side ditch when a car need to cross it.
3, GM Drainage Pit Cover
GM drainage cover usually use the grating with 50mm cross bar pitch to enhance the impact resistance.
