Quick Details
-
Power:
-
2-5kw
-
Min. Lifting Height:
-
1m
-
Table Size:
-
1.8 x2.5 m
-
Overall Dimensions:
-
2.3x2.1x2.1 m
-
Weight:
-
2 kg
-
Product name:
-
45ft 50ft Battery Power Hydraulic Scissor Man Lift
-
Keywords:
-
12m Lifting Height Manual Scissor Lift
-
Capacity:
-
320-480kg for 12m Lifting Height Manual Scissor Lift
-
Lift height:
-
6-16 meter for 12m Lifting Height Manual Scissor Lift
-
Operation way:
-
Ground and platform operate
-
lift drive mode:
-
Electric motor with hydraulic system
-
Application:
-
Aerial Construction Work
-
Control methods:
-
remote control for 12m Lifting Height Manual Scissor Lift
-
Power source:
-
AC 220v for 12m Lifting Height Manual Scissor Lift
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sino
-
Power:
-
2-5kw
-
Min. Lifting Height:
-
1m
-
Table Size:
-
1.8 x2.5 m
-
Overall Dimensions:
-
2.3x2.1x2.1 m
-
Weight:
-
2 kg
-
Product name:
-
45ft 50ft Battery Power Hydraulic Scissor Man Lift
-
Keywords:
-
12m Lifting Height Manual Scissor Lift
-
Capacity:
-
320-480kg for 12m Lifting Height Manual Scissor Lift
-
Lift height:
-
6-16 meter for 12m Lifting Height Manual Scissor Lift
-
Operation way:
-
Ground and platform operate
-
lift drive mode:
-
Electric motor with hydraulic system
-
Application:
-
Aerial Construction Work
-
Control methods:
-
remote control for 12m Lifting Height Manual Scissor Lift
-
Power source:
-
AC 220v for 12m Lifting Height Manual Scissor Lift
Product Exhibition

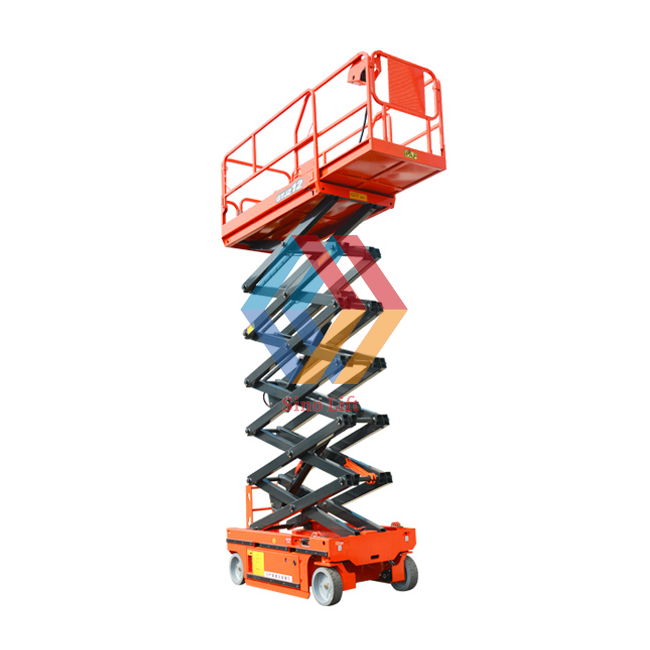

CE ISO customized automatic 6m mobile hydraulic drive self propelled 12m battery scissor lift (4-14m)
Self Propelled Electric Joystick 100-450Kg Scissor Lift Platform by Hydraulic driven
mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The self moving aerial work platform is equipped with US brand Trojan batteries.
With the battery, it can realize its automatic operation, for one person to operate at the platform for going backward,forward, turning, even at its maximum height.
With the battery, it can realize its automatic operation, for one person to operate at the platform for going backward,forward, turning, even at its maximum height.
|
Model
|
Platform height
|
Platform capacity
|
Platform extend
|
Power source
|
Platform size
|
|
GTJZ-6A
|
6m
|
380kg
|
0.9m
|
Battery
|
2.26*0.81m
|
|
GTJZ-6
|
6m
|
550kg
|
0.9m
|
Battery
|
2.26*1.13m
|
|
GTJZ-8A
|
8m
|
230kg
|
0.9m
|
Battery
|
2.26*0.81m
|
|
GTJZ-8
|
8m
|
450kg
|
0.9m
|
Battery
|
2.26*1.13m
|
|
GTJZ-10
|
10m
|
320kg
|
0.9m
|
Battery
|
2.26*1.13m
|
|
GTJZ-12
|
12m
|
320kg
|
0.9m
|
Battery
|
2.26*1.13m
|
|
GTJZ-14
|
14m
|
227kg
|
0.9m
|
Battery
|
2.26*1.13m
|
Products Advantages of CE ISO customized automatic 6m mobile hydraulic drive self propelled 12m battery scissor lift
* Compact and flexible
Most models are equipped with zero-radius turning system , can be easily and flexibly operated in crowed spaces , such as cramped buildings , elevator and narrow corridor , etc . Up-down , left-right , forward-backward, turning , movements can be easily operated by one person.
* Easy maintaining
Random fault diagnosis system can immediately detect the faults , can be repay type battery trays make it easy to repair the power generator.
*The min clearance control of chassis
When lowered the platform, chassis can reach 100 mm minimum clearance from the ground, to ensure that the platform as a whole has a strong through, when the platform rises chassis ground decreased to 19 mm minimum clearance automatically by the intelligent control, to ensure the safety of the chassis while working stability.
* Emergency descent system
High quality and high precision pressure relief valve cylinder, under a state of emergency (such as electricity) can make the
platform steady fall easily, to ensure the safety of the staff of life.
*Proportion of intelligent control
Reduce the wiring harness, reduce energy losses, make smooth control accuracy.
*Slope protection system
Intelligent design of the machine, the platform in potholes, the tilt or uneven ground in intelligent protection condition, ensure the life safety of the operator.
*Simple platform control equipment
Human nature of easy to use control panel, provide efficient and sensitive operation experience.
