- Product Details
- {{item.text}}
Quick Details
-
Dimensions(L*W*H):
-
650*620*1380
-
Weight:
-
85 KG
-
Product name:
-
Custom Vibrating Disk Pad Printing Machine 1 Color For Pencil Shoe
-
After-sales Service Provided:
-
Online support Free Spare Parts Video Technical Support
-
Printing Speed:
-
2000pcs/hr Fast High Speed Digital Control hot sale big factory sell
-
Printing color:
-
1 2 3 4 6 8 Color Customize Custom Single One Two Four Double color
-
MAX printing size:
-
65-120 MM Any size Custoimize promotion promotional good cheap price
-
Plate size:
-
100*200mm 100*250mm sealed closed ink cup
-
Application:
-
Printing Logo Printing Materials Bottle Small Logo Print Rulers Pencil
-
Application area:
-
Laber Hardware Kinds Electronic Toys Pens Elctronic Products Plastic
-
Operation:
-
Pneumaitc Easy Operation Electricty industry print famous brand design
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Juste
-
Voltage:
-
220V/110, AC110V/220V 220 220V customize conveyor shuttle auto 360 degree
-
Dimensions(L*W*H):
-
650*620*1380
-
Weight:
-
85 KG
-
Product name:
-
Custom Vibrating Disk Pad Printing Machine 1 Color For Pencil Shoe
-
After-sales Service Provided:
-
Online support Free Spare Parts Video Technical Support
-
Printing Speed:
-
2000pcs/hr Fast High Speed Digital Control hot sale big factory sell
-
Printing color:
-
1 2 3 4 6 8 Color Customize Custom Single One Two Four Double color
-
MAX printing size:
-
65-120 MM Any size Custoimize promotion promotional good cheap price
-
Plate size:
-
100*200mm 100*250mm sealed closed ink cup
-
Application:
-
Printing Logo Printing Materials Bottle Small Logo Print Rulers Pencil
-
Application area:
-
Laber Hardware Kinds Electronic Toys Pens Elctronic Products Plastic
-
Operation:
-
Pneumaitc Easy Operation Electricty industry print famous brand design
Products Description

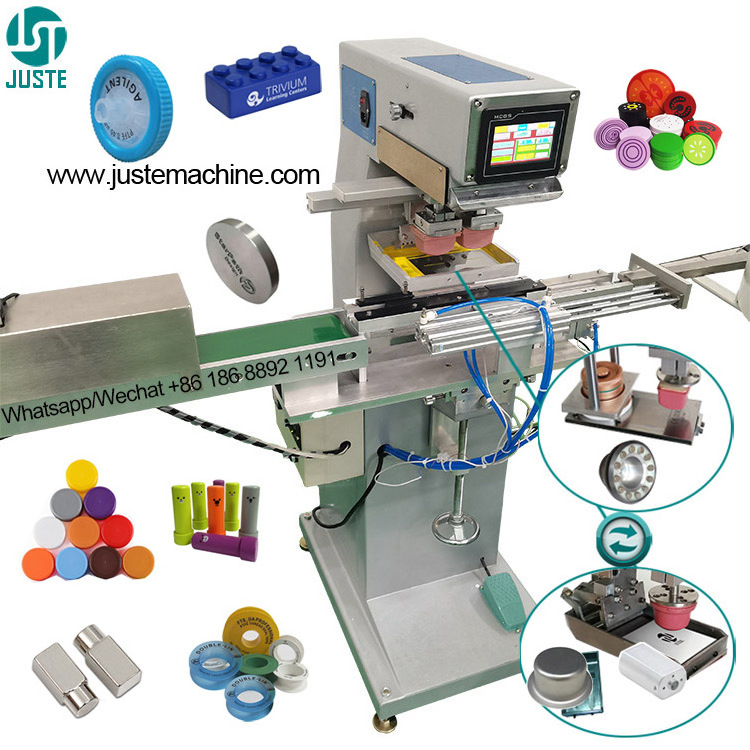

Custom Pad Printer Sanitary Servo Shutter Parts Pad Printing Machine With Vibratory Bowl Feeder For Pencil Satellite Deep Dish
Full Auto Pad Printer Specification:
|
Brand
|
Juste
|
|
Model
|
JST-VP-T125
|
|
Type
|
Ink Cup / Ink Tray / Customize
|
|
Print color
|
Customize
|
|
Dynamic type
|
Pneumatic
|
|
Ink cup diameter
|
Φ90mm
|
|
Max plate size
|
100*200mm / 100*250mm
|
|
Max print size
|
50*70mm / 60*120mm / Customize
|
|
Pad Slide distance
|
110mm / 160mm / Customize
|
|
Printing speed/hr
|
500-2500
|
|
Operation
|
Full Automatic
|
|
Pad Printer Size
|
650x620x1380MM
|
|
Vibratory Feeder Size
|
Customize
|
|
Vibration frequency
|
Customize
|
|
Pad Printer weight
|
85KG
|
|
Vibratory Feeder Weight
|
Customize
|
|
Air pressure(bar)
|
4-6
|
|
Wattage
|
20-50W
|
|
Power
|
220V/ 50HZ-110V/60HZ
|
Products Details Images
What is V
ibratory Feeder?
A vibratory feeder is a conveying system designed to feed components or materials into an assembly process using controlled vibratory forces, gravity, and guiding mechanisms that position and orient materials. They have accumulation tracks of various widths, lengths, and depths, which are carefully chosen to fit the needs of the application, material, component, or part.
The goal of vibratory feeders is to move, feed, and convey bulk materials while using various forms of vibrations so that the materials are properly oriented for addition to a production line. They are a highly efficient method for increasing the speed of assembly operations and gently separating bulk materials. The guided movement produced by a vibratory feeder is dependent on horizontal and vertical accelerations that produce the exact amount of force needed to put materials in position.
The accumulation track of a vibratory feeder, which can be linear or gravity, slows feeder vibrations and assists in directional movement. Drive units can be piezoelectric, electromagnetic, or pneumatic motors that supply the vibrations, rotation, and necessary force.
Vibratory Disk Feeder
Vibratory Disk Feeder
Vibratory Bowl Feeder can be customize
Full Automatic Feeding Products, Release Your Hand.
Printing More Fast And Can Save More Worker Salary.
Mouse Pad Printer
with Ink Drying Oven
Pad Printer with automatic Ink Drying Oven
After Printing, Drying Ink Full Automatic, No Need To Buy IR Tunnel. You Can Save Time And Cost.
Wheel Pad Printer Air Dryer
High Quality Air Dryer To Protect Air Cylinder And Solenoid Valve.
Extend the life of the machine
Glove Pad Printer
Control Unit
With Blade Pad Air Pressure Smooth adjustment Button
Candy Pad Printer internal display
Use High Quality Parts To Make Sure Machine Long Life.
Tinte Pad Printer
with
spare parts
C
hoiceness
Top Brand SMC Solenoid Valve To Make Sure Machine Can Use Long Time No S
tuck.
Small Pad Printer
Ink System
Open Ink Tray Or Closed Ink Cup For Your Choice.
Small Pad Printer
Pannel
With Easy to operate pannel
Large Pad Printer
Adjust
Silicone Pad Depth
To Fit More Products
Sale Pad Printers
Ink Cup
Ink Cup Position Can Be Adjustable.
Sealed Ink Cup Advantages
1: The wolfram steel scraper used on the sealed cup pad printers.
2: It can be used for almost 5,000,000 times with a degree of HRC63 of the hardness.
3: Sealed cup are more environmental and can save more ink if compare with the traditional ink tray.
4: Sealed cup pad print can save 55% ink and 80% thinner comparing with open ink tray pad printing machine.
5: Close ink cup has high quality, beautiful shape, small, easy operateing, acceptable environment friendly.
Cliche Pad Printer
In Stock
Available In Stock Ready To Ship
Rubber Pad Printer
Available In Stock
Available In Stock Ready To Ship
Pencil Pad Printer
Need Consumables
You have to purchase below consumables separately
Pre-press equipment: Air compressor, Steel Plate, Silicone Pad, Fixture(jig)
Post-Press equipment: UV curing machine or IR tunnel
Consumables: UV ink, Plastisol Ink, Ink thinner
Bottles Pad Printer Introduction
Juste Printing Machine Application Area
Food and beverage, Toys, Mask Protective Equipment, Tableware,
Beauty Makeup products, Sports equipment, Lights & lighting,
Electronic products, Washing and Cleaning products,
Household appliances, Textiles and clothing,
Communication equipment, Auto Motorcycle parts,
Medical equipment, Energy equipment, Semiconductor industry.
Such as Products for glassess, lense, pen, PVC ball, mug, toy, doll eye, sun glass,
gift item, T-shirt, baby cloth, bra, eyeglass, toys, umbrella, underwear,
fruit apple, shoe, insole, watch dial number, garment, face mask,
plastic cap, safety helmet, hard safe hat, metal lens industry fabric etc.
Packaging & Shipping Term
Ceramic Pad Printer Inside packaging
Machine will be Packing with waterproof shrinking film in several layers and 360 degree surround. To ensure the machine is 100% clean when customer unpack it.
Lighter Pad Printer Outside packaging
Printing Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden. It is strong fix wooden case for sea shipment.
Pad Printer Machine
Loading To Containers
Printing Machines will be well packed in tri-ply wooden box then load to container and shipped by sea/by air, as your requested.
Plastic Pad Printer
Shipping Term
Depend Your Requested by DHL/UPS/TNT/FEDEX express, Sea shipping
Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Company Introduction
Shenzhen Juste Machine Co., Ltd.
Juste Machine established in 2002, We are a professional manufacturer in the development Automated machine, Printing machine, Pad Printers, Pad Printing Machine, Screen Printers, Spay Painting Machine, IR Tunnel Dryer, Heat Transfer Machine, UV Curing Machine, Post-Press Equipment, Pre-Press Equipment, Heat Press Machines, Printing Machinery Parts, tshirt printing machine, cup printing machine, etc
What Can We Do?
We are specialized in customize automatic machine, printing machines, silk screen printing machine, Pad Printing Machine, automatic spray painting machine, UV curing machine, IR hot tunnel dryer, Pre-Press Equipment, logo printing machine. Welcome to place customize order. Or tell us your idea or demand, Our engineer can help you that develope new machine to fit and solve your demand. Such as: Size, Function, Color, Speed Any demand if you want.
About Juste Printing Machine Sales Team
Our sales team has more than 20 years of marketing and export experience. Your question will quickly reply and solve the problem and offer you the best service.
About Juste Printing Machine Service
Pre-sale service: We provided video outgoing-inspection and manual instructions for machine operation. All machines must be passed by our QA inspection department before shipping.
After-sales Service Provided Warranty: 1: All machine guaranteed 1 year for free and maintain is lifelong. 2: If there is damaged parts within guarantee period, will send you new parts for free by express
About Juste Printing Machine R&D Department
Professional R&D department has 10 engineers with more than 20 years of experience in Automated machine, Pad Printers, Screen Printers, Spay Painting Machine, Post-Press Equipment, IR Tunnel Dryer, Heat Transfer Machine, t shirt printing machine, UV Curing Machine, cloth printing machine, t-shirt printing machine.
About Juste Printing Machine Certification
All Machine with high quality and certification of CE, ROHS, EMC, FCC, ISO9001.
About Juste Printing Machine Main Markets
Our Machine are hot selling in the America, Europe, Vietnam, Bangladesh, Japan, India, Israel, Thailand, Turkey, France, Germany, UK, South America, Brazil, North America Canada, Australia, Asia, Chile, Colombia, Portugal, Spain, Greece, Pakistan, Malaysia, Korea, Middle East, etc all worldwide.
How To Order?
How To Place customize
Voltran Pad Printer
order ?
1: Please send us an email or contact us via WhatsApp, Wechat, TM, MSN, SKYPE.
2: Then let us know the pad printing machine model/quantity/color/Function/Speed All demand you want.
3: Our engineer will estimate machine price as your demand
4: We will make PI (Proforma Invoice) for you.
5: Pay the payment to us after you confirmed the P/I.
6: After all info confirmed, we will booking material then assemble machine.
7: Our QA department will inspect before shipping when printing machine ready.
8: We provided video outgoing-inspection and manual instructions for machine operation
9: Goods will be ship out after that printing machine passed testing if all function no problem.
10: You will get the goods about 10-30 workdays to depend on express actual speed.
FAQ
Q1.Are you a manufacturer?
1. Yes, we are an experienced Printing machine, Pad Printing Machine, Screen Printers, Heat Press Machines manufacturer.
Q2: Can we put our brand(logo) on the Machine?
Yes, we can do print your brand(logo) on the printing machine.
Q3: What is your delivery port?
Our nearest port is in Shenzhen China.
Q4: Where is your pad printing machine factory located?
Our printing machine factory is located in Dongguan, near Hong Kong.
Q5: Do you offer a guarantee for the
Desktop Pad Printing Machine
?
Yes, we offer 1 Year guarantee for the
Desktop Pad Printing Machine
.
Q6: How does your factory do quality control?
Re: We provided video outgoing-inspection and manual instructions for machine operation.
All machines must be passed by our QA inspection department before shipping.
